DUAL TECH 2.0 - DTH2 SERIES

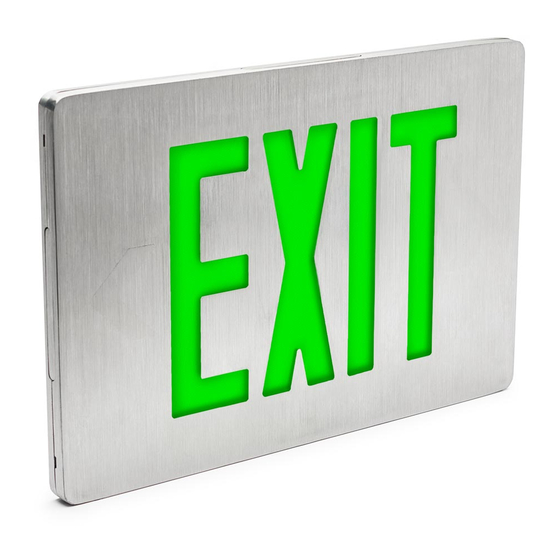

DIE CAST ALUMINUM LED EXIT SIGNS
INSTALLATION AND OPERATING
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including
the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. DO NOT use outdoors.
2. DO NOT mount near gas or electric heaters.
3. Equipment should be mounted in locations and at heights where it will not be
readily subject to tampering by unauthorized personnel.
4. The use of accessory equipment is not recommended by the manufacturer.
Use of such equipment may cause an unsafe condition.
5. DO NOT use this equipment for other than intended use.
6. Conduct periodic visibility tests in accordance with the applicable installation
code (such as NFPA 101).
7. Supply connections MUST be made inside the junction box.
8. Install using recommended junction box ONLY.
9. Servicing of this equipment should be performed by a qualified service personnel.
10. Install sign indoors only where not exposed to direct unfiltered sunlight, liquid
spray or temperatures outside of the range of 10 C to 40 C.
11. Before installing unit, disconnect power at breaker panel.
SAVE THESE INSTRUCTIONS
CONSERVER LA FICHE D'INSTRUCTION
31 Waterloo Avenue • Berwyn • PA 19312 U•S•A
Telephone: (610) 647-8200 • Fax: (610) 296-8952
Z410138 Rev B
INSTRUCTIONS
o
o
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTH2 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Isolite DTH2 SERIES

  • Page 1 DUAL TECH 2.0 - DTH2 SERIES DIE CAST ALUMINUM LED EXIT SIGNS INSTALLATION AND OPERATING INSTRUCTIONS IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS 1. DO NOT use outdoors.
  • Page 2: Installation Instructions

    INSTALLATION INSTRUCTIONS The Dual Tech 2.0 Hybrid Exit Sign is designed to be mounted to a junction box (supplied by others). It can be either back, top or side mounted. The single face unit back mounts to a standard 4” square box. Top or side mount requires the optional canopy and also mounts to a standard 4”...
  • Page 3 Before installing unit, disconnect power at breaker panel 3. The spider plate assembly will be provided with the transformer mounted and the lead wires strain relieved by the cable clamp (as shown below). Connect lead wires to feed wires in junction box as per local code. Cable clamp Black lead for 120V OR Transformer...
  • Page 4: Section 2: Back Mount Installation (Single Face Sign)

    SECTION 2: BACK MOUNT INSTALLATION (SINGLE FACE SIGN) 1. Secure spider plate to the junction box (screws supplied with the junction box). Route the transformer’s secondary leads through the center knockout of the rear panel then level the rear panel before tightening the panel to the spider plate via the knock-outs.
  • Page 5: Section 3: Canopy Mount (Single Or Double Face Signs)

    SECTION 3: CANOPY MOUNT (SINGLE OR DOUBLE FACE SIGNS) 1. Secure spider plate to junction box. Guide transformer secondary leads through canopy and connect to sign. 2. Secure canopy to sign and then fasten to spider plate. If an optional security cover will be utilized, it must be assembled to sign prior to securing the canopy to the sign.
  • Page 6 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 8 THIS PAGE INTENTIONALLY LEFT BLANK...
