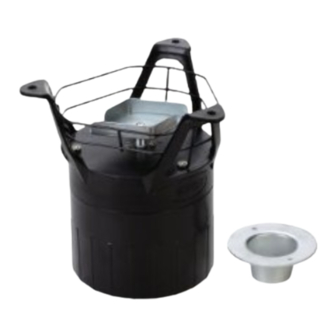

Moultrie Pro Hunter Instructions

DRILLING YOUR DRUM/BARREL/BUCKET
Pro Hunter will mount to the bottom of any drum or bucke
CAUTION: WEAR EYE PROTECTION
Turn drum over, measure and mark the center of the bottom.
Center the provided template on the bottom of the drum
and secure with tape. Drill two 3/16" Funnel Holes and
three 5/16" Feeder Leg Holes.
Using a Hole Saw, drill a 2-1/4" hole in the center of the
bottom of your drum.

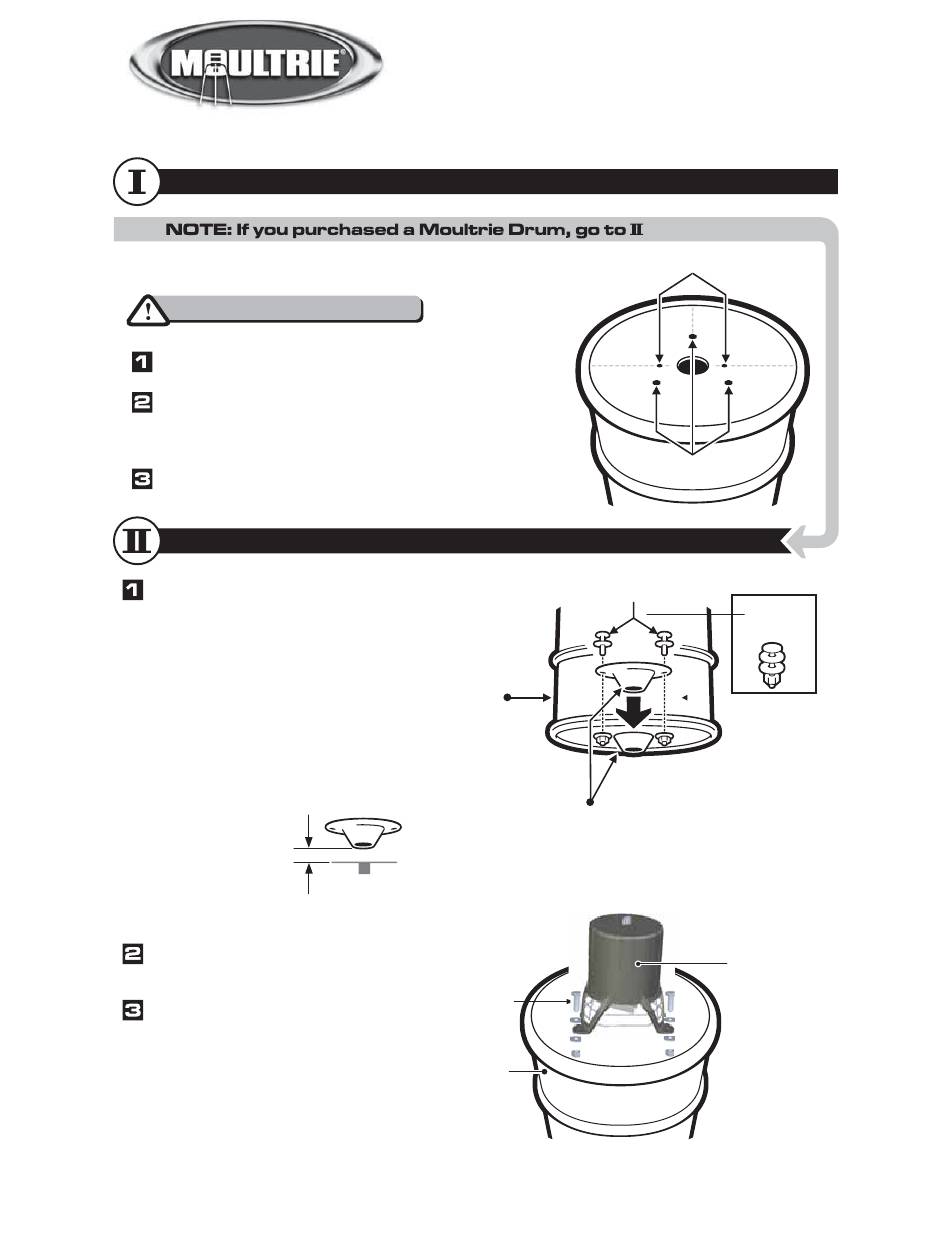

MOUNTING THE FEEDER
Funnel placement will vary based on the
construction of Drum. When using a metal
Drum, place Funnel inside Drum with small
end of funnel facing down, and attach with
provided Short Bolts, nuts and washers.
When using a plastic Drum, the funnel may need
to be mounted on the outside. Select the funnel
placement based on the ability to have a 1/2" to
5/8" gap between the bottom of the Funnel and
the horizontal section (center) of the Spinner
Plate as shown below.
1/2" to 5/8" gap
Turn Drum upside down.
Place Feeder on Drum.
Attach Feeder Legs to Drum as
shown with Bolts using nuts and
washers provided.
