TABLE OF CONTENTS Introduction..................................4 Indications for Use................................4 Safety Warning................................4 Contraindications................................4 Warnings..................................4 Precautions..................................5 Adverse Reactions.................................7 Symbol and Title................................8 Environmental Condition for Transport and Storage....................9 Electromagnetic Compatibility............................9 How the Device Works..............................14 Setup....................................19 Operating Instruction..............................20 Performance Specifications............................20 Cleaning and Maintenance............................21 Trouble Shooting................................21 Recommended Use Positions............................23 Contact Information..............................24... -
Page 4: Introduction

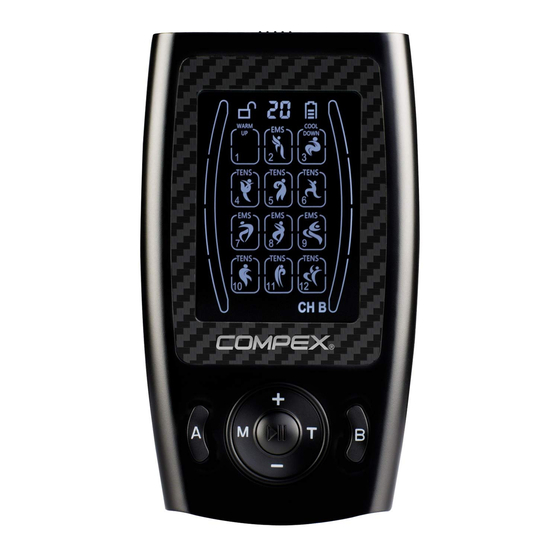

INTRODUCTION Compex LT, a transcutaneous electrical nerve stimulation (TENS) pain management device delivers electric pulses to the user’s body through electrodes to block and relieve pain. The portable and compact device features 12 modes with differing frequencies to target fatigued and sore muscles and helps in relieving aches and pains in various parts of the body such as the waist, shoulders, joints, hands and feet. -
Page 5: Precautions
the chest may cause rhythm disturbances to the patient’s heart, which could be lethal. » Do not apply stimulation over, or in proximity to, cancerous lesions. » Do not apply stimulation when the patient is in the bath or shower. »... - Page 6 » (4) In the presence of electronic monitoring equipment (e.g., cardiac monitors, ECG alarms). The electronic stimulator may not operate properly when the electrical stimulation device is in use. » (5) While operating machinery, or during any activity in which electrical stimulation can put you at risk of injury.
-
Page 7: Adverse Reactions
(14) DO NOT SHARE THE USE OF THE ELECTRODE PADS WITH OTHERS. (15) DO NOT USE THE DEVICE WHILE IT’S CHARGING. (16) THE DEVICE CONTAINS THE LITHIUM BATTERY. IF OVERHEATING OF THE DEVICE OC- CURRED DURING THE CHARGING, STOP THE CHARGING OR OPERATION IMMEDIATELY AND REPORT TO THE SELLER. -
Page 8: Symbol And Title
SYMBOL AND TITLE Fragile; handle with care Type BF applied part CAUTION, Read manual before Keep away from water and rain operating this product This way up Manufacturer Product package recyclable Non-recyclable Date of manufacture FDA 510(k) cleared Serial number IP code of the device Batch code... -
Page 9: Environmental Condition For Transport And Storage
ELECTROMAGNETIC COMPATIBILITY AND FCC COMPLIANCE STATEMENT 1) This product needs special precautions regarding electromagnetic compatibility (EMC) and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile radio frequency (RF) communications equipment. 2) Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. - Page 10 RF emission Class B The device is suitable for use in all establishments, including domestic CISPR 11 establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions Class A IEC 61000-3-2 Voltage fluctuations/ Complies...
- Page 11 ± 2 kV line(s) to earth (internal battery powered) that of a typical commercial or hospital environment. Voltage dips, short interrup- <5% UT Not applicable Main power quality should be tions and voltage variations on (>95% dip in UT) (internal battery powered)
- Page 12 Power frequency (50Hz/60Hz) 3 A/m 3 A/m Power frequency magnetic fields should magnetic field IEC 61000-4-8 be at levels characteristic of a typical location in a typical commercial or hospital environment. NOTE UT is the a.c. mains voltage prior to application of the test level. GUIDANCE AND MANUFACTURE’S DECLARATION –...
- Page 13 d = 1,2√P 80 MHz to 800 MHz Radiated RF 3 V/m 3 V/m IEC 61000-4-3 80 MHz to 2.5 GHz d = 2,3√P 80 MHz to 2,5 MHz Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).
-
Page 14: How The Device Works
A: Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and mobile radios, amateur radio, AM, and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceeds the applicable RF compliance level above, the device should be observed to verify normal operation. - Page 15 For transmitters rated at a maximum output power not listed above, the recommended separation distance in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
- Page 16 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undersired operation. The subject device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
- Page 17 PRODUCT SPECIFICATIONS TECHNICAL INFORMATION MODEL/TYPE Compex LT WEIGHT POWER SUPPLY Internal 3.7V Li-ion battery AUTOMATIC SHUTOFF 20 minutes WAVEFORM AND WAVE Biphasic rectangular wave DEGREE OF PROTECTION Type BF applied part SHAPE pulse AGAINST ELECTRIC SHOCK PULSE DURATION 100us (Microseconds)
- Page 18 PRODUCT SPECIFICATIONS Accessories included PROGRAM NAME TIME MIN. FREQUENCY (HZ) PULSE WIDTH in the package. (（S) MODE 1 10,20,30,40,50,60 (1). Control Unit (1) (2). Electrodes (4) MODE 2 10,20,30,40,50,60 12.5-55.5 (3). Output wire (2) (4). Micro USB Charger (1) MODE 3 10,20,30,40,50,60 (5).
-
Page 19: Setup
SETUP ON / OFF LCD DISPLAY INTENSITY INCREASE A CHANNEL TIMER MODE SELECTION B CHANNEL INTENSITY DECREASE PAUSE / START OUTPUT A CHANNEL OUTPUT B CHANNEL USB PORT... -
Page 20: Operating Instruction
OPERATING INSTRUCTION • Electronic Pulse Stimulator (TENS)needs to be charged for up to 8 hours before the first use. • Connect a pair of electrode pads to one connecting wire by snapping them on; the other end of the connecting wire is connected to the left output of the device. -
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE To clean use a damp cloth to wipe the device. The electrodes are disposable and should be replaced when they lose their adhesive- ness. Avoid touching the gel side of the pad as this will cause the electrode to lose its adhesiveness. TROUBLE SHOOTING If your device is not operating properly, please check below for common problems and suggested solutions. - Page 22 The battery capacity is low. Charge the device. The skin turns red or the skin The adhesive surface of the Wipe the adhesive surface of pads gently with a wet fingertip. feels irritated pads is dirty or dry. The therapy time is too Reduce the application time or reduce the intensity.
-
Page 23: Recommended Use Positions
RECOMMENDED USE POSITIONS SHOULDERS BACK BUTTOCKS ABDOMEN ARMS LEGS FEET... -
Page 24: Contact Information
CONTACT INFORMATION Distributed by DJO, LLC JKH Health Co., Ltd. Address: 4-5F, Building 12, Hengmingzhu Industrial Park, Xinqiao Tongfuyu Industrial Area, Shajing, Baoan District, Shenzhen, China Tel: +86-755-27926589 Fax: +86-755-29970323 E-mail: info@JKHhealth.com... - Page 25 PL-029GA VERSION 1.1...
