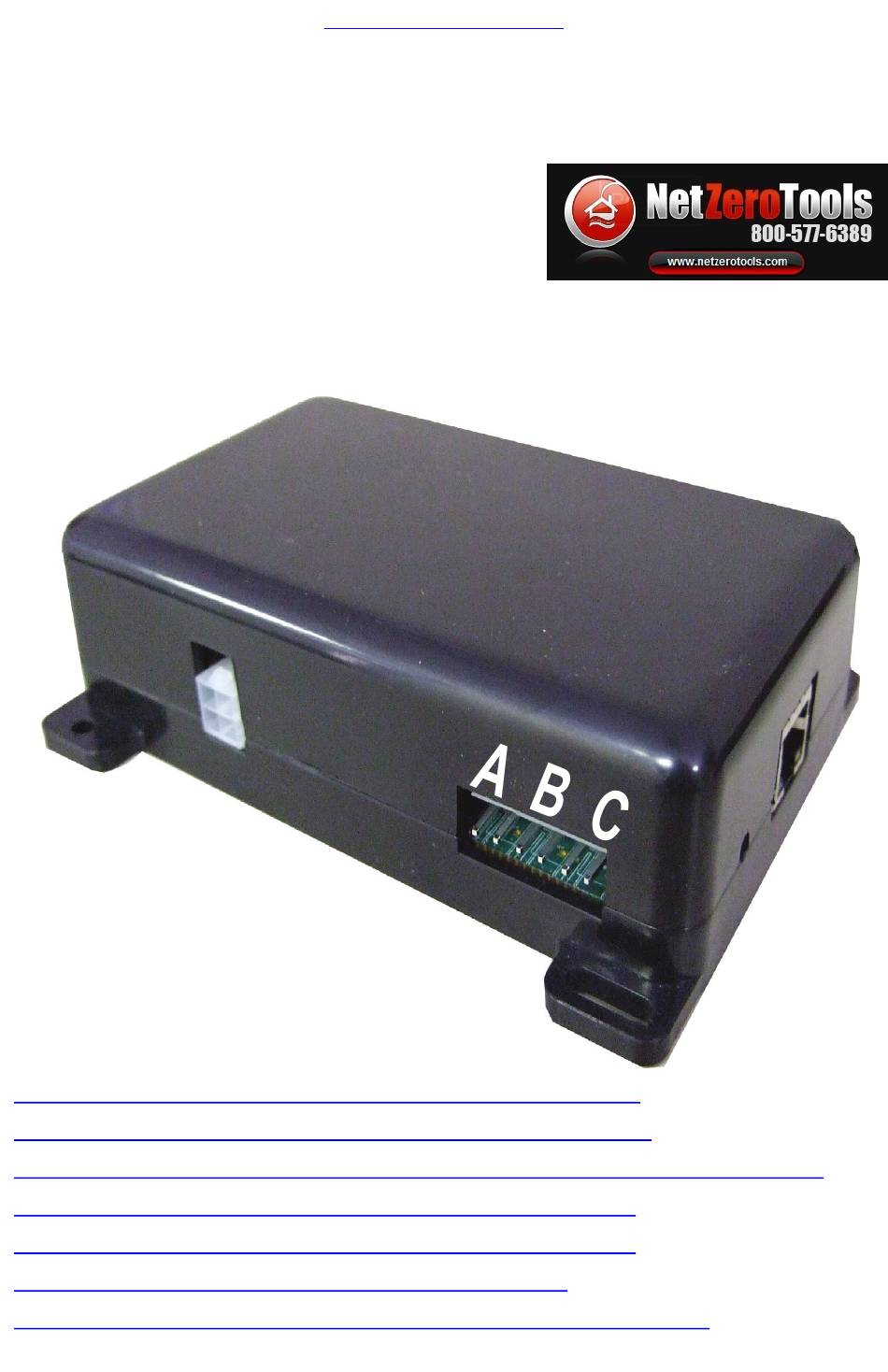

- Page 1 T E D P r o C o m m e r c i a l TED Pro CT Clamp Commercial Energy Monitor TED Pro CT Clamps Commercial Energy Monitor TED Pro WD Wireless Display for Commercial Energy Monitor TED Pro MTU-HV Commercial Energy Monitor TED Pro MTU-HV Commercial Energy Monitor...
-
Page 2: Table Of Contents
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * IMPORTANT: The installation of your TED Pro system is a several-step pro- cess. The 1st step is the installation of the MTU-HV. After the MTU-HV is installed, Step 2 is the installation of the ECC, and the last Step ... -
Page 3: Part I Introduction
• If your main circuit breaker or fuse panel is larger than 1200 Amps, TED WILL NOT work. • If you have more than one main circuit breaker or switch you will need to use multiple MTUs. -
Page 4: Single-Phase From 3-Phase
Energy, Inc. Tech Support for assistance. • TED is only suitable for services of 400 Amps or less, or up to 1200 Amps with parallel 400A feeds (May require optional CT Harness). -
Page 5: Components
• 208Y/120V 1PH-3W Single Phase service derived from 3-Phase system (North America) • 240/120V 1PH-3W (North America) • 230V 1PH-2W (Europe and most other countries in the world) • TED Pro Commercial MTU-HV will not work on 120V 1PH-2W services SYSTEM COMPONENTS TED Pro Commercial Energy Monitoring System includes: •... -
Page 6: Part Ii Safety
Every effort has been made in providing for the safe, secure installation of TED. The installation of TED requires the cover of the main electrical circuit breaker panel to be removed. After the circuit breaker panel cover has been removed, the potential hazard of shock, burn, or even electrocution now exists. -
Page 7: Part Iii Installation
ELECTRICAL WIRING AND THEORY MAY USE THE FOLLOWING INSTRUCTIONS FOR INSTALLATION OF TED PRO COMMERCIAL MTU. TED will work on single-phase services, however TED Pro Residential will prove to be a smaller and more cost effective solution. For services where there are two-or-more main circuit breaker panels you will need one additional MTU for each main circuit breaker or panel. - Page 8 netzerotools.com Page 8 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Incoming Power Lines MAX 600V MAX 1200A...
- Page 9 netzerotools.com Page 9 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Incoming Power Lines MAX 600V MAX 1200A...
- Page 10 netzerotools.com Page 10 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * I n s t a l l a t i o n D e t a i l STEP 1 –...
- Page 11 netzerotools.com Page 11 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * D) Connect the black, red and blue wires from the MTU power cord to a spare 15,20 or 30 Amp three- pole circuit breaker in the panel.
- Page 12 MTU. The third CT is not used. NOTE: While the TED Pro Commercial MTU is designed to work on services of 400A, it is possible to use it on services with up to three 400A parallel conductors per phase (up to 1200A) by follow-...
- Page 13 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * correct data is being received from the MTU. Close the Electrical Panel only after you have confirmed the correct operation of TED, Step 5 – ETHERNET WIRING •...
- Page 14 “Post to HTTP” check box. Then carefully type in the IP that the Installation Utility has returned for the TED Pro ECC into the ECC IP field, select Save. (This setting will DISABLE the Power Line Carrier of this MTU.) Refer to Footprints manual or Quick Start Guide to complete ECC setup and test functionality.
-
Page 15: Part Iv Communication Options
netzerotools.com Page 15 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * P A R T Communication Options INSIDE... -
Page 16: Mtu-To-Ecc Communication Via Ethernet
1. Set the computer’s IP to 192.168.7.1 See the steps starting on page 35 of the TED 5000 User’s Manual for instructions on setting your computer’s IP to a specific IP. * Note – depending on the computer, you may need an Ethernet Crossover cable when directly con- necting the ECC and/or MTU to the computer 2. -
Page 17: Ecc Communication Via Local Area Network
5-10 minutes, and it should bring back two different IP addresses – one for the ECC (shown on the Utility as “TED 6000”), and one for the MTU (shown on the utility as “TED 3000”). Once it does, select the TED 3000 IP address and then click ‘Launch in Browser’... -
Page 18: Footprints Software Installation
After you have installed your MTU-HV and ECC, follow these instructions to complete your setup: Installing Footprints Software: Go to the following link and download the TED Pro Installation Utility appropriate for your com- puter (Windows, Mac, or Linux): http://www.theenergydetective.com/downloads-documents 2) Run the Installation Utility After the Utility locates your ECC-IP address, highlight the ECC-line (it may say “TED6000”) select... -
Page 19: Appendix A1
netzerotools.com Page 19 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Appendix A-1 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Rev 1.0.13... -
Page 20: Appendix A2
netzerotools.com Page 20 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Appendix A-2 netzerotools.com... -
Page 21: Appendix A3
netzerotools.com Page 21 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Appendix A-3 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Rev 1.0.13... -
Page 22: Appendix A4
netzerotools.com Page 22 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Appendix A-4 netzerotools.com... -
Page 23: Appendix A5
netzerotools.com Page 23 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Appendix A-5 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Rev 1.0.13... - Page 24 netzerotools.com NERGY netzerotools.com...
