PRO Flow M - Cleaning and maintenance
instructions
Cleaning
PRO Flow luminaires are recommended to be cleaned wiping with lint-free cloth and lukewarm water.
Particular attention should be paid to the careful but thorough cleansing of glass. Possible loose debris
should be removed from the luminaire.
Maintenance
The following components of the PRO Flow M luminaire can be replaced:
Glass
LED Module
Power source
Tools with a torx20 and torx10 heads are required for any changing work.
Changing the glass
1. Open the luminaire cover according to the installation instructions.

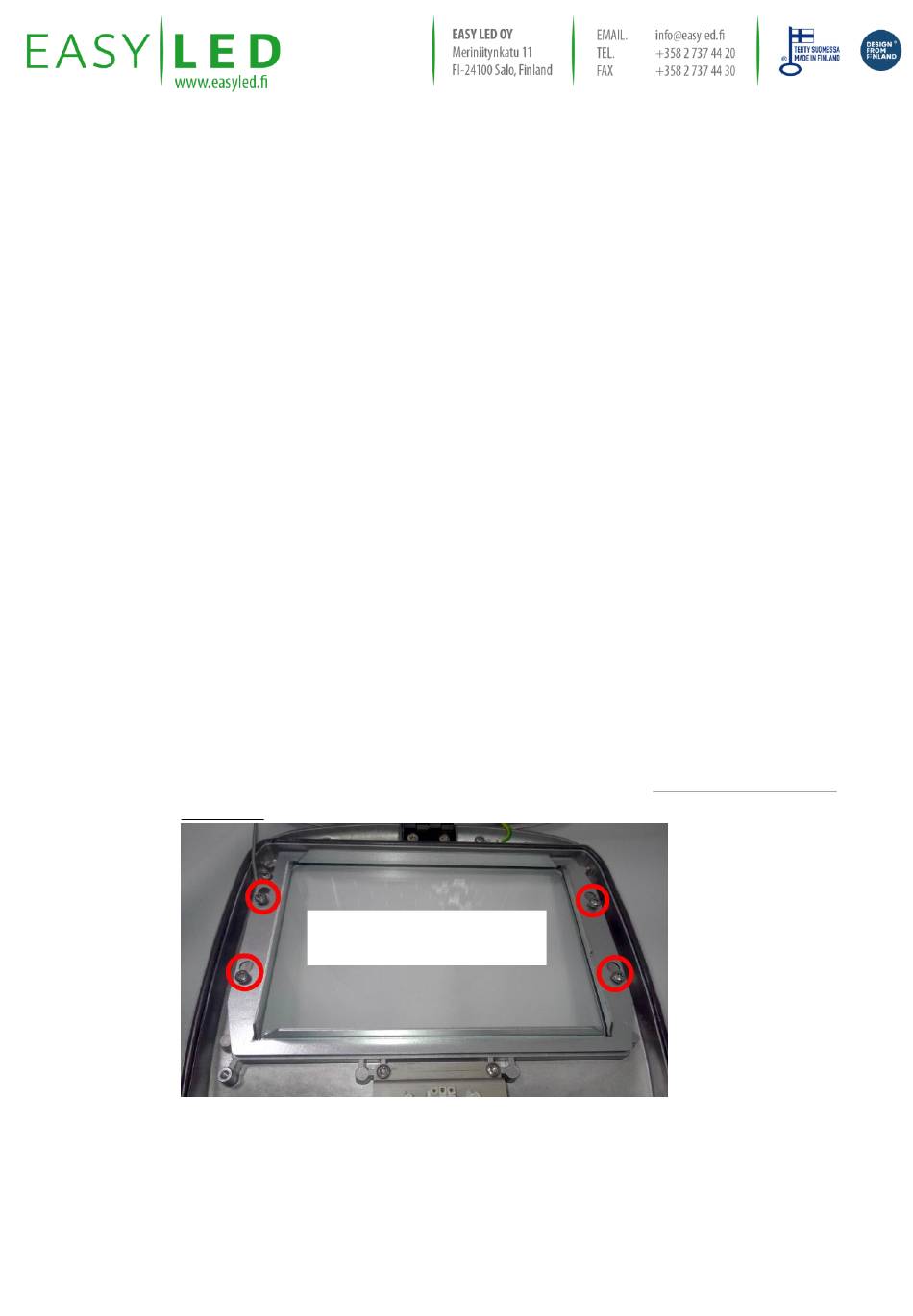

2. Loosen the four M4 screws (torx20) of the glass mounting frame. Do not loosen the screws
completely!
PRO Flow M – Cleaning and maintenance instructions
Do not loosen the screws
completely!
v1.0 2018-06-12 EN
Advertisement
Table of Contents
Related Manuals for EASY LED PRO Flow M Series
Summary of Contents for EASY LED PRO Flow M Series
- Page 1 PRO Flow M - Cleaning and maintenance instructions Cleaning PRO Flow luminaires are recommended to be cleaned wiping with lint-free cloth and lukewarm water. Particular attention should be paid to the careful but thorough cleansing of glass. Possible loose debris should be removed from the luminaire.
- Page 2 3. Slide the glass mounting frame backwards so that it is free from the fastening screws. Move the glass mounting frame away from its grooves. 4. Remove the old glass, clean all glass shards from the luminaire. 5. Put the new glass in place carefully. 6.
- Page 3 Changing the LED module 1. Open the cover of the luminaire according to the installation instructions. 2. Detach the cord that leads from the power source to the LED Module. 3. Remove the 8-12 fastening screws (torx10). Do not reuse the screws! 4.
- Page 4 6. Fasten the optics and the PCB using the new M3 fastening screws (torx10) to a tightness of 0,5 Nm. 7. Connect the cord coming from the power source to the counter-connector of the LED Module. 8. Close the luminaire according to the installation instructions. PRO Flow M –...
- Page 5 Changing the power source (OT165) 1. Open the luminaire according to the installation instructions. 2. Disconnect the cord that leads from the power source to the LED Module. 3. Loosen the four fastening screws of the power source panel (torx20). Do not loosen the screws completely! 4.
- Page 6 6. Route the LED Module cord as shown. 7. Attach the cord from the power source to the counter-connector on the LED Module. 8. Close the luminaire according to the installation instructions. PRO Flow M – Cleaning and maintenance instructions v1.0 2018-06-12 EN...
- Page 7 Changing the power source (OT90) 1. Open the luminaire according to the installation instructions. 2. Disconnect the cord that leads from the power source to the LED Module. 3. Loosen the four fastening screws of the power source panel (torx20). Do not loosen the screws completely! 4.
- Page 8 5. Place a new power source panel onto the screw slots and fasten the fastening screws to a tightness of 2 Nm (torx20). Ensure that the screw slots are positioned as shown. 6. Route the LED Module cord as shown. 7.
