C
N
M
S
part
pièce
parte
A
stinger & backbone assembly / support et tube central assemblés / conjunto de espiga y eje troncal
B
bike tube & wheel holder assembly / tube de vélo et support pour roue assemblés / conjunto de tubo de bicicleta y soporte para rueda
C
upright tube & hook assembly / tube vertical et crochet assemblés / conjunto de tubo vertical y gancho
D
hex head bolt 12 x 40mm / boulon à tête hexagonale 12 x 40 mm / perno Allen 12 x 40 mm
E
washer 12mm x 24mm / rondelle 12 mm x 24 mm / arandela 12 mm x 24 mm
F
washer 8mm x 16mm / rondelle 8 mm x 16 mm / arandela 8 mm x 16 mm
G
carriage bolt M8 x 45mm / boulon de carrosserie M8 x 45 mm / perno cabeza de hongo M8 x 45 mm
H
carriage bolt M8 x 70mm / boulon de carrosserie M8 x 70 mm / perno cabeza de hongo M8 x 70 mm
I
locknut M8 / contre-écrou M8 / contratuerca M8
J
lock washer 12mm / rondelle Grower 12 mm / arandela groover 12 mm
K
hex key 5mm / clé hexagonale 5 mm / llave Allen de 5 mm
L
Thule hitch tool / outil pour attelage Thule / Herramienta de elevación Thule
M
adapter sleeve, short / manchon de serrage, court / casquillo reductor, corto
N
flat cap screw M6 x 16mm / vis à tête plate M6 x 16 mm / tornillo Allen cabeza plana M6 x 16 mm
O
wheel strap assembly / sangle de roue assemblée / conjunto de correa para rueda
P
lever / levier / palanca
Q
axle nut 18mm / écrou de l'essieu 18 mm / tuerca de eje 18 mm
R
carriage bolt M6 x 60mm / boulon de carrosserie M6 x 60 mm / perno cabeza de hongo M6 x 60 mm
S
end cap 1.25" square / capuchon d'extrémité carré 1,25 po / tapón cuadrado de extremo 1,25" (3,2 cm)
T
road bike adapter / adaptateur pour vélo de route / adaptador para bicicleta de calle
501-5677-02
990 DOUBLETRACK™
PARTS INCLUDED • PIÈCES INCLUSES • PIEZAS INCLUIDAS
A
D
H
description
description
descripcion
B
R
E
G
F
K
O
J
I
Q
part number
numéro de pièce
numero de parte
908-1240-11
951-1224-11
951-0816-11
915-0845-31
915-0870-31
938-0800-11
956-1221-11
853-2430-02
853-5787-02
853-0446-01
915-0660-31
L
P
T
qty.
qté.
cant.
753-3927
1
753-3928
2
753-3929
1
1
1
6
4
2
6
1
1
853-5524
1
853-7489
1
1
753-3001
4
853-3506
4
4
4
853-7484
6
853-5426
4
1 of 7
Need help?
Do you have a question about the DOUBLETRACK 990 and is the answer not in the manual?
Questions and answers

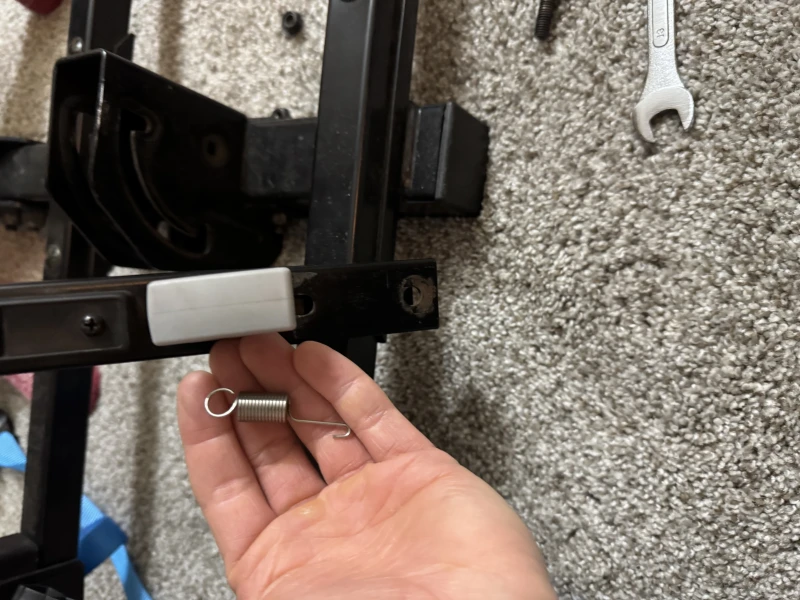

Took bike arm off to flip it so locks face forward when looking at carrier. It was installed backwards. The spring holding the latch to move arm into up position or to lay it over came loose when I removed bolts to flip arm. How to attach spring back?
