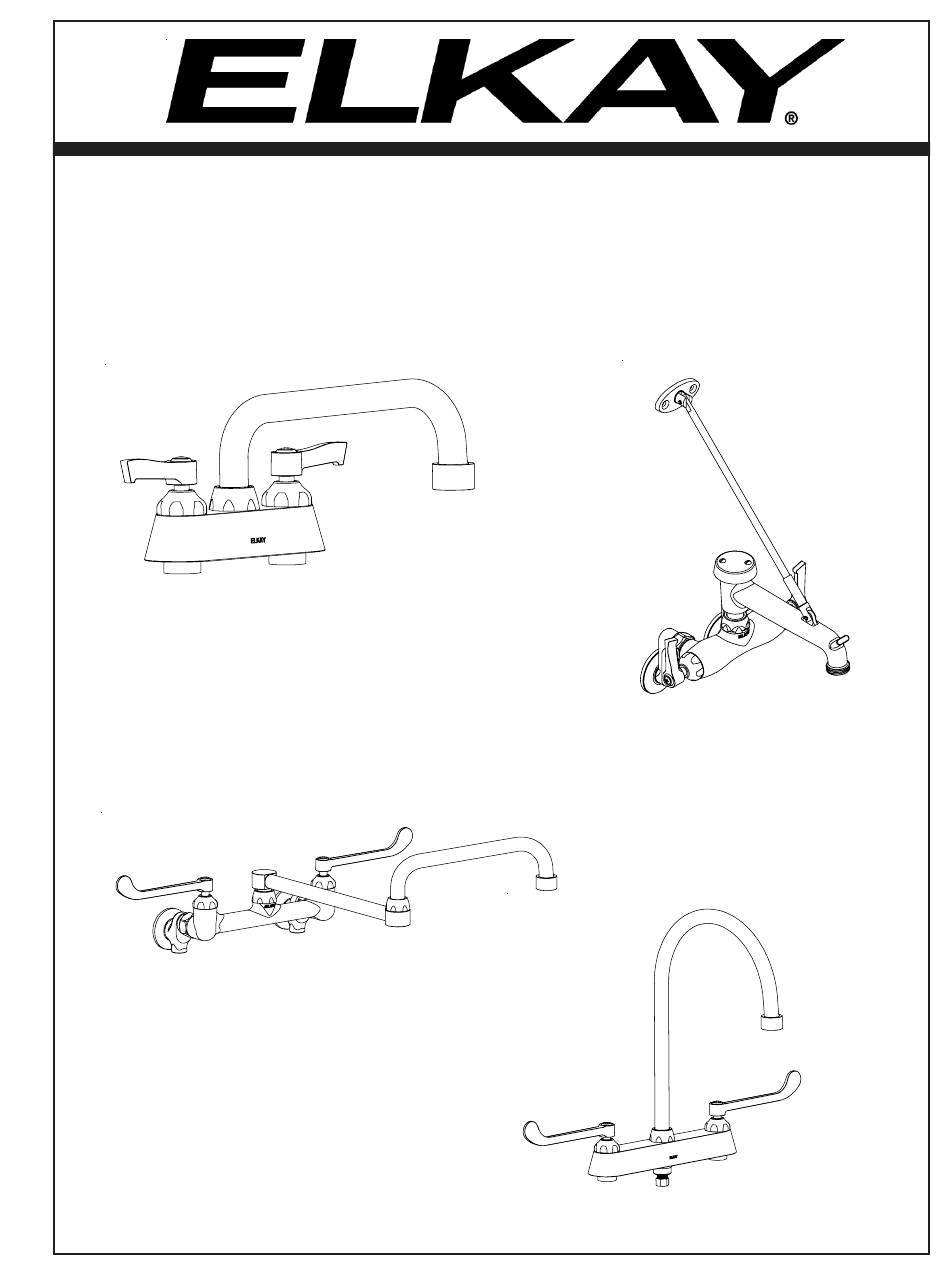

Installation Instructions for Wall Mount and Deck Mount Faucets ELKAY 2222 CAMDEN COURT OAK BROOK, IL. 60523 USA Page 1 A55483 (Rev. B - 9/10)
Page 2
8. Wrench tighten flanges to faucet body. 9. Make sure drain is attached and turn on water supply - being sure to check for leaks. Wrench tighten where needed. Page 2 A55483 (Rev. B - 9/10)
Page 3
5. Attach supply lines. Sink Deck 6. Make sure drain is attached and turn on water Shank supply – being sure to check for leaks. Tighten Nutwasher with wrench where needed. Figure 3 Page 3 A55483 (Rev. B - 9/10)
Never use alcohol or other organic solvents. COMMERCIAL SINKS AND FAUCETS LIMITED WARRANTY Elkay warrants commercial sink and faucet products to be free of defects in workmanship and materials for a period of 5 years from the date of purchase. This warranty does not cover transportation or installation charges.
