Cree LR4E Series Installation Instructions

IMPORTANT SAFETY INFORMATION

Read all instructions before installation
1. WARNING - Risk of Electric Shock. Disconnect power at fuse or circuit
breaker before installing or servicing.
2. Check to make sure that all recessed can connections have been prop-
erly made and the fixture is grounded to avoid potential electrical shocks.
3. Do not handle energized fixture with wet hands, when standing on wet or
damp surfaces, or in water.
• LR4-Engines (all versions) are designed for both Insulated
(completely buried in insulation) and Non-insulated appli-
cations.
• Designed for use with a 120 volt, 60 hertz protected circuit
(fuse box, circuit breakers) and 90° C rated supply wire.
• LR4E is for use with a H4 recessed pan assembly and must
be used within an enclosed recessed can. See installation
instructions for H4 for more information.

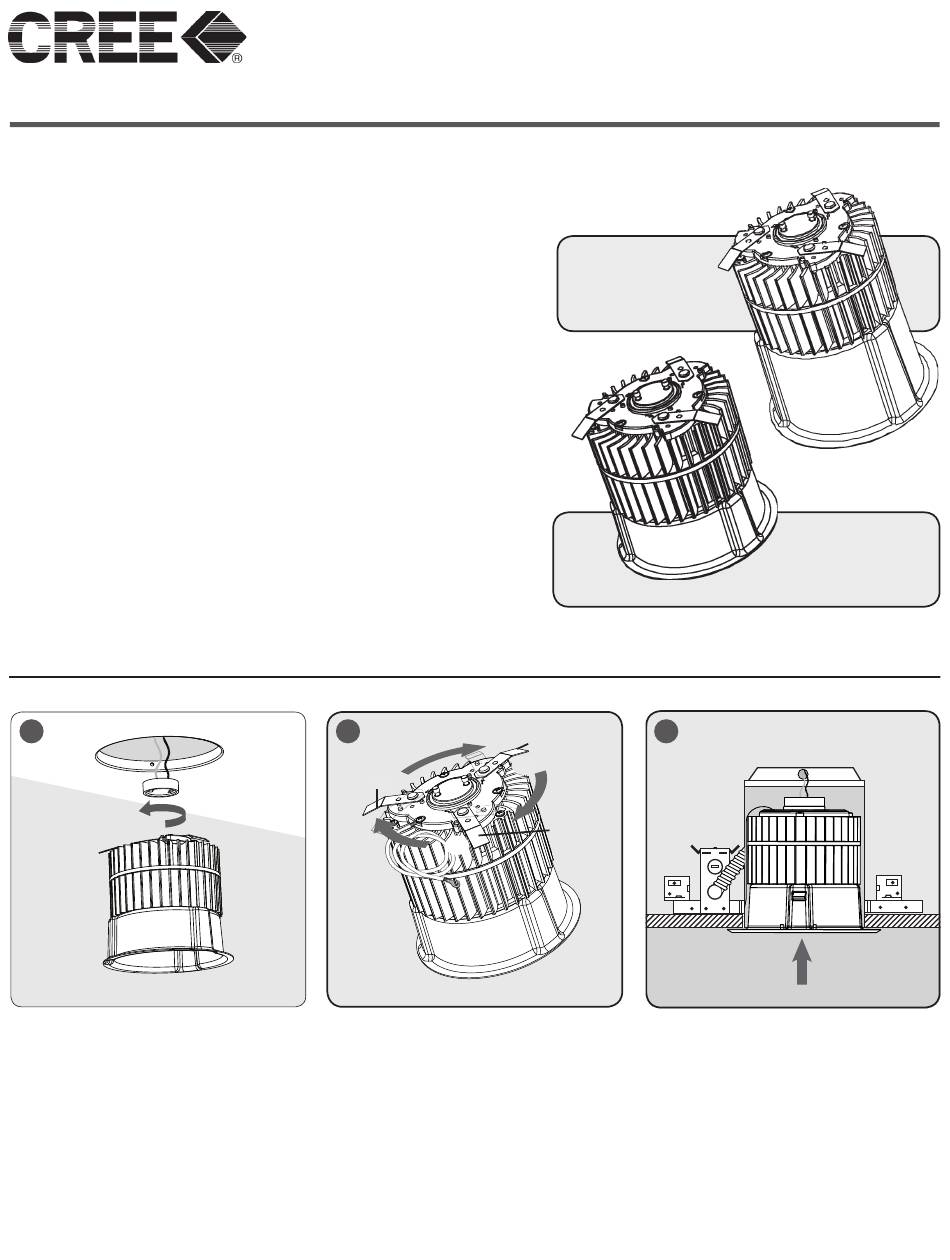

INSTALLING THE LR4E
1
STEP 1:
Remove taped GU-24 socket from side wall
of recessed can and pull down to attach to
the top of the LR4E. Align pins and socket
and turn clockwise until locked. See
Figure 1.
2
A
Flip Clip
A
STEP 2:
Remove the LR4E from the packaging and
rotate the "Flip Clips" clockwise until the
pointed tip of the clip lines up with the
arrow on the metal base. Loosen one of
the screws inside the H4 can. Unwind the
green ground wire and hook it over the
screw. Re-tighten screw to secure ground
hook. See Figure 2.
Including: LR4E-15, LR4E-15C, LR4E-30, LR4E-30C
INSTALLATION INSTRUCTIONS
30˚ Shield Angle
LR4E-30
LR4E-30C
3
Flip Clip
A
Flip Clip
STEP 3:
Push the LR4E with the flip clips in the
ready position up into recessed can until
the bottom flange of the LR4E is flush
with the ceiling. The LR4E should be firmly
gripping the can. To remove the LR4E
rotate counter-clockwise until clips release
and you can pull the unit down. See
Figure 3.
LR4E Light Engine
15˚ Shield Angle
LR4E-15
LR4E-15C
