Installation & Operation Guide
ADS120D Plus
Mixer Amplifier
PLEASE NOTE: THIS MANUAL AND THE NOTES CONTAINED HEREIN ARE COPYRIGHT AND MAY
NOT BE REPRODUCED EITHER WHOLLY OR IN PART, IN ANY WAY WHATSOEVER, WITHOUT
WRITTEN CONSENT OF ADSworldwide.
Audio Design Services Ltd, St David's House, Adcroft St, Higher Hillgate, Stockport, Cheshire SK1 3HW, UK.
TEL: +44 (0)161 666 6363
FAX: +44 (0)161 666 6366. WEB:
www.ads-worldwide.net
© 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADS ADS120D Plus
Summary of Contents for ADS ADS120D Plus

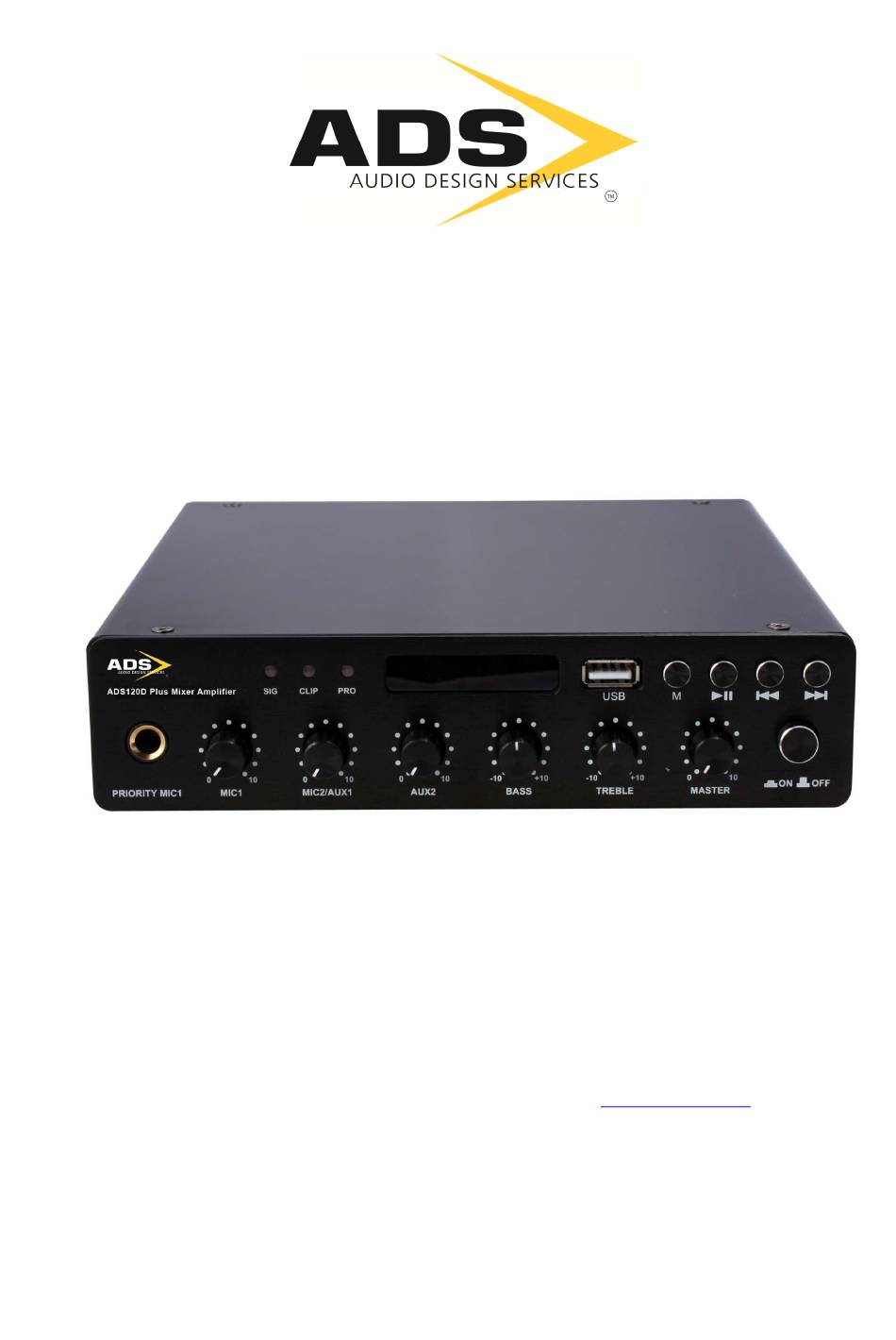

- Page 1 Installation & Operation Guide ADS120D Plus Mixer Amplifier PLEASE NOTE: THIS MANUAL AND THE NOTES CONTAINED HEREIN ARE COPYRIGHT AND MAY NOT BE REPRODUCED EITHER WHOLLY OR IN PART, IN ANY WAY WHATSOEVER, WITHOUT WRITTEN CONSENT OF ADSworldwide. Audio Design Services Ltd, St David’s House, Adcroft St, Higher Hillgate, Stockport, Cheshire SK1 3HW, UK.
- Page 2 Product Compliance to EC directives for Standard Products All standard products conform to the relevant directives, regulations and standards for electronic and associated apparatus. The equipment is CE marked both on the apparatus and the packaging. Our products meet the appropriate British and International standards. A product ‘Declaration of Conformity’...
-
Page 3: Product Description
1. Product Description 1.1 Features Integral USB audio player. Bluetooth connectivity for wireless streaming. Signal level indicator (SIG), Clip Indicator (CLIP), and Protection indicator (PRO). 2 MIC inputs, 1 with phantom power and 1 with priority, 2 line inputs. ... -

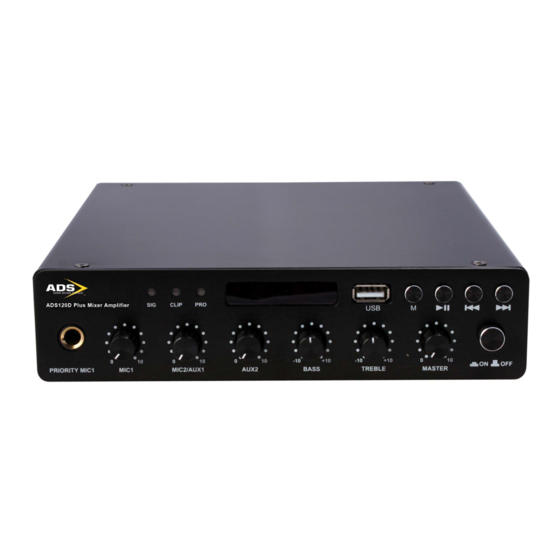

Page 4: Appearance Description
2. Appearance Description 2.1 Front panel 1. Mic 1 priority input 2. MIC1 volume adjustment Adjust the volume of MIC1, turn clockwise to turn up, turn counter clockwise to turn down. 3. MIC2/AUX1 volume adjustment Adjust the volume of MIC2/AUX1, turn clockwise to turn up, turn counter clockwise to turn down. 4. - Page 5 volume. 8. Power switch Press “ON” to turn on the power, press “OFF” to close the power 9. Signal level indicator（ （ （ （ SIG） ） ） ） 10. Clip Indicator（ （ （ （ CLIP） ） ） ） 11. Protection indicator（ （ （ （ PRO） ） ） ） 12.
- Page 6 2.2 Rear panel 1. AC 220-240V Power input socket The interface is to supply the working power. Insert the plug onto the machine, then connect the power grid. 2. Cooling fan window 3. Speaker output interface 100V line 4. LINE1 /MIC2 IN balanced input interface Can connect with microphone or other external audio 5.
-
Page 7: Audio Source Selection
2.3 Side Panel Heat dissipation vent 3. Audio source selection The mode selector (M) button is located the front panel and is used to select Bluetooth or Aux inputs 3.1Bluetooth mode Press MODE to display “bt” on the digital screen, the “bt” will always flash until device and mobile phone pairing success. -
Page 8: Remote Control Instructions
4. Remote Control Instructions As shown in the following figure: Function key description： ： ： ： ① Mode main function key，working mode switch. ② Power switch ③ Play & Pause/ ④ EQ sound effect ⑤ 0-9 song selection key，can be composed of digital channel selection ⑥... -
Page 9: Packing List
AVOID jointing the microphone cables if possible. If this is unavoidable, make sure a good screen connector is used. • ALWAYS use a balanced or floating low impedance microphone on long microphone runs, terminating in a balanced input. Packing list List Quantity ADS120D Plus Mixer Amplifier Manual Mains Lead Remote control... -
Page 10: Specification
Specification Model ADS120D Rated Power 120W RMS Speaker Output 100V 0.006 VRMS Sensitivity Line 0.3 VRMS 100V-IN 100 VRMS ≥74db (Maximum) ≥80dB（Maximum） Frequency Response 80Hz-15kHz（±3dB） Distortion ≤0.5 % AC220V- 240V,50-60Hz Power Supply DC24V ±10dB （100Hz） Bass Tone ±10dB （10KHz） Treble Power Consumption 150W Size（W×H×L）...
