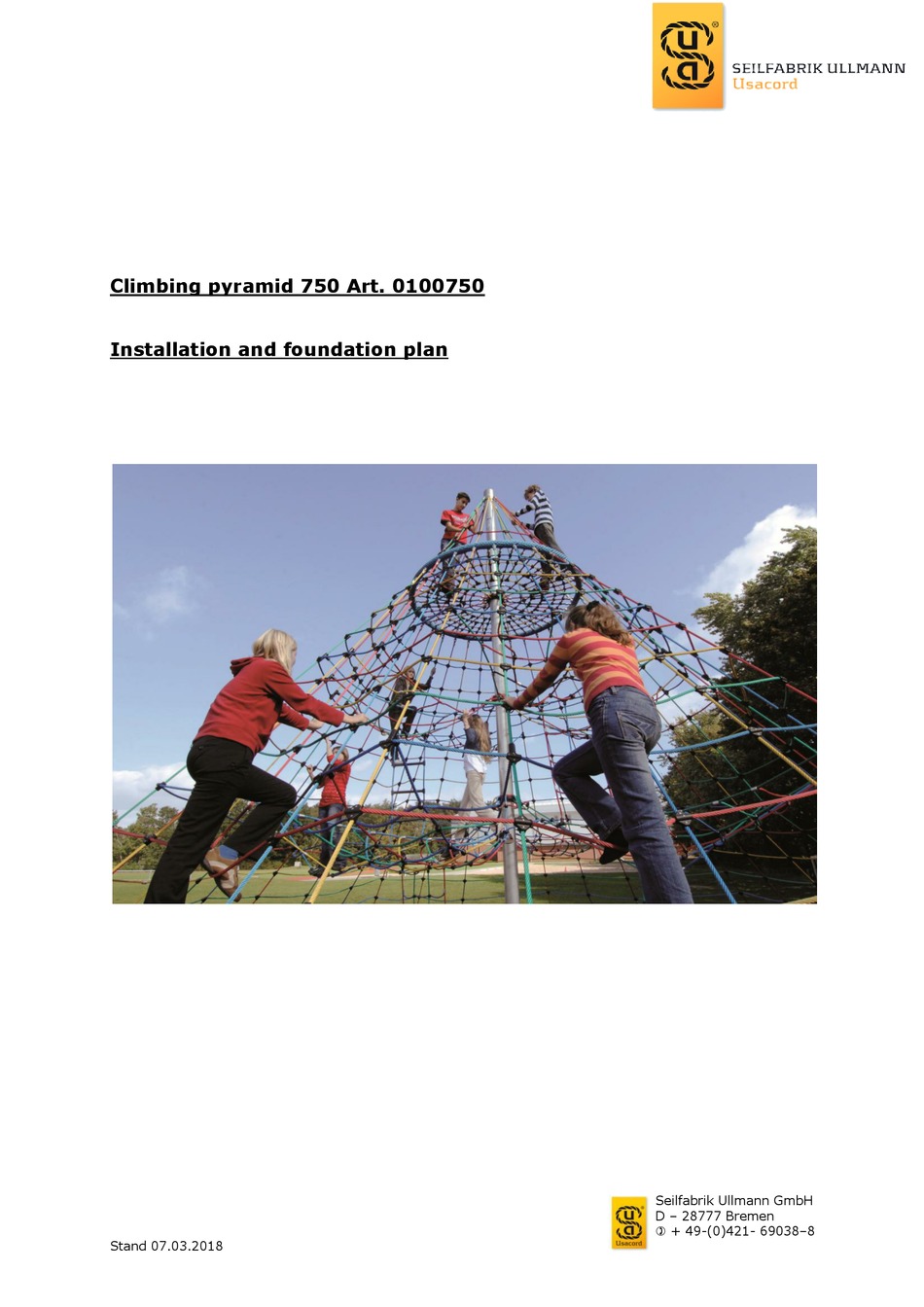

- Page 1 Climbing pyramid 750 Art. 0100750 Installation and foundation plan Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8 Stand 07.03.2018...
-
Page 2: Table Of Contents
4.2 Erecting the climbing pyramid......................5 5. Drawings .............................. 7 6. maintenance instructions climbing pyramid 750 ................11 7. Safety and user information for climbing pyramid 750 ..............12 8. Changes ............................. 12 Maintenance history ..........................13 Seilfabrik Ullmann GmbH D –... -
Page 3: Parts List
Only use OEM spare parts for the climbing pyramid. The climbing pyramid complies with EN 1176-1:2008 und EN 1176- 11:2008. 3. Age restriction The climbing pyramid 750 is suitable for children aged 6 years and up. Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8... -
Page 4: Installation Instructions For The Climbing Pyramid
Fill in each hole with concrete 550 mm high and install the anchor shackles centrally as shown in drawing 4. Bring in reinforcement. Fill another 50 mm of concrete. Allow the concrete to set completely! Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8... -
Page 5: Erecting The Climbing Pyramid
4.2 Erecting the climbing pyramid For erecting the climbing pyramid 750 4 persons are necessary. Also a forklift or similar machine with a height of 8000 mm is to be used. Place the post in the plastic tube, vertically align and fix it. Fill the remaining space in the tube with concrete and allow the concrete to set completely (see drawing 3. - Page 6 If the lock rings are installed correctly there is only a little space of 1-2 mm left between the lock rings and the centre ring. Check if the centre ring can be moved. Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8...
-
Page 7: Drawings
5. Drawings Drawing 1: foundations Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8 Stand 07.03.2018... - Page 8 2 mat Q 131 1000 x 1000 mm 2 mat Q 131 1000 x 1850 mm Drawing 2: Foundation post with reinforcement Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8 Stand 07.03.2018...
- Page 9 Drawing 3: Foundation post safetylatch concrete ground Drawing 4: Foundation anchor Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8 Stand 07.03.2018...
- Page 10 Drawing 5 Foundation rope ladder safetylatch ground concreat Drawing 6: Foundation climbing net Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8 Stand 07.03.2018...
-
Page 11: Maintenance Instructions Climbing Pyramid 750
6. maintenance instructions climbing pyramid 750 N. U.: Normal usage Ex.U.: Extrem usage Visual inspection of fall protection and the safety surface. Remove obvious hazards that f. e. have been caused by vandalism. Maintenance interval: N. U.: weekly, Ex. U.: daily Screws and other connection (T-connector, balls etc.) check if the... -
Page 12: Safety And User Information For Climbing Pyramid 750
7. Safety and user information for climbing pyramid 750 Always comply with the following safety and user information: Open light or fire, burning cigarettes, etc., knives or other sharp-edged or long and sharp objects are prohibited when climbing! Do not wear high-heeled or sharp-edged shoes, stiletto-heeled shoes or rollerblades when climbing! ... -
Page 13: Maintenance History
Maintenance history Date Kind of work Name, Sign Seilfabrik Ullmann GmbH D – 28777 Bremen + 49-(0)421- 69038–8 Stand 07.03.2018...
