Summary of Contents for Yukon Advanced Optics SIGNAL N320RT

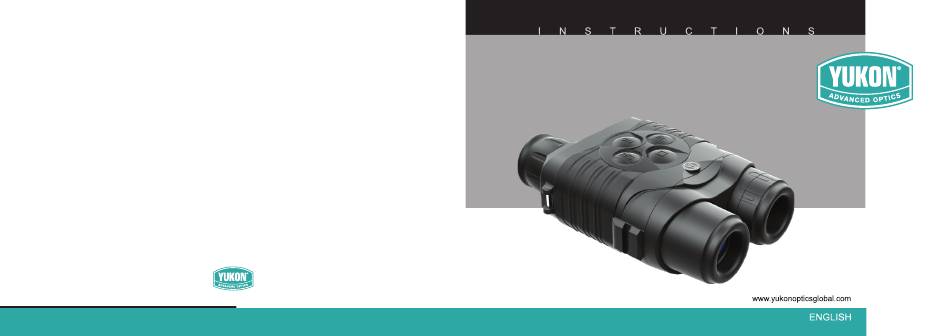

- Page 1 DIGITAL NIGHT VISION DIGITAL NIGHT VISION SIGNAL SIGNAL N320RT / N320RT / N340RT N340RT...
- Page 2 Stream your discoveries v.0517...
-
Page 3: Package Contents
ENGLISH SPECIFICATIONS PACKAGE CONTENTS MODEL / SKU# Signal N320RT / 28062 Signal N340RT / 28063 Signal RT Micro USB cable Optical characteristics Magnification 4.5x / 9x 4.5x / 9x Digital Night Vision Monocular User manual Digital zoom Lens cloth Carrying case Objective lens 1:1.05... -
Page 4: Installation Of Batteries
INSTALLATION OF BATTERIES Slide and open the battery cover (12). Insert batteries (or rechargeable batteries) into the battery container observing polarity on the battery cover. Slide back the battery cover to its original position. Attention! Do not use batteries of different types or batteries with various charge level because this may significantly decrease operating time. -
Page 5: Description Of Controls
To turn the display on, press iefly the button. DESCRIPTION OF CONTROLS To turn the unit off, press and hold down the button for more than three second. The display shows Button Operating mode 1 short press 2 short press Long press message “Switch off”... -
Page 6: Operating Modes
Record timer ZOOM SOUND Video recording indication on the display: OPERATING MODES The REC (5) icon appears in place of the “VIDEO” icon. The operating modes are as follows: Video 00:42 Display icons are not recorded. recording You can enter and navigate the menu during video recording. Video (video recording) Photo (image capture) Note! You can stop recording video only after exiting the menu. -
Page 7: Photo Mode
VIDEO mode ZOOM SOUND PHOTO MODE REVIEW Mode – Photo Photo Mode is shown by icon on the display. Mode * The counter of available photos is displayed when the number of photos is 999 or less. REVIEW-PHOTO 2/123 File counter Photos are saved into the internal Flash memory. - Page 8 Video countdown timer File navigation: When reviewing files, some control functions are not available: Leftwards - brief press of the ZOOM (4) button. Enter menu Video 00:05 review Rightwards - brief press of the IR (3) button. ZOOM control mode 5/123 File counter...
- Page 9 Brightness setup Hold down the ZOOM (4) button to enter the main menu. Use the IR (3) and REC (5) buttons to select submenu “Wi-Fi Setup”. Hold down the ZOOM (4) button to enter the main menu. Enter the submenu with a short press of the ZOOM (4) button. Use the IR (3) and REC (5) buttons to select submenu "...
- Page 10 Use the navigation buttons to select the minute value (REC button to increase the value; IR button to decrease the value). Name: Signal N320RT (name of the unit) To save the time settings and to exit the submenu, press and hold down the ZOOM button for more than SKU: 28062 (model number) one second.
-
Page 11: Digital Zoom Function
DIGITAL ZOOM FUNCTION USB CONNECTION This function allows you to control the unit's ZOOM mode. The display shows the full magnification value The unit can be connected to a PC via the USB port (9). The PC will detect the unit automatically, no driver which is the product of the optical and digital magnification. -
Page 12: Tripod Mount
Connection in various operating modes TRIPOD MOUNT Connection Operating mode Status of the unit option The standard ¼” tripod mount (10) in the lower part of the monocular is designed to install the unit on a tripod. Video/Photo The unit is "off". If video recording is on when the connection is made, the recording is stopped and saved automatically. -
Page 13: Troubleshooting
Problem Check Corrective action TROUBLESHOOTING The unit is beyond reliable Wi-Fi range. Place the unit in line-of-sight of the Wi-Fi signal. No Wi-Fi signal or erratic signal. There are obstacles between the unit The table below lists some potential problems that may occur when using the unit. If the problem and the signal receiver (concrete walls experienced with the unit is not listed, or if the suggested action does not resolve the problem, returned it for example). - Page 14 FR BE DE AU...
