Summary of Contents for jcm-tech M8NF

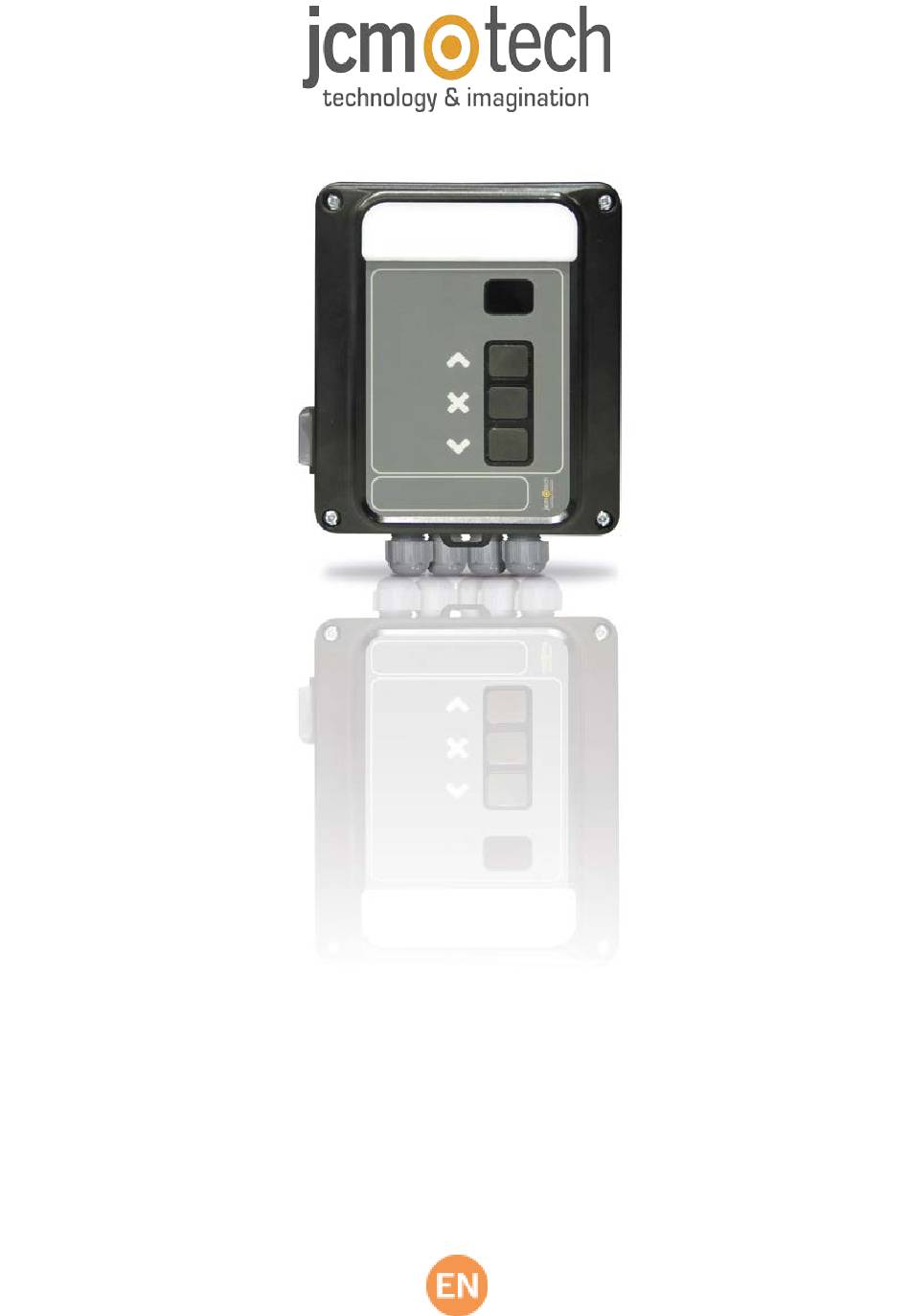

- Page 1 User's Manual M8NF...
-
Page 2: Table Of Contents
Table of contents Maintenance Important safety instructions for installation Important safety instructions for use Use of the equipment Technical Data Connection Installation Installation with support Installation without support Door Positioning Programming Radio Manual Porgramming Total Reset Safety devices programming RadioBand3 / RadioSens3 Transmitter Programming in RSEC3 Receiver Adjust the sensibility and inhibition point Maneuver programming Programming the door maneuver without RadioSens3 system... -
Page 3: Maintenance
Maintenance Important safety instructions for installation Disconnect the power supply whenever you proceed to the installation or repair of the control panel. •The panel must be installed while the power is disconnected. •Before installing the panel, remove all unnecessary ropes or chains and disable any equipment such as locks that is not necessary for the automatic operation. -
Page 4: Technical Data
Technical Data Parameter Value Frequency 868,35 MHz Codification High security rolling code 27 codes (expandable to 500 codes with memory Memory card) Power supply 230Vac ±10% Maximum motor power 750W / 1200W (intensive use / residential use) Standby / operating consumption 23mA / 43mA Motor fuses Optional cards... -
Page 5: Connection
Connection jcmtechnologies... -
Page 6: Installation
Installation Installation with support UNSCREW EXTRACT SUPPORT DRILL WALL HANG CONTROL PANEL SCREW Installation without support UNSCREW OPEN TOP DRILL WALL Door Positioning DOOR OPENED PRESS CLOSE DOOR CLOSES DOOR CLOSED jcmtechnologies... -
Page 7: Programming
Programming Radio Manual Porgramming PRESS RPROG PUSHBUTTON OPEN TOP LED TURNS ON PRESS TRANSMITTER PRESS RPROG PUSHBUTTON LED TURNS OFF Total Reset PRESS PROG PUSHBUTTON OPEN TOP BRIDGE MR SEVERAL BEEPS PRESS PROG PUSHBUTTON END RESET LED TRUNS OFF jcmtechnologies... -
Page 8: Safety Devices Programming
Safety devices programming RadioBand3 / RadioSens3 Transmitter Programming in RSEC3 Receiver PRESS PROG BUTTON OF THE PLUGABLE CARD PRESS PROG ONE BEEP AND RSEC3 TRANSMITTER PROGRAMMED LED TURNS ON LED TURNS OFF AND END SLIDE THE COVER TO PROG CLOSE PRESS RPROG BUTTON Adjust the sensibility and inhibition point In order to adapt the operation of the system to the irregular conditions of the floor, the equipment can be inhibited the lasts... -
Page 9: Maneuver Programming
Maneuver programming Programming the door maneuver without RadioSens3 system PRESS RPROG PRESS START PUSHBUTTON PUSHBUTTON DOOR CLOSED LED TURNS ON DOOR OPENS 2 SECONDS DOOR CLOSES DOOR STOPS AUTO DOOR OPENS AUTO PRESS START PUSHBUTTON DOOR STOPS AUTO AUTOCLOSE TIME DOOR CLOSES DOOR STOPS AUTO LED TURNS OFF... -
Page 10: Programming The Door Maneuver With Radiosens3 System
Programming the door maneuver with RadioSens3 system PRESS RPROG PRESS START PUSHBUTTON PUSHBUTTON DOOR CLOSED LED TURNS ON DOOR OPENS 2 SECONDS DOOR CLOSES DOOR STOPS AUTO DOOR OPENS AUTO PRESS START PUSHBUTTON DOOR STOPS AUTO AUTOCLOSE TIME DOOR CLOSES DOOR CLOSES AUTO *INHIBITION ZONE: DOOR STOPS AUTO... -
Page 11: Notes
Notes jcmtechnologies... -
Page 12: Regulatory Data
Regulatory Data EU Declaration of conformity JCM Technologies hereby declares that the product M8NF complies with the relevant fundamental requirements of the RED Directive 2014/53/EU, as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen; and with the 2011/65/EU RoHS Directive.
