SP Systems Yard Tender 189 Instructions

1618 Stanford Street, Suite "C", Santa Monica, CA 90404 (310) 449-1492 FAX: (310) 449-6912
Congratulations on the purchase of the Yard Tender 189 . These sprayers allow the easiest and most
comfortable way for all spraying projects. These units have been skillfully engineered to all but eliminate
the problems inherent in most sprayers. It is strongly recommend you carefully read and follow all the
information on this sheet before using, and then save for future reference.
Included in the box, please find the following:
1) PUMP HANDLE & PUMP LEVER.
2) SPRAYER (Pump Module installed).
3) SPARE PARTS (bag with locking pins & washer).

PUMP HANDLE

The pump handle is made of a tubular steel with a plastic grip
on one end, and a round tube welded to the opposite side at
right angle. The flat bar has a hole 1/2" in diameter. This hole

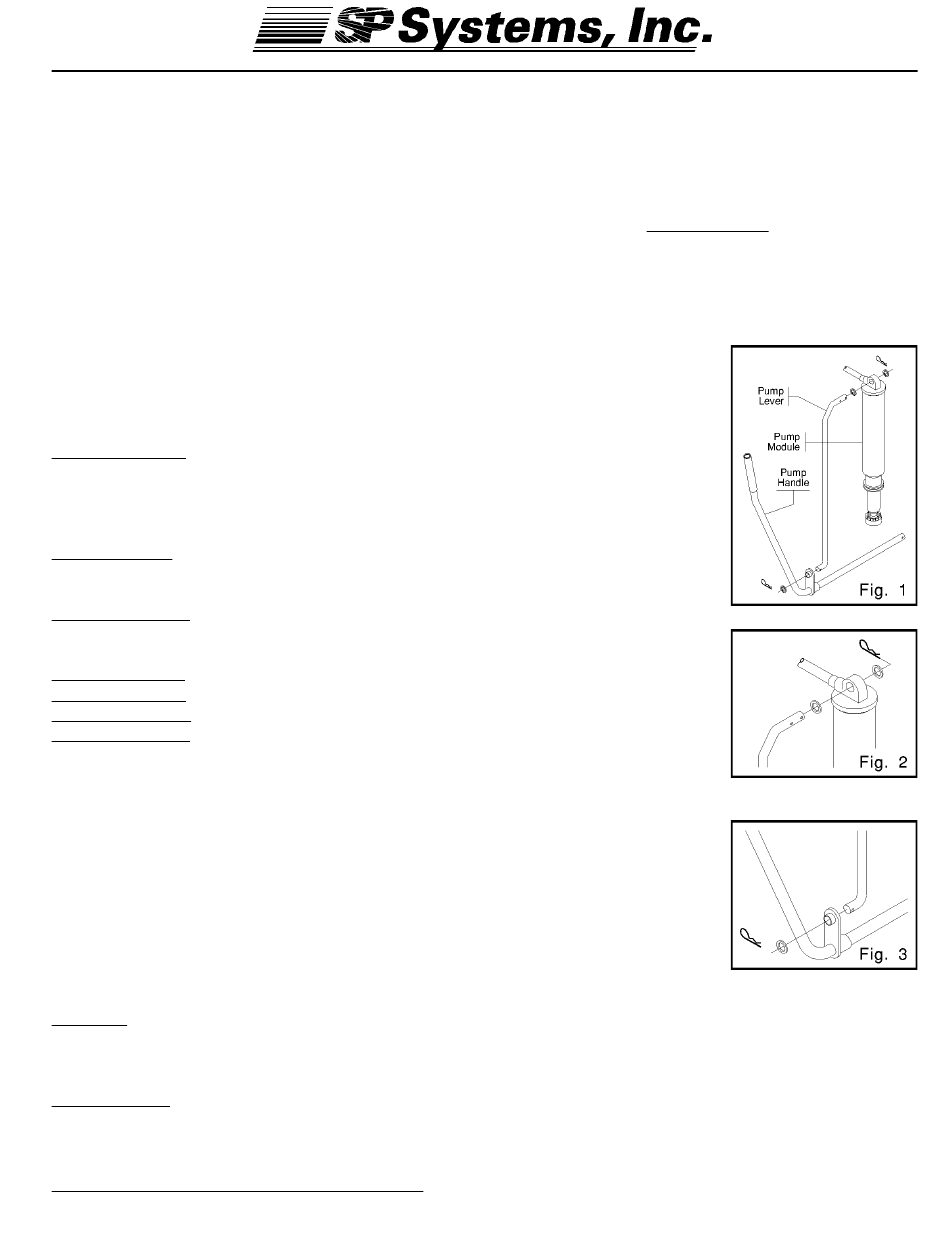

is located 2 1/4" from the round tube. (See figure 1).

PUMP LEVER

The pump lever is made of a 1/2" solid round steel bar with two
bends, one on either side of the bar. (See figure 1).

PUMP MODULE

Pump module is installed in the sprayer. Now proceed to
install pump handle and lever.
ASSEMBLY OF Pull sprayer, pump lever, pump handle, spray wand, plastic
PUMP HANDLE bag (with washers and pins), etc. out of box. Place parts in
PUMP LEVER & front of you. Take the pump lever, there are bends on either
PUMP MODULE side. (See figure 2). Place one washers through the bar, then
push lever through opening on pump, place washer on pump
lever and then place hairpin lock and push through.
On the same side where the pump is located, place the round
portion of the pump handle through the hole on the base of the
sprayer. When it is almost through, place the bent portion of
the pump lever through the hole on the flat portion of the
handel. Once through, place on one washer and then the
locking pin. (See figure 3). The round tube comes through the
base of the unit and extends out 1/4", exposing the hole drilled
through the tube. Place on the other washer and the other
holding pin. The pump handle assembly is now complete.

STRAPS

Hook the plastic clip attached to the shoulder straps into the appropriate lateral
opening on the base of unit.
SPRAY WAND
Attach spray wand to spray gun and firmly tighten. To adjust nozzle, tighten (turn
AND NOZZLE
clockwise), cap for a fine atomized spray, or loosen (turn counter-clockwise), for a
coarser spray or solid stream.

HOW TO PREPARE YOUR UNIT FOR USE:

1. Always oil the seal inside the cap of unit before using, as well as the check valve. This will extend life
of seal, and it is important for obtaining a leakproff barrier.
INSTRUCTIONS Yard Tender 189
THE SPRAYER IS NOW READY TO USE.
