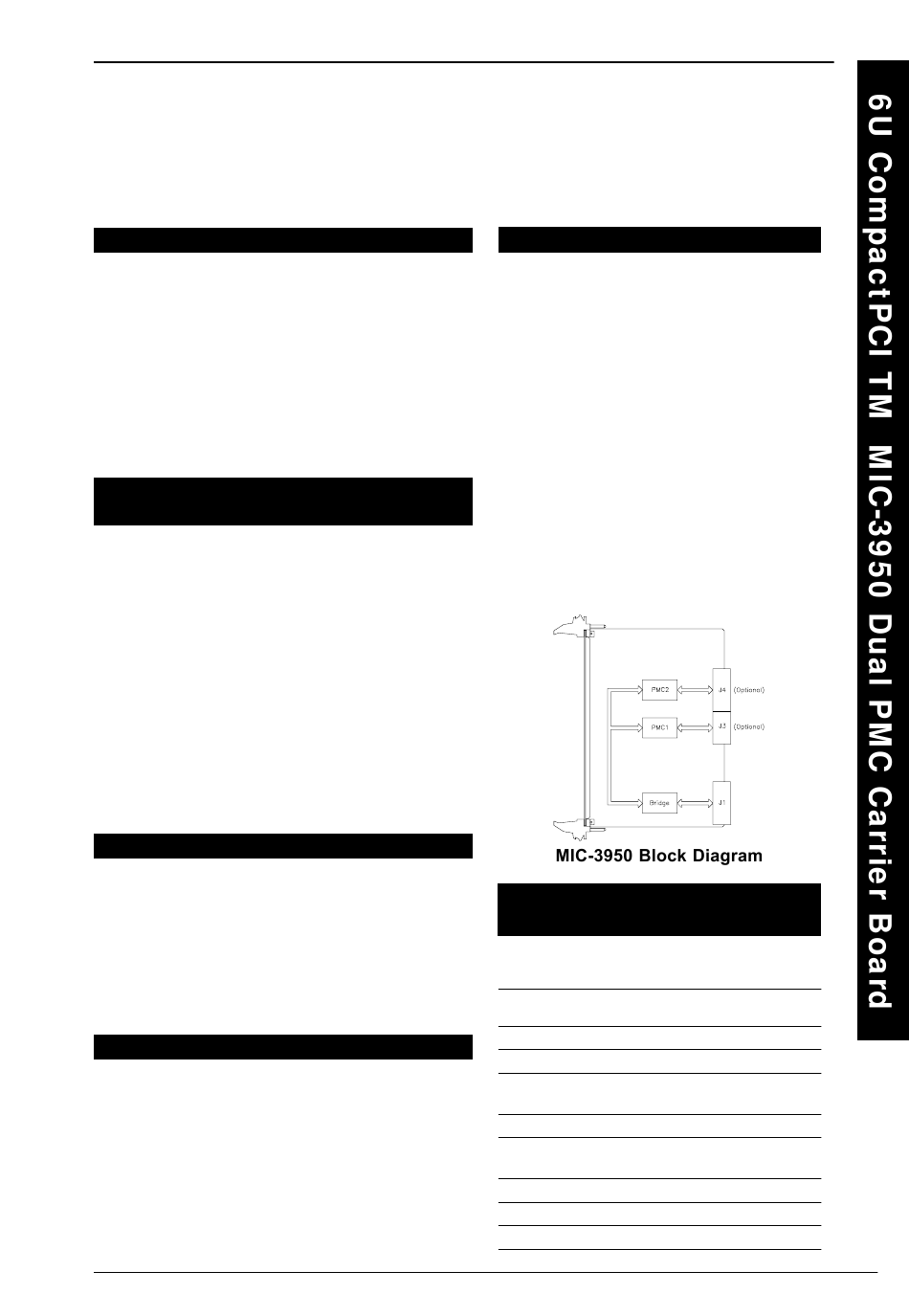

Advantech MIC-3950 Startup Manual

6U CompactPCI TM MIC-3950 Dual PMC 6U CompactPCI TM MIC-3950 Dual PMC 6U CompactPCI TM MIC-3950 Dual PMC
6U CompactPCI TM MIC-3950 Dual PMC 6U CompactPCI TM MIC-3950 Dual PMC
Car Carrier Boar Car rier Boar rier Board d d d d rier Boar
Car Car rier Boar
Packing List
Before installing your board, ensure that the following
materials have been received:
• One MIC-3950 CompactPCI PMC Carrier board
• One utility CD-ROM disc and user's manual(PDF file)
• One warranty certificate
• One Startup Manual
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Technical Support and Sales
Assistance
If you have any technical questions about the MIC-3950 or
any other Advantech products, please visit our support
website at:
• http://www.advantech.com.tw/support
For more information about Advantech's products and sales
information, please visit:
• http://www.advantech.com
Part No. 2002395010
Printed in Taiwan
Introduction
The MIC-3950 is a 6U CompactPCI carrier board which
compliant with IEEE1386.1 PMC modules.
It supports two single-width PMC mezzanie modules and
32-bit PCI operation.
Once connected, the modules are accessed via front panel
connections.
Features
• 6U CompactPCI form factor
• 32-bit/33MHz CompactPCI interface
• Support dual PMC modules
• On-board PCI-to-PCI bridge
MIC-3950 Startup Manual
Specifications
Specifications
• Bus Interface : 32-bit/33 MHz Compliance
CompactPCI Specification PICMG 2.0 R3.0
CompactPCI PMC I/O Mapping Specification
PICMG 2.3 R1.0
IEEE P1386.1 PMC Specification, R2.3
• PCI Bridge : TI
Bridge Chip
• Operating Temp: 0 ~ 60°C (32 ~ 140°F)
• Storage Temp: -20 ~ 80°C (-4 ~ 176°F)
• Humidity: 5 ~ 95% (non-condensing)
• Power Consump: 1 w @ 33 Mhz
• Board Size: 233.35 x 160 mm (6U size), 1-slot
(4 TE) wide
1st Edition
Oct. 2001
Indicator and Connector
Locations
Table 1-1: MIC-3950 connector and indicator
descriptions
J1
bus
J3, J4
J11, J12
J21, J22
BUS
J14, J24
JP2
Arbiter
JP3,JP4
JP5
JP6
Part no. 2002395010 1st Edition
TM
2250 PCI-to-PCI Interface
Primary CompactPCI™
Rear I/O transition
PMC-1 32-bit PCI bus
PMC-2 32-bit PCI
PMC modules I/O
Internal/External
PCI Bridge mode
PVIO voltage selector
SVIO voltage selector
Printed in Taiwan October 2001
1
