LaserLiner MultiMeter-Compact Operating Instructions Manual

LaserLiner MultiMeter-Compact Operating Instructions Manual

Hide thumbs Also See for MultiMeter-Compact:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
AC
AC
DC
DC
MultiMeter-Compact
DE
02
GB
14
NL
26
DK
38
FR
50
ES
62
IT
74
PL
86
FI
PT
SE
NO
TR
RU
UA
CZ
EE
LV
LT
RO
BG
GR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiMeter-Compact and is the answer not in the manual?

Questions and answers

Related Manuals for LaserLiner MultiMeter-Compact

Summary of Contents for LaserLiner MultiMeter-Compact

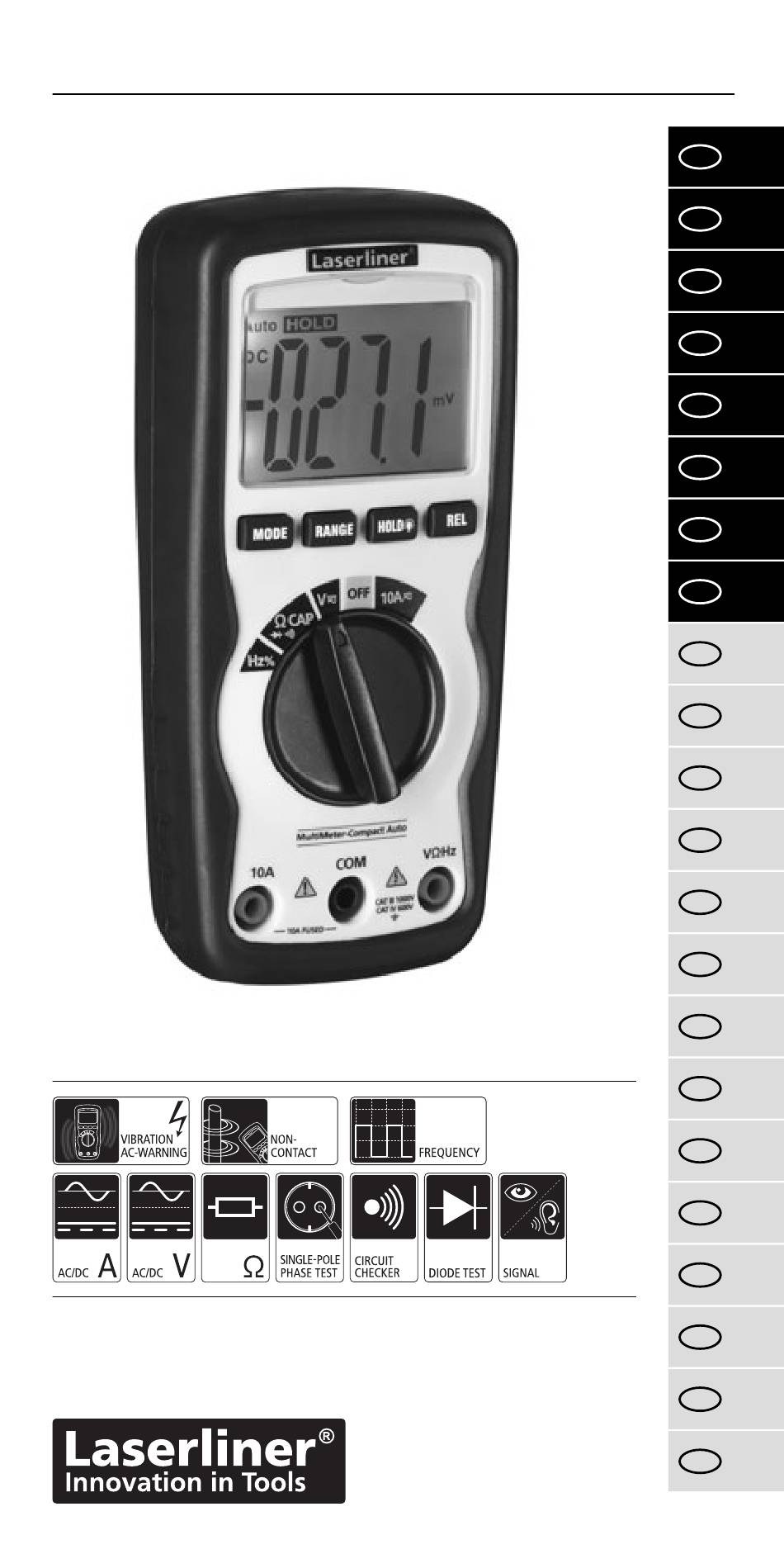

  • Page 1 MultiMeter-Compact...
  • Page 2 Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. Safely keep these documents for future reference. Function/Application Multimeter for taking measurements in the range of the overvoltage category CAT III up to max. 1000 V/CAT IV up to max 600 V. The meter can be used to measure DC and AC voltages, direct and alternating currents, resistances, capacitances, frequencies and duty factors within the speci ed ranges;...

  • Page 3: Safety Instructions

    MultiMeter-Compact Safety instructions • Make sure that you always select the correct connections, the correct rotary switch position and the correct range for the measurement to be taken. • Before measuring or checking the resistance, continuity, diodes or capacitance, disconnect the power supply to the electric circuit.
  • Page 4 Black Rotary switch to set the Measured value display measuring function (4 segments, 4000 digits) Low battery charge Red input socket (+) Black COM socket (–) Negative measured values Red 10 A input socket (+) Direct (DC) or alternating (AC) variables Select range manually Automatic range selection Switch over measuring...

  • Page 5: Maximum Input Power

    MultiMeter-Compact Maximum input power Function Maximum input V DC/V AC 1000 V DC, 1000 V AC A DC/AC 10 A DC/AC (max. 30 seconds every 15 minutes) Frequency, resistance, capacitance, 1000 V DC/AC duty factor, diode test, continuity test AUTO OFF function In order to preserve the batteries, the meter switches off automatically if it is left idle for 15 minutes.
  • Page 6 Connection of test prods The black test prod (–) must always be connected to the „COM socket“. When taking current measurements, the red test prod (+) must be connected to the „10 A socket“. For all other measuring functions, the red test prod must be connected to the „V HZ socket“.

  • Page 7: Resistance Measurement

    MultiMeter-Compact Voltage measurement DC/AC To take a voltage measurement, turn the Black rotary switch to position „V“ and press the „Mode“ button to set the voltage mode (AC, DC). Then connect the measuring contacts to the object to be tested. The measured value acquired and the polarity appear on the display.

  • Page 8: Continuity Test

    Continuity test To test continuity, turn the rotary switch Black to position „ “ and press the „Mode“ switch twice to activate the „Continuity test“ function. Then connect the measuring contacts to the object to be tested. A measured value of < 150 ohms is recognised as continuity;...

  • Page 9: Capacitance Measurement

    MultiMeter-Compact Capacitance measurement To take a capacitance measurement, turn the rotary switch to position „CAP“ Black and press the „Mode“ button three times to activate the „Capacitance measurement“ function. Then connect the measuring contacts to the object to be tested. In the case of poled capacitors, connect the positive pole to the red test prod.

  • Page 10: Comparative Measurement

    Comparative measurement The comparative measurement function takes a measurement relative to a reference value that has been saved previously. This enables the difference between the current measured value and the saved reference value to be displayed. Press the „REL“ button whilst a reference measurement is being taken in the corresponding measuring function.

  • Page 11: Replacing The Fuse

    MultiMeter-Compact Non-contact voltage detection is no substitute for conventional voltage testing. As the device detects an electrical eld, it will react even to static charge. Voltage detection, single-pole phase test For reasons of safety, you must disconnect the black measuring lead from the COM socket on the device to take this measurement.

  • Page 12: Technical Data

    Calibration The meter needs to be calibrated and tested on a regular basis to ensure it produces accurate measurement results. We recommend carrying out calibration once a year. Technical data Function Range Accuracy 400.0 mV ± (0.5% rdg ± 2 digits) 4.000 V DC voltage 40.00 V...
  • Page 13 MultiMeter-Compact Duty factor 0.1%…99.9% ± (1.2% rdg ± 2 digits) Diode test 0.3 mA ± (10% rdg ± 5 digits) Polarity Sign for negative polarity 0 … 3999 Fuse 10 A/600 V quick-acting, 240 A2/s (6.35 x 31.8 mm) Protection class...
  • Page 14 SERVICE Umarex GmbH & Co KG – Laserliner – Möhnestraße 149, 59755 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: +49 2932 638-333 laserliner@umarex.de Umarex GmbH & Co KG Donnerfeld 2 59757 Arnsberg, Germany Tel.: +49 2932 638-300, Fax: -333 www.laserliner.com...
