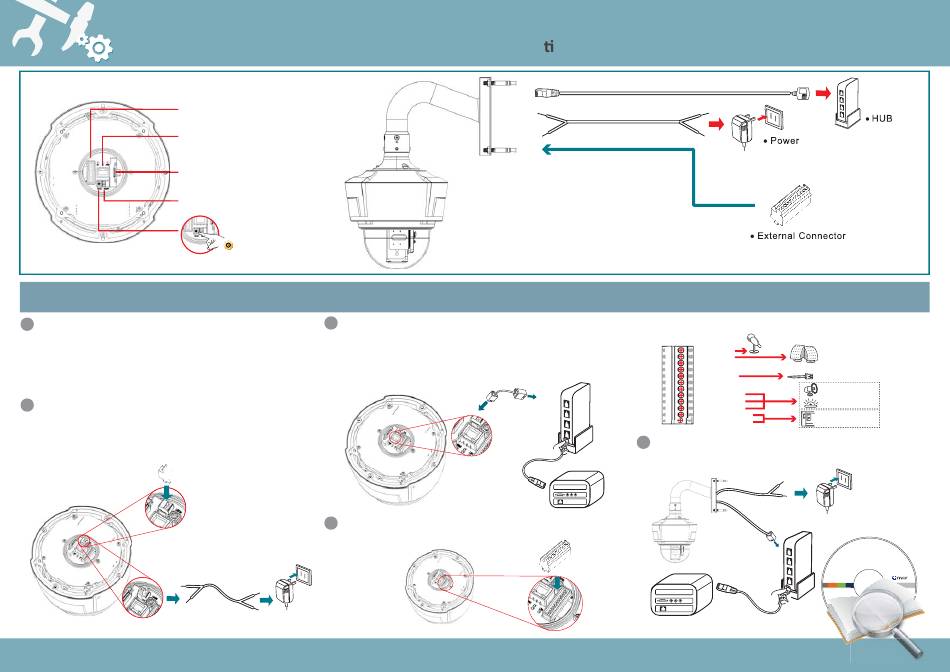

3S Vision N5011 Connection Diagram

External I/O Connector
LAN Socket
Micro SD Card Slot
(SDHC up to 32GB)
AC/DC Power Inlet
Connect the product to the switch hub and PC.
1
Connecting up
Prepare the product, your PC and switch hub
ready for connection.Make sure that your PC
has a LAN port available for connection to the
network cable of the product.
2
Connect to the power outlet
Connect with your power adaptor directly
using the wisted pair (not supplied) after plug
the supplied 2pin connector into J20 as shown.
J20
(Not supplied)
RMIM-01G05038 Ver:03
Speed Dome Network Camera
RESET Button
5 seconds
3
Connect the switch hub to your PC
Use a network cable and plug it in the LAN
port of the product.
Plug the other end of the cable in the LAN
port of the hub.
4
Plug the External I/O connector
Plug the supplied external I/O connector into
J17 as shown.
Twisted-Pair
Power
●
Connec on Diagram
HUB
●
5
Turn on the power
Turn on the power of the PC and hub.
PC
●
J17
For more information, please refer to the attached CD.
External I/O setting
MIC
●
Pin 1 Audio in
Pin 2 Audio out Speaker
●
Pin 3 GND
Pin 4 GND
DC out (12V)
Pin 5 DC 12V out
●
Pin 6 RS485+
High dB alarm
Pin 7 RS485-
●
Pin 8 Alarm Out NO
Pin 9 Alarm Out COM Alarm
●
Pin 10 Alarm Out NC
Pin 11 Alarm K (Alarm in)
IR Infrared receiver
●
Pin 12 Alarm A (Alarm in)
● Power
● HUB
● PC
Network Camera
