Zicom Z.HA.HA.MC.ATOUCH.SENSOR User Manual

Wireless Door/Window
Contact
Z.HA.HA.MC.ATOUCH.SENSOR
User Manual
Introduction
Z.HA.HA.MC.ATOUCH.SENSOR
The is a Door/Window
Contact that can be installed on doors, windows, and any other
objects that can be open and close. The sensor transmits signals
to the control panel when a magnet mounted near the sensor is
moved away. It will also transmit alert signal to the control panel
in case of low battery The tamper protection ensures that
sabotage attempts to move the contact will result in an alarm
activation.

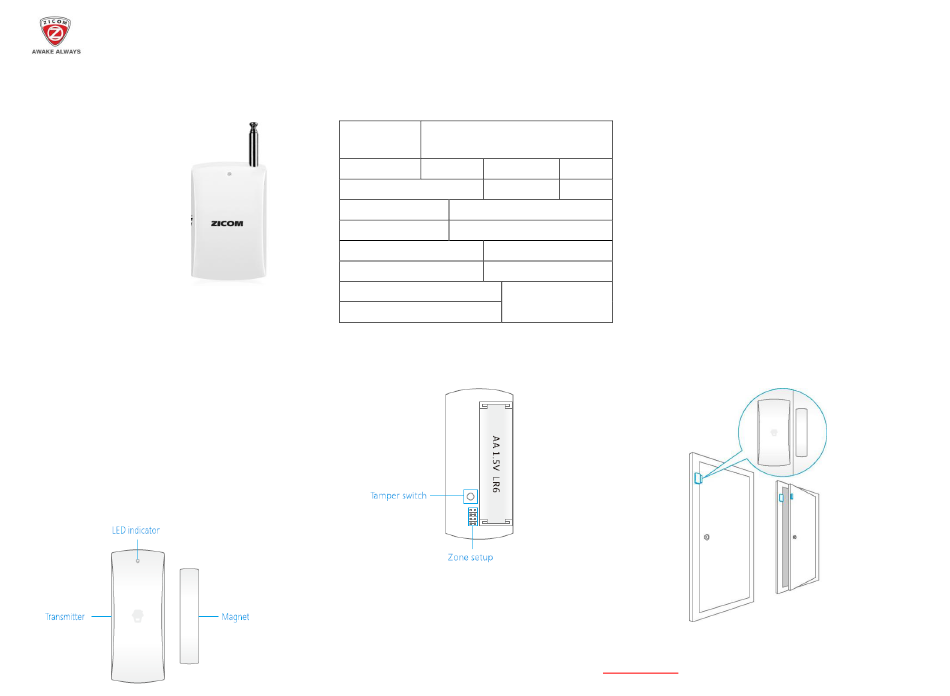

Product Overview
Specifications
Power supply DC 1.5V (AA 1.5V LR6 Battery x 1 pc)
Static current <35uA Alarm current
Transmitting distance < 80m (in open area)
Radio frequency 315MHz/433.92MHz (±75KHz)
Housing material ABS plastic
Operating temperature 0°C~+55°C
Relative humidity < 80% (non-condensing)
Transmitter dimensions (LxWxH)
71x34 x 17.5mm
Magnet dimensions (LxWxH)
51 x 12 x 13.5mm
PCB Layout
Zone setup
NOTE: When tamper switch is triggered, it will send out alarm signa
immediately.
LED Indication
LED flashes once: Door/window is opened and transmitter
sends signal to the control panel.
Flash once per 3 seconds:
battery as soon as possible. (User will get alert SMS about the
low battery if the door contact is connected to the GSM alarm
<40mA
system.)
Installation & Notice
Open the case and remove the battery activation strip.
Mount the sensor on the door frame and the magnet on the
door.
Make sure the magnet is on the right side of the transmitter
Place the transmitter in the desired location, mount the
magnet no more than 1cm away from the transmitter and
secure the transmitter and magnet with double-sided tapes or
screws.
Avoid mounting sensors in areas with a large quantity of metal
or electrical wiring, such as a furnace or utility room.
Zicom Electronic Security Systems Ltd.|
th
Address: 501, 5 Floor, Silver Metropolis, Goregoan (E), Mumbai–400 063, India.
Website: www.zicom.com | Toll Free : 1-800-270-4567
Low power indication, please change
