Zicom Z.HA.HA.SC.ATOUCH.SENSOR User Manual

Shutter Door Sensor
Z.HA.HA.SC.ATOUCH.SENSOR
User Manual

Introduction

The Z.HA.HA.SC.ATOUCH.SENSOR
Sensor is used for rolling gates. When the Metal Magnet and the
Metal Reed Switch are separated more than 2cm, it will transmit
wireless alert signal to the connected control panel immediately.
The lifespan of the battery depends on the frequency of
opening and closing the door/gate, the normal battery's service
life is about 12 to 15 months.

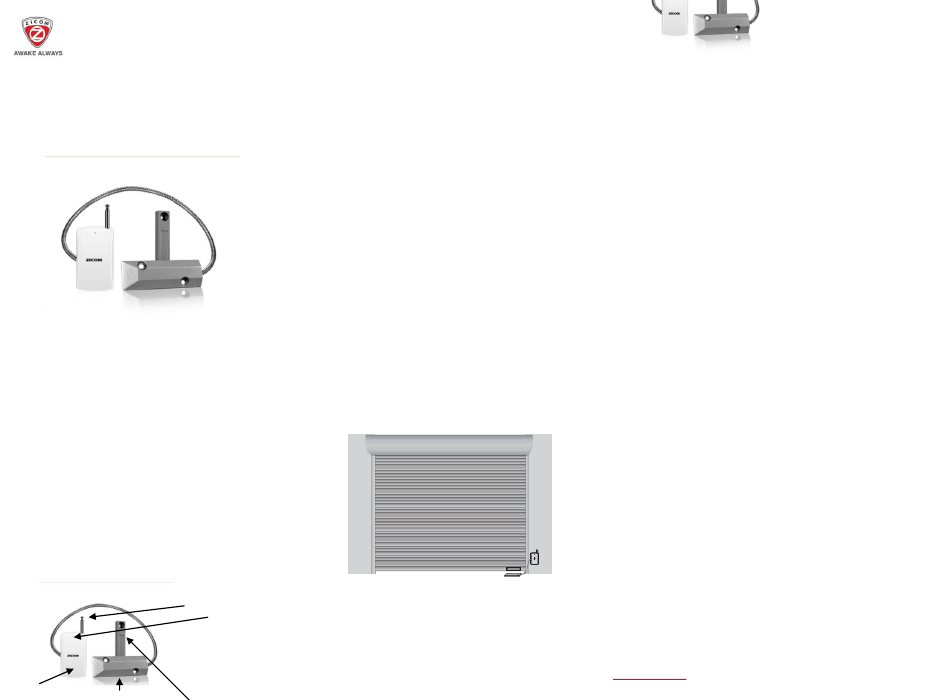

Product Overview

Antenna
Transmitter
Metal Reed Switch Metal Magnet

LED Indication

Flashes once:
Flashes once every 3
the batteries as soon as possible.

Pair with Control Panel

1. Make sure the control panel enters Pairing Accessory State
(Please refer to the details in the control panel's user manual)
2. Separate the Metal Magnet and the Metal Reed Switch for more
than 2cm. The control panel beeps once to indicate a successful
pairing.

Installation

Roller Shutter Door
Important:
Led Indicator
Please test the sensor to make sure the
connected control panel can receive the transmitting signal of the
sensor before fixing it in place.
Door opening is detected.
seconds: Low power indication; please change
Zicom Electronic Security Systems Ltd.|
Address: 501, 5
Website: www.zicom.com | Toll Free : 1-800-270-4567
Install the sensor inside the house.
Steps:
1.Metal magnet: Install it on the bottom of the rolling gate which
can move up and down, it should be parallel to the ground but
don't over the bottom.
2. Metal reed switch: Install it on the ground and make sure the
distance between the metal magnet is less than 2cm.
3. Transmitter: It is connected with the metal reed switch and
should be mounted on the wall beside the rolling gate (Away from
the gate as far as possible because metal may disturb wireless
transmission).
4. Test: Set the control panel to Arm State, close the gate and
open it over 2cm, the sensor is working well if the LED indicator
flashes once and the system alarm goes off
Note: If only LED indicator flashes once but the system alarm does not go
Z.HA.HA.SC.ATOUCH.SENSOR
off, please pull out the antenna of
move the control panel a little closer to the sensor.

Specifications

Battery DC 3V (AAA 1.5V LR03 x 2 PCS)
Static Current < 23 uA
Alarm Current < 40 mA
Transmitting Distance < 80m (in open area)
Radio Frequency 315 MHz/433.92MHz (±75KHz)
Housing Material ABS + Aluminum Alloy
Operation Condition Temperature -10°C~+55°C
Relative Humidity < 80% (non-condensing)
Metal Magnet Dimensions (L x W x H) 105.5 X 15.5 X15.5 mm
Metal Reed Switch Dimensions (L x W x H) 105.5 X 38 X 9.6 mm
Transmitter Dimensions (L x W x H) 107 X 54 X 14.5 mm
