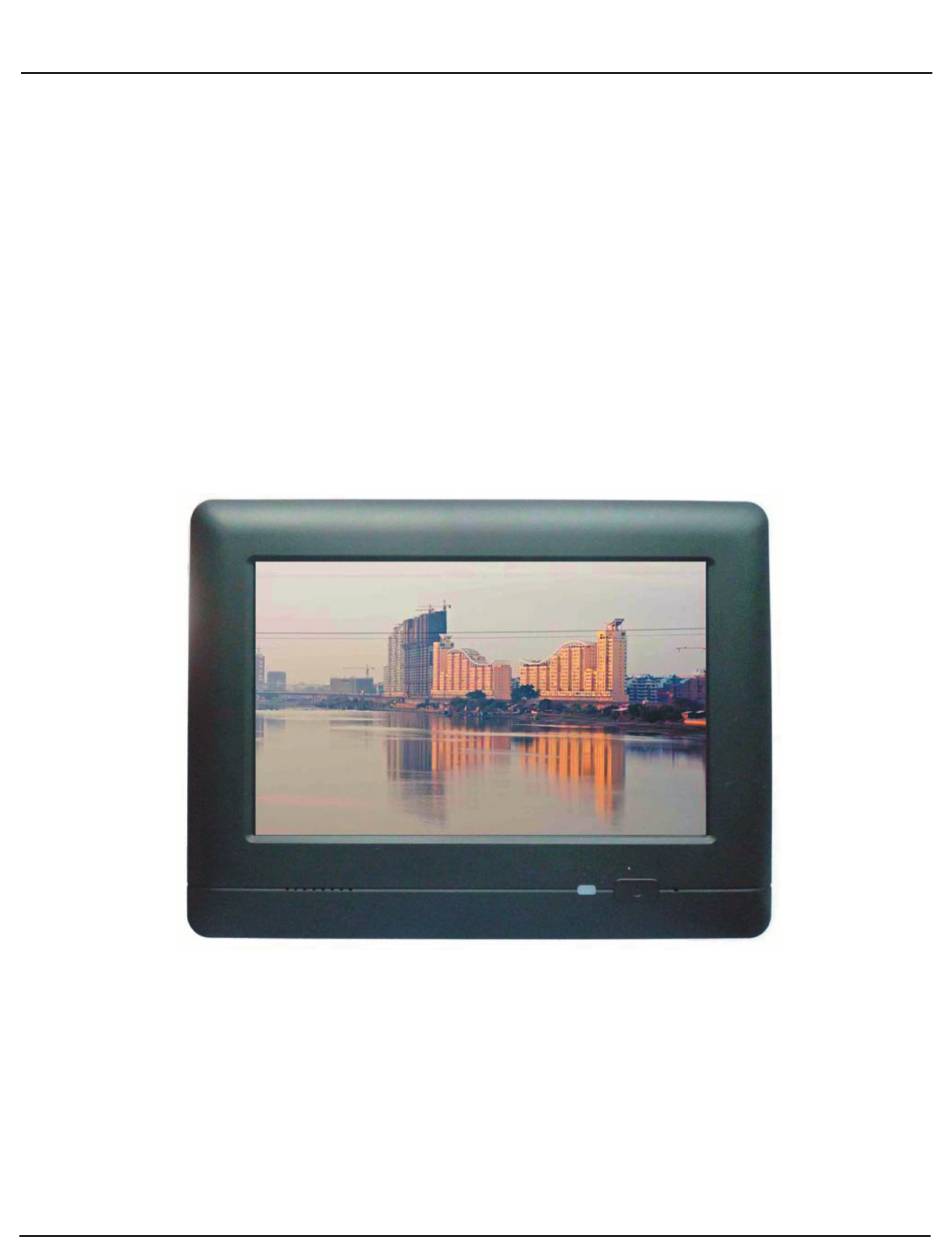

  • Page 1 Touch Screen PC Industrial Control Device GK-7000 Manual - 1 -...
  • Page 2: Table Of Contents

    Touch Screen PC Contents 1 Introduction ............................... 3 2 Product Overview ............................. 4 2.1 Appearance & Interfaces ........................4 2.2 Casing Dimension ..........................6 2.3 Battery Installation ..........................7 2.4 Whole Installation ..........................8 3 Touch screen calibration ........................... 9 4 Specifications ............................
  • Page 3: Introduction

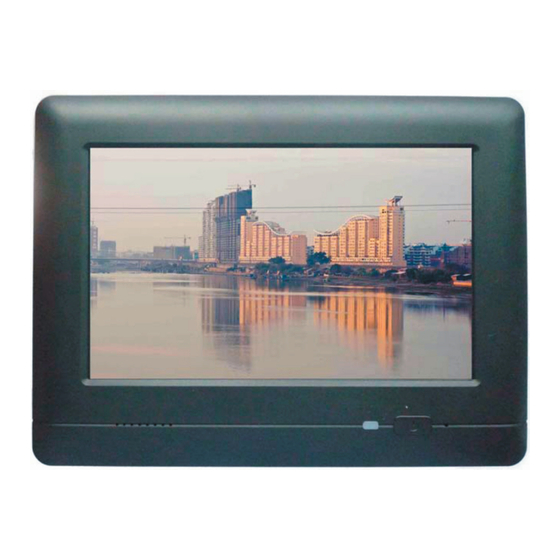

    Touch Screen PC 1 Introduction GK-7000, a highly performance embedded industrial control device, which made by our company. It has a core CPU of S3C2440 processor (based on ARM Frame), with Microsoft Windows CE 5.0 operating system. With features of rich resource, interfaces, low consumption and high reliability, etc.
  • Page 4: Product Overview

    Touch Screen PC 2 Product Overview 2.1 Interfaces &Appearance 1. Ethernet 2. USB Host 3. USB Interface 4. SD Card slot 5. SD Card insert direction 1. Earphone jack 2. RS232 3. USB Interfaces 4. RS485: connect RS485 communication line A, B, Z, Y from left to right. 5.
  • Page 5 Touch Screen PC 1. Battery interface 2. SD Card slot 3. RS232 and RS485 switch 1. Speaker orifice 2. Indicator light: It turns green when power on with or without battery. It turns red when charging power on, then turns green when charge full. It also turns red when charging power off, then quench when charge full. 3.
  • Page 6: Casing Dimension

    Touch Screen PC 2.2 Casing Dimensions (mm) - 6 -...
  • Page 7: Battery Installation

    Touch Screen PC 2.3 Battery Installation a) Battery: b) Plug power line into socket of battery slot. c) After plug in and put the battery into slot. d) Settle the power line in the slot, then finish installation. - 7 -...
  • Page 8: Whole Installation

    Iron sheet or Wall Whole device About VISA Mounting Process for GK-7000 Lock the 4 screws (semicircle 04) through the holes of iron sheet or wall up to the standard VISA sockets at the back of device. (Ps: with the standard of thickness is 1mm for iron sheet or wall, the length of screw is 6mm;...
  • Page 9: Touch Screen Calibration

    Touch Screen PC 3 Touch Screen Calibration If the touch screen can’t respond your click, please run the touch screen calibration program. a) Connect the power and press the power key to open, directly enter into the OS of Windows CE b) Click “My Device”...
  • Page 10 Touch Screen PC d) Then click “Stylus” e) Select “Calibration” in “Stylus Properties” dialog box f) Click “Recalibrate” to begin the calibration. - 10 -...
  • Page 11 Touch Screen PC g) During calibration, hold on your finger or touch pen on the cross center of the screen until it moves to an- other area on the screen. Operational step: When the object is movable in screen, repeat this action. (there are 5 proof read points) h) Arbitrarily click the screen after calibration.
  • Page 12: Specifications

    Touch Screen PC 4 Specifications Screen 7” Color TFT LCD Resolution/Brightness 800×480 / 300 cd/m2 Input Mode Touch DC Input 9V—12V Audio Output ≤<=1.2W Power Consumption 10W—12W Interfaces RS232/RS485/SD slot(up to 2G)/Ethernet ARM9 32bit 400MHZ processor Memory 64MB FLASH, 128MB SDRAM Dimension(LWD) 200×151×50 mm Weight...
  • Page 13: Safety Instructions

    Touch Screen PC 6 Q & A A) Power Issues Can not power on 1) Bad connection. a) Please check the connector plugs and connector jack. Ps: Please make sure that power switch cable connected well to avoid unnecessary problems. B) Screen Issues 1) No display.
