Summary of Contents for Lilliput TM-1018

  • Page 1 User Guide...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS:  Please read User Guide before using this product.  Please keep User Guide for future reference.  Please read the cautions to prevent possible danger and loss of property. FEATURES:  Capacitive touch screen  170° Wide viewing angles; ...

  • Page 3: Product Description

    1. PRODUCT DESCRIPTION 1．Dial: turn up and down to adjust the value of menu option; press to confirm. 2．INPUT: circularly switch among of VIDEO, HDMI, VGA and SDI. 3．F1-F3: User-definable buttons. Default function: F1: Waveform F2: Vector F3：Level Meter （function customized to meet your needs）...
  • Page 4 1. VGA interface. 2. Battery power on/off switch: “O” is power off; “|” is power on. 3. DC 12V power input. 4. DC/TALLY connector. 5. HDMI input interface. 6. HDMI output interface (Optional). 7. Video output interface. 8. A / V input interface. 9.

  • Page 5: Installation Of Sunshade And Battery Plate

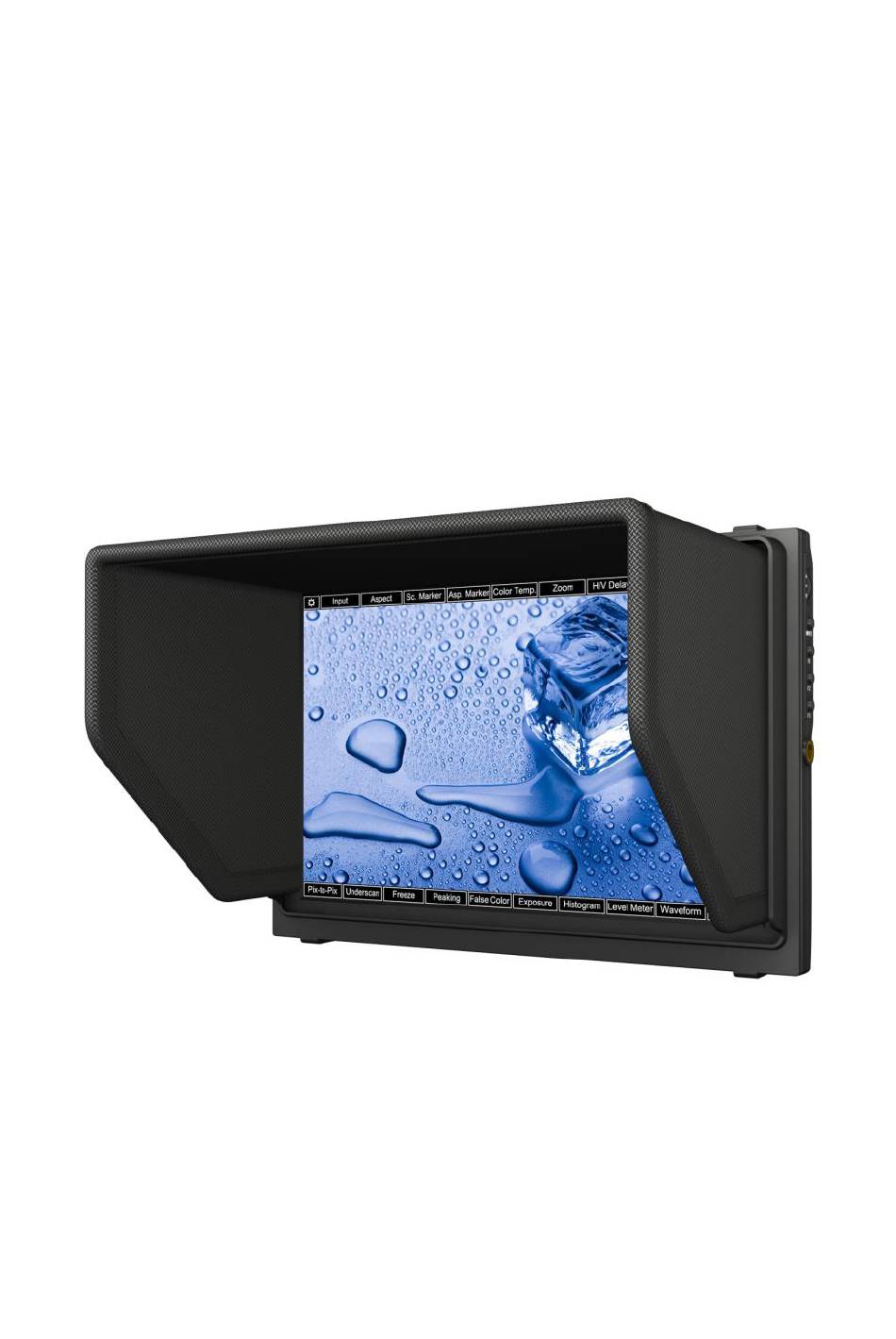

    3. INSTALLATION OF SUNSHADE AND BATTERY PLATE Installation of sunshade: ① As shown, buckle the upward side of sunshade cover on the device. ② As shown, press the under buckles of sunshade cover at the same time. ③ As shown, bend sunshade panel to meet and paste with sunshade interlocking.

  • Page 6: Dv Battery Mount Plate

    4. DV BATTERY MOUNT PLATE Standard mounts process Following three types of battery plates are suitable for this device, model F970, QM91D, DU21 & LP-E6 (choose 2 out of 4). MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6 DV Battery Mount Plate: DV Battery Mount Plate Specification: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with...

  • Page 7: Wiring Instructions

    V-mount battery plate (optional): Please refer to GP-L130AB type battery specifications. V-mount Battery Plate Plate Bracket Anton Bauer mount battery plate (optional): Please refer to GP-L130B type battery specifications. Anton Bauer Mount Battery Plate Plate Bracket 5. WIRING INSTRUCTIONS Composite cable White: audio L Red: audio R Yellow: video...

  • Page 8: Menu Setting

    6. MENU SETTING Before setting the functions, please make sure the device is connected correctly. 6-1. Touch Control Gesture Swipe up to activate the shortcut menu. Swipe down to hide the shortcut menu. (Unable to hide shortcut menu without signal input.) 6-2.
  • Page 9 Dial Operation 6-3. Turn down the dial to activate Brightness adjustment. Turn up and down to adjust the value directly. Press the dial to activate options switch among of “Brightness, Contrast, Saturation, Sharpness, Hue, Volume and Exit”. (Option adjusted currently will be default option when user press the dial next time.) 6-4.
  • Page 10 6-4-2. Clock” ”, enter the menu options “ ” is return,” ” is exit. ① Main interface ② Picture ITEMS OPTIONS 0 – 100 Brightness 0 – 100 Contrast 0 – 100 Saturation 0 – 100 0 – 100 Sharpness 0 –...
  • Page 11 ③ Display ITEMS OPTIONS Auto OFF, ON 0 – 63 Phase Options under VGA 0 – 100 Clock mode. 0 – 100 H-Position 0 – 100 V-Position Image Flip OFF, ON Color Bar OFF, ON ④ Color Temp ITEMS OPTIONS Color Temp 6500K/ 7300K/ 9300K/ User R Gain...
  • Page 12 ⑤、Marker ITEMS OPTIONS Center Marker OFF, ON Marker Color Red, Green, Blue, White, Black 0 – 7 Marker Mat 1 – 8 Thickness ⑥ PIP ITEMS OPTIONS PIP Mode Small, Medium, Large, PBP, POP PIP Source Video, VGA , HDMI and SDI (SDI is optional) PIP position Upper Left, Upper Right, Lower Left, Lower Right...
  • Page 13 ⑦ Setting ITEMS OPTIONS Language English, Chinese LOGO ON, OFF Camera 480P / 1080I (5DII Mode) (5DIII Mode) Peaking Color Red, Green, Blue, White, Black 0 – 100 Peaking Lever 0 – 100 Exposure Lever Reset Upgrade...

  • Page 14: Accessories

    7. ACCESSORIES Standard Accessories: 1. Sun Shade Cover 1 Piece 2. Gimbal bracket 1 Piece 3. HDMI A/C cable 1 Piece 4. Mini XLR & TALLY cable 1 Piece 5. 12V DC adapter 1 Piece 6. Shoe Mount (for camera only) 1 Piece 7.

  • Page 15: Parameters

    8. PARAMETERS 10.1” LED Back light Panel Physical Resolution 1280×800 Brightness 350cd/㎡ Contrast 800: 1 Viewing Angle 170° / 170° (H/V) Input Voltage DC 7-24V Input Signal AV, HDMI, VGA and SDI (SDI is optional) ≤ 10W Power Consumption Operating Temperature -0℃~50℃...

This manual is also suitable for:

Tm-1018/s
