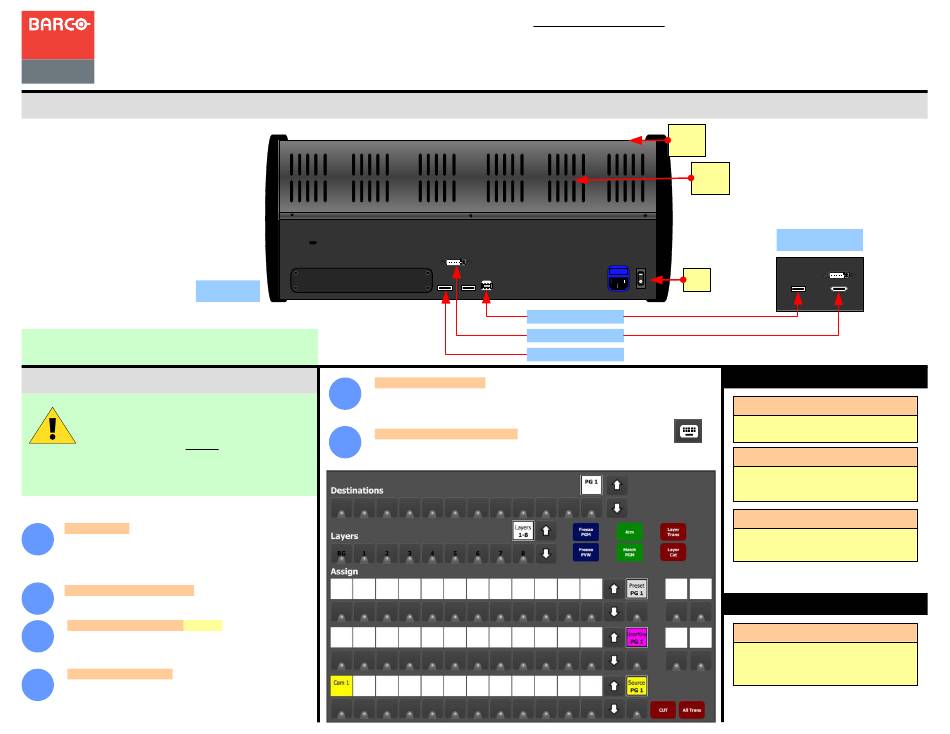

Barco Event Master EC-50 Series Quick Start Manual-Setup

Event Master Series EC-50
Quick Start Guide - Setup
Visibly yours
EC-50 Rear
For detailed installation instructions, refer to the Event
Master devices User's Guide.
System Setup
System setup is comprised of sequences,
each of which includes many steps.
For error-free setup, always refer to the
associated sections in the Event Master devices User's
Guide.
Connections — Connect the external screen and USB
1
communication from the host computer to the DVI and USB
B connector on the EC-50. Necessary cables are provided in
a new system. In the case that the original cables are
missing, simply use standard computer cabling to make
these connections.
Power Up and Status Check — Power up the
2
EC-50 control panel, Host computer and peripherals.
Touch Screen Calibration — (Optional) The operating
3
system on the host computer provides this capability as it
would for any standard touchscreen. Refer to the OS manual
for the correct procedure.
Communications Setup — During the Event Master Toolset
4
installation you are asked to add a driver, be sure to answer yes
to this question in order to use the EC-50 with your host
computer. If the driver is not installed the EC-50 will not work.
Event Master Series Controller Installation: System Connections
Panel
Startup state of the desk — Once the desk is connected and started it will retrive the
5
button assignment of the configuration. If there is none it will have to be assigned.
Assigning resources to the desk — In the Event Master Toolset, click on the
6
icon to open the controller menu setup page. Drag and drop the resources from the right
side onto the buttons corresponding to the ones on the console.
Barco Technical Support:
USA: +1 (866) 374-7878
EMEA :
+32 (56) 36 8019
CHINA : 40088 22726

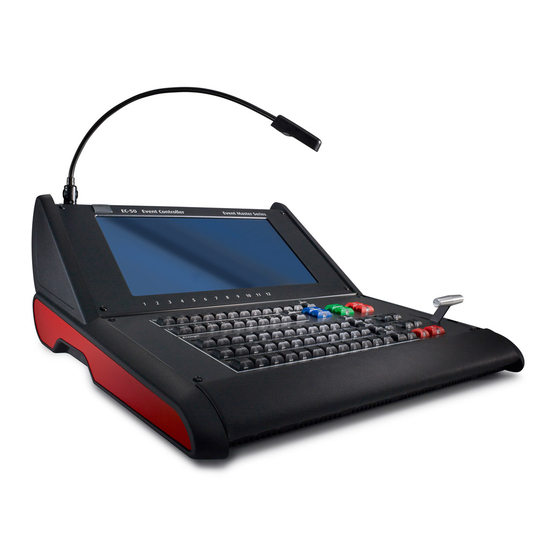

EC-50 Event Controller
DVI-D
USB
USB B to Host
DVI-D Screen Input to Host
2 x USB A
www.barco.com/support/eSupport.aspx
Script
Light
Back
light
Eventsmaster Toolset
Host computer
AC
LEDs
Back light
The Red backlight on the EC indicates power is
on. This light does not turn off.
Scriptlight
One flexible scriptlight connection and a LED
powered light adapter is supplied. Light can be
adjusted for brightness.
Front light
White light under the hand rest is for reading show
scripts. Light can be turned on and off.
Indications
Blue LEDs in Destination
If the Blue LED´s of the Destination buttons chase
back and forth they indicate that the
communication with the host controller is not
establisched.
P/N 60600332, Rev 00
