Suitmate Swimsuit Water Extractor Installation

®
The SUITMATE Swimsuit Water Extractor has been designed and manufactured with safety as
our primary consideration. Therefore, it is important that the unit be installed correctly. It is also
important that the installation comply with all local building codes and regulations. Please consult
your local licensed plumbing and electrical engineers or contractors about your installation. Read
the entire INSTALLATION instructions before beginning your installation. Remember: DO IT
RIGHT and DO IT SAFE!
PROPER LOCATION FOR THE SUITMATE
Following is a list of factors to consider in determining a location for the SUITMATE
1. The unit should be located in an area that is near where people remove and rinse out their
swimsuits.
2. The unit should NOT be located in a cluttered area or where it is exposed to direct shower
water or water hose down.
3. The unit should be mounted on a wall structure that will support the unit's approximate 60
pounds hanging weight plus the added weight or pressure of people leaning on the unit.
Consult the PROPER WALL MOUNTING section of these instructions to determine an
appropriate location.
4. There should be a means to dispose of the wastewater from the unit. Consult the PROPER
DRAINAGE section of these instructions to determine an appropriate location.
5. The unit should be wired to 115-volt (AC), 20-ampere 60Hz dedicated circuit. Consult the
PROPER ELECTRICAL CONNECTIONS sections of these instructions to determine proper
location.
PROPER WALL MOUNTING OF THE SUITMATE
®
The SUITMATE should be mounted to the wall with the Mounting Bracket that is provided with
the unit. The SUITMATE
location for the mounting holes, the electrical service, and the wastewater outlet (if utilized). The
®
SUITMATE Mounting Bracket must be secured to a wall stud, or to concrete block or cinder
block wall.
WARNING!
TO WALL
MOUNTING
SCREWS
115VAC 60 Hertz

INSTALLATION

®
Utilities Location Diagram (page 5) shows the recommended
Anchors in drywall are not sufficient to mount the SUITMATE
LAG
SCREWS
Installation Instruction
®

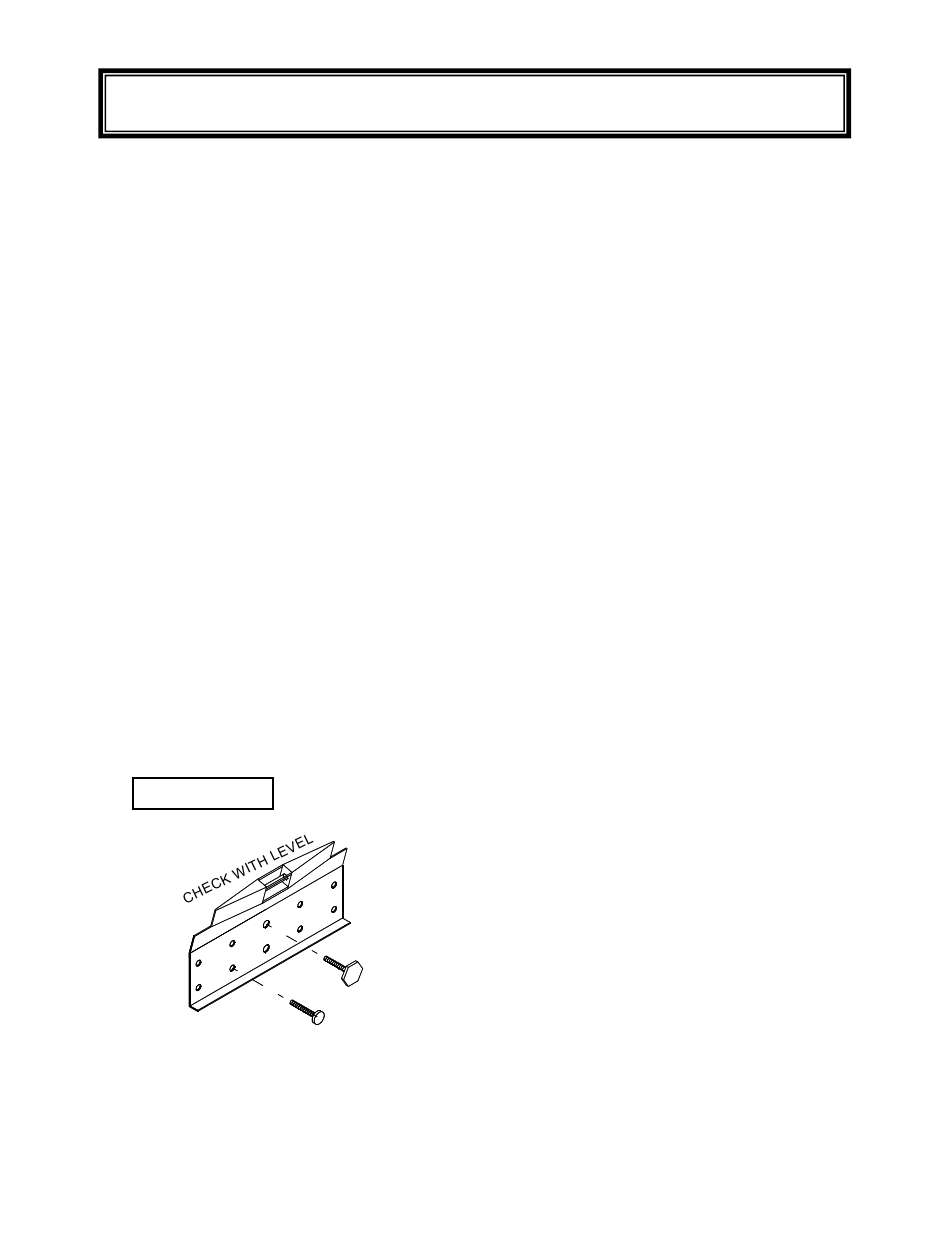

Locating and Security the Mounting
Bracket to the Wall
The recommended height from the floor to the
®
top of the SUITMATE is 42 inches. At least an
additional 10 inches of clearance above the
®
SUITMATE is needed for the opening and
closing of the lid. This means that the top edge
of the Mounting Bracket should be 39 1/2 inches
from the floor. Use the SUITMATE
LOCATION DIAGRAM to determine a location
on the wall that provides adequate clearance, a
strong and secure place for the Mounting
Bracket as well as easy access to electrical and
drainage connections.
®
.
®
®
.
®
UTILITIES
