Traction Hobby CRAGSMAN Adjusting Manual

本产品为RTR车架产品，在出厂前都已经调试完成，如您不小心将遥控器恢复出厂设置或者
更换新的THT6遥控器，那么请您仔细阅读以下相关注意事项！
This product's standard version is RTR. It has been adjusted and ready to run. If
you accidentally reset the transmitter, change another new THT6 or servos, please
read the following guide carefully!
注意：接收机接线图、车架功能舵机位置和遥控器通道按键说明请阅读说明书!
Note: Please read the THT6 Instruction Manual to know the receiver's connection,
Servos' positions and Transmitter's Channel key!
1.调试前遥控器的基本设置(Basic settings of the transmitter before adjusting ):
2.4GHz FHSS
6-Channel Radio Control System
M:MODEL1 8.1V
TH T6
ST
TH
P r e s s b o t h

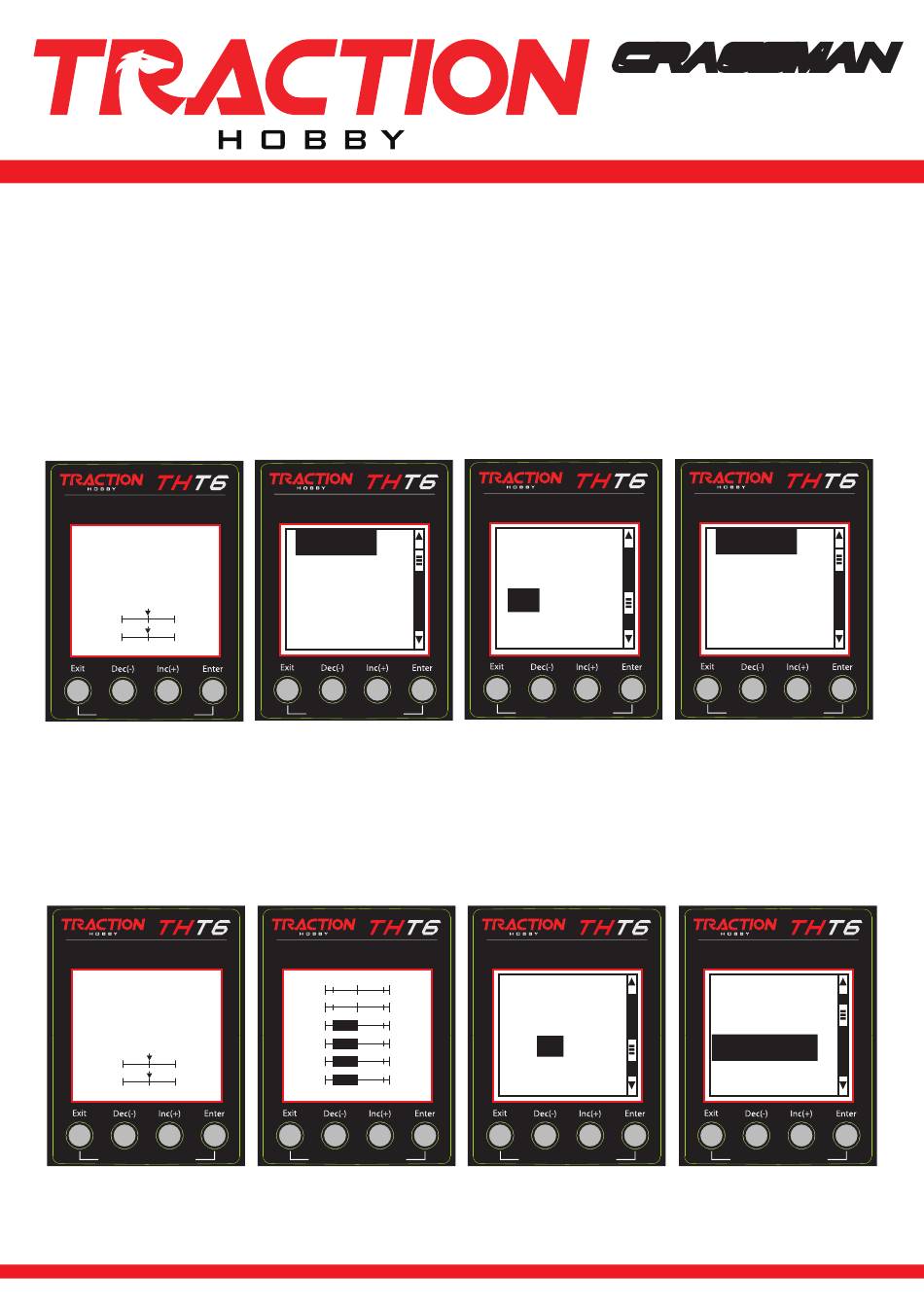

（1）.打开遥控器，同时按"Exit"与"Enter"按键，进入主菜单，按"Dec（-）"或"Inc（+）"选择"LANGUAGE"选项，按"Enter"按键
进入子菜单，按"Dec（-）"或"Inc（+）"选择到"中文"选项，按"Enter"按键确认，按Exit退回主菜单，如图显示设置中文成功，按Exit退
回开机界面；
Turn on the transmitter , press both "Exit" and "Enter" key to enter the main menu, press "Dec(+)"or "Dec(-)" to select the
"Language" option, press "Enter" key to enter the sub-menu, press "Dec(+)"or "Dec(-)" to select "English",then press "Enter"
to confirm, press "Exit" to return to the main menu. If the setting is as shown in figure , press "Exit" to return to the boot interface.
注意：如果您需要使用英文界面请直接从选项(2)开始设置！
NOTE:if you need to use English menu,please start to set from the option (2)
2.4GHz FHSS
6-Channel Radio Control System
M:MODEL1 8.1V
TH T6
转向
油门
P r e s s b o t h
（2）.按"Exit"键,拨动开关，使各开关位置如图所示，同时按"Exit"与"Enter"按键进入主菜单，按"Dec（-）"或"Inc（+）"选择
"16.辅助通道"选项，按"Enter"按键进入子菜单按"Dec（-）"或"Inc（+）"选择四通，按"Enter"键，对应光标闪动，按"Dec（-）"
或"Inc（+）"停留在"LK-A"按"Enter"键确认光标停止闪动，按"Dec（-）"或"Inc（+）"键依次选择"五通"和"六通"选项，调整为
"五通：SwC"和"六通：SwB"之后，按"Enter"键确认，所有光标停止闪动，按"Exit"键退出到主菜单界面,按"Dec（-）"或"Inc（+）"
选择"3.单边舵量"选项，按"Enter"按键进入子菜单；
2.4GHz FHSS
6-Channel Radio Control System
1.LANGUAGE 1.LANGUAGE
2.MODEL
3.EPA
0
4.STEXP
0
P r e s s b o t h
2.4GHz FHSS
6-Channel Radio Control System
CH1:
CH2:
CH3:
CH4:
CH5:
0
CH6:
0
P r e s s b o t h
2.4GHz FHSS
6-Channel Radio Control System
[LANGUAGE]
ENGLISH
中文
中文
V3.1.0(FHSS)
P r e s s b o t h
2.4GHz FHSS
6-Channel Radio Control System
[辅助通道]
0
0
三通：VR
-100
四通：LK-A LK-A
-100
-100
五通：SwC 六通：SwB
-100
P r e s s b o t h
1
CRAGSMAN
调试指南
ADJUSTING MANUAL
http://www.tractionhobby.com/
