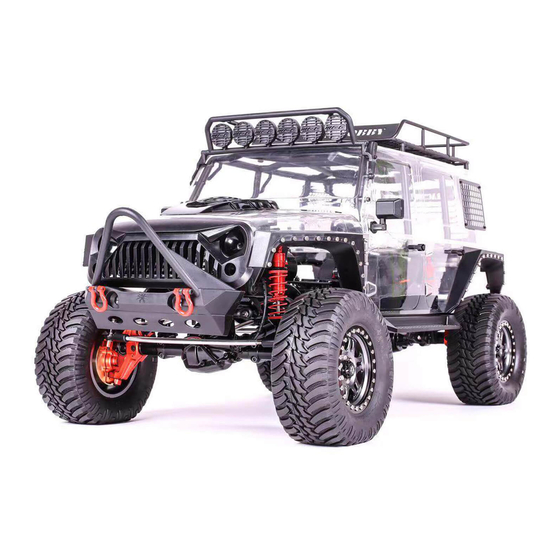

- Page 1 O F F - R O A D PERFORM ANCE 1 / 8 t h S C A L E E L E C T R I C...
-
Page 2: Equipment Needed
founder CAUTIONS To prevent serious personal injury and/or property damage, operate all remotely controlled models in a responsible manner as outlined herein. CHOOSE THE RIGHT PLACE TO OPERATE YOUR R/C MODEL. Do not run on public streets or highways. This could cause serious accidents, personal injuries, and/or damage. Never run R/C models near people or animals. -
Page 3: Receiver Connection
founder Chassis top view Steering Servo Rear Diff Lock Servo 2WD/4WD Shifting Servo 2 Speed Shifting Servo Front Diff Lock Servo Receiver Connection CH1: Steering Servo CH2: Brushed ESC CH3: 2WD/4WD Shifting Servo CH4: 2 Speed Shifting Servo CH5: Front Diff Lock Servo CH6: Rear Diff Lock Servo BATTERY CH 6... -
Page 4: Radio Maintenance
founder Radio Maintenance Antenna Channel 5 Channel 6 Steering Wheel (Channel 1) LED Indicator Throttle Trim BIND (Channel 2) NaviKey Steering Trim (Rotate to “Select”, press to (Channel 1) “Confirm”) BACK/Exit Throttle/Brake (Channel 2) Power Switch 3 Position Switch (Channel 4) Steering Button... - Page 5 founder Servo Function Maintenance(CH3-CH6) This product’s standard version is RTR. It has been adjusted and ready to run. Ifyou accidentally reset the transmitter, change another new THT6 or servos, please read the following guide carefully! Before setting, make sure you have already setup the CH1(Steering) and CH2(Throttle), and no other servos connected to the CH3-CH6. Make sure the car is power on, throttle servo and steering servo is active, overhead the 4 wheels to make the wheels off the ground.
-
Page 6: Steering Link
founder Portal Axle Steering System Maintenance THJ212 3× 14mm THJ239 THJ329 3× 28mm THJ327 3× 20mm THJ056 THJ212 3× 14mm A：120.2mm PANHARD BAR B：126.8mm C：125.7mm These three installation states setup are based on 90mm shock ‘A’ state is standard state, ‘B’ and ‘C’ states are setup with Ackermann steering For ‘B’... -
Page 7: Front Assembly
founder THJ058 THJ259 THJ058 THJ297 THJ299 THJ259 THJ212 THJ058 THJ259 THJ297 THJ339 THJ038 THJ058 THJ058 THJ239 THO025 THO026 THJ058 THJ259 THJ276 THJ259 THJ329 THJ259 THJ325 THJ058 THJ086 THJ334 THJ338 THJ259 THJ343 THJ341 THJ339 THJ339 THJ058 THJ407 THJ325 THJ239 THJ259 THJ056 THJ058 THO025... -
Page 8: Transmission Assembly
founder THJ333 THJ260 THJ350 THJ359 THJ212 THJ293 THJ255 THJ260 THJ333 THJ335 THJ352 THJ302 THJ212 THJ084 THJ207 THJ237 THJ252 THJ343 THJ367 THJ302 THJ335 THJ303 THJ290 THJ304 THJ256 THJ293 THJ358 THJ350 THO012 THJ344 THO003 THJ350 THJ344 THJ310 THJ367 THJ292 THJ237 THJ252 THJ084 THJ313 THJ252... -
Page 9: Chassis Assembly
founder THJ346 THJ080 THO034 THJ406 THJ322 THJ346 THJ321 THJ269 THJ350 THJ322 THJ237 THJ321 THJ207 THJ237 THJ264 THJ321 THJ358 THJ212 THJ350 THJ207 THJ324 THJ352 THJ324 THJ212 THJ324 THJ213 THJ324 THJ213 THJ324 THJ269 THJ311 THJ358 THJ361 THJ321 THJ321 THJ406 THJ319 THJ321 THJ344 THJ324 THJ344... -
Page 10: Rear Assembly
founder THJ340 Shock Assembly THJ333 THJ333 THJ295 THJ259 THJ058 THJ275 THJ049 THJ239 THJ070 THJ243 THJ298 THJ055 THJ058 THJ333 THJ259 THO025 THJ243 THJ207 THJ312 THJ084 THJ298 THJ277 THJ259 THJ315 THJ237 THO025 THJ237 THJ040 THJ259 THO025 THJ399 THJ237 THJ306 THJ084 THO025 THJ058 THO025 THJ314... -
Page 11: Body Assembly
founder THO028 THJ403 THO032 THJ405 THJ403 THJ065 THJ062 THJ204 THJ065 THJ218 THJ064 THJ204 THJ203 THO031 THJ403 THJ067 THJ209 THJ402 THO031 THJ403 THJ405 THJ403 THJ064 THO031 THJ403 THJ403 THO032 THJ062 THJ203 THJ204 THJ064 THJ204 THJ204 THJ322 THJ369 THO028 THJ066 THJ204 THO028 THJ204 THJ204... -
Page 12: Roll-Cage Assembly
founder THO102 THO102 THO033 THJ369 THO102 THJ204 THJ209 THJ063 THO033 THJ403 THJ204 THO033 THJ212 THJ063 THJ062 THJ065 THO033 THJ063 THJ065 THJ218 THJ202 THJ403 THJ404 THO033 THJ204 THJ213 THJ218 THJ062 THJ404 THJ213 THJ062 THJ403 THJ207 THJ333 THJ213 THJ212 THJ064 THJ202 THJ063 THJ209 THJ207... -
Page 13: Modular Assembly
founder STEERING LINK 194 mm DRAG LINK THJ240 PANHARD BAR THJ327 THJ326 THJ327 THJ240 THJ039 THJ039 UPPER LINK THJ244 THJ244 THJ327 LOWER LINK THJ239 THJ326 THJ039 THJ244 THJ338 THJ069 THJ039 THJ338 THJ244 THJ069 THJ090 THJ219 THJ089 THJ239 THJ327 THJ088 THJ091 THJ213 THJ221... - Page 14 founder Parts List THJ007 Pinion gear 14T(1pc) THJ311 Bearing 5×8×2.5mm(1pc) THJ026 Slipper plate(1pc) THJ312 Spring D2.6×12.7mm(1pc) THJ038 King pin bushing(1pc) THJ313 Spring(1pc) THJ039 Drive shaft(2pcs) THJ314 Pin 2.0×11mm(10pcs) THJ040 Hex hub 12mm(2pcs) THJ315 Pin 2.0×21mm(10pcs) THJ058 Ball 7mm(5pcs) THJ316 Pin 2.5×8mm(10pcs) THJ074 Slipper spring(1pc)
