Summary of Contents for Harvest Healthcare AIR-TECH HHAIRT001

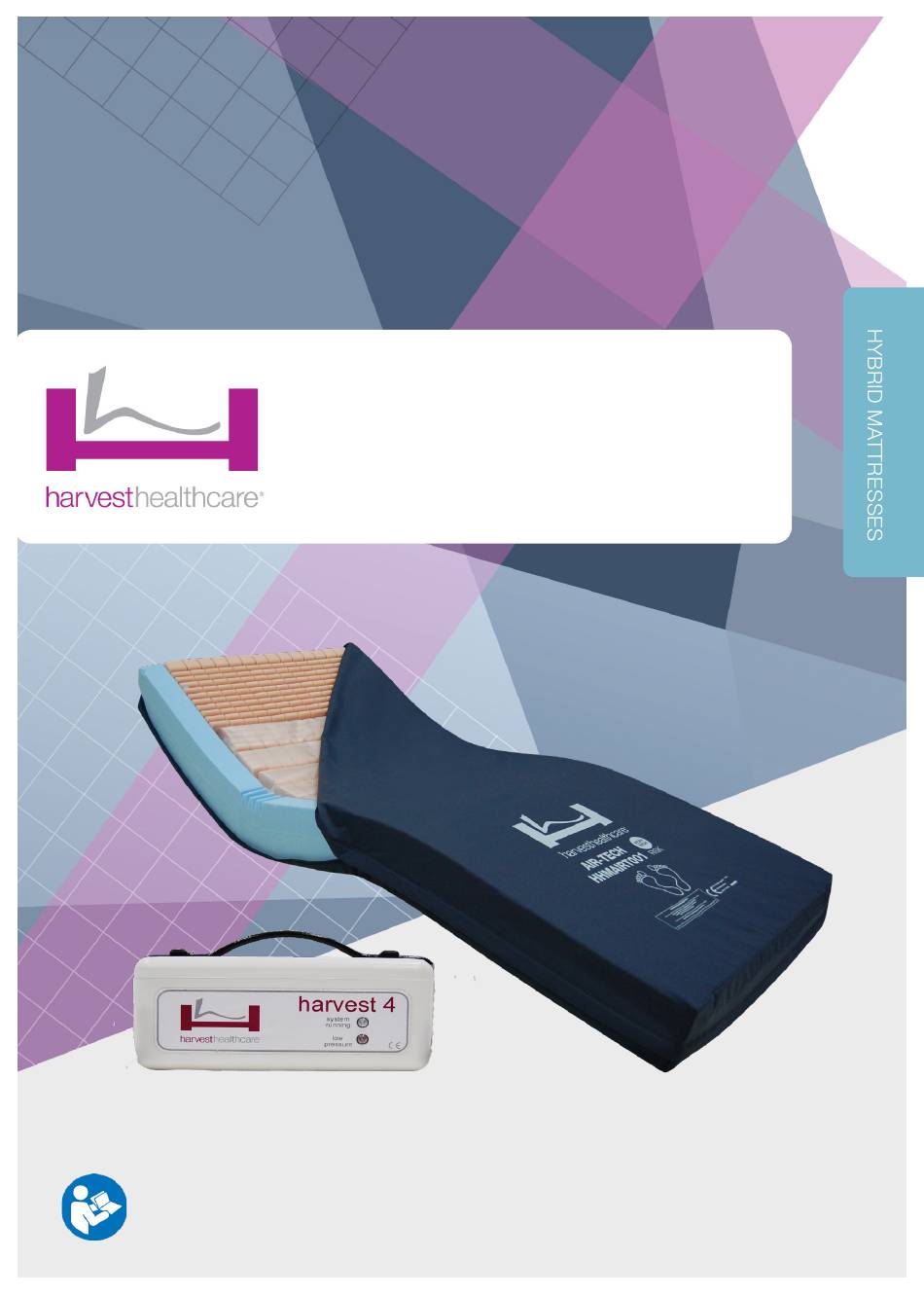

- Page 1 General User/ Safety Guide AIR-TECH HYBRID MATTRESS www.harvesthealthcare.co.uk E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 2 T +44 (0)1709 377172 F +44 (0)1709 377173...
-
Page 3: Table Of Contents
CONTENTS WARNINGS & CAUTIONS GENERAL INFORMATION 6-10 TECHNICAL SPECIFICATION OVERVIEW 12 -13 INSTALLATION 14-15 OPERATION 16-17 CLEANING & CARE 18-19 ROUTINE MAINTENANCE 20-21 TROUBLESHOOTING 22-25 PARTS LIST GUARANTEES & WARRANTIES DECLARATION OF CONFORMITY E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk... -
Page 4: Warnings & Cautions
Do not place device on or near a heat source or cover pump with bedding. • Harvest Healthcare advise against smoking whilst the system is in use, to prevent the accidental ignition of associated items which may be flammable, such as bed linen. - Page 5 WARNINGS & CAUTIONS • Do no expose the pump to liquids. • Do not use with hot water bottles or electric blankets. • Wireless equipment such as mobile phones should be kept at least 10ft / 3m away from the system. •...
-
Page 6: General Information
Read through this instruction manual conscientiously from start to finish. Please note that the various safety instructions must be observed. Harvest Healthcare products bear the CE mark and meet all safety and functionality requirements. These safety requirements can only be met if the user is satisfied with the proper condition of the product (including accessories) before use. - Page 7 GENERAL INFORMATION DEFINITION OF THE GROUPS MENTIONED OPERATOR An operator is any natural or legal person who uses the equipment or on whose instruction it is used (e.g. nursing homes, specialised retailers, health insurance companies, medical suppliers). USER / CARE PERSONNEL Users are persons who as a result of their vocational training, experience or briefing are authorised to operate the equipment.
- Page 8 GENERAL INFORMATION The mains cable must be free and not be allowed to be caught up in the bed’s moving mechanisms. The mains cable may be torn out of its strain relief and damaged or it may be pulled out of its socket and electric leads exposed as a result.
- Page 9 GENERAL INFORMATION SYMBOLS USED This symbol indicates general hazards. There is a danger to life and health. Conformity mark in accordance with the Medical Device Directive (93/42 EEC). The symbol for Protection Class II device, double insulated. The symbol for type B device according to EN 60601-1. Handle with care This way up Keep dry...
- Page 10 Any defects, damage or signs of wear must be rectified without delay. Only original spare parts from Harvest Healthcare may be used, otherwise all guarantees or warranties will be excluded. See pages 20-21 for Routine Maintenance and Servicing.
-
Page 11: Technical Specification
TECHNICAL SPECIFICATION AIR-TECH TECHNICAL SPECIFICATION Product Code HHAIRT001 Pump Model No. HPU4 Pressure Sore Risk Level Very High Risk Minimum Patient Weight 5 Stone / 32 kg Maximum Patient Weight 39 Stone / 247 kg Inflated Mattress Dimensions 2000 x 900 x 150 mm Mattress Weight 14 kg PUMP POWER REQUIREMENTS... -
Page 12: Overview
OVERVIEW SYSTEM OVERVIEW Mattress Cover The cover comprises of a two-way vapour permeable and a welded stretch PU top with a durable base fabric. Air-Tech Cells The Air-Tech has 7 pairs of independent cells which can be individually removed and replaced to allow for cost effective repair and in-depth cleaning. - Page 13 OVERVIEW PUMP OVERVIEW Feed Tube Connection Visual Low-Pressure Warning Power Switch Bed Hooks E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
-
Page 14: Installation
INSTALLATION INSTALLING THE AIR-TECH SYSTEM Remove the mattress from its packaging and lay the parts out on the floor. You should have the following items: • Mattress with feed tubes attached • Pump • Instruction booklet If you intend to keep this mattress system in storage please retain the packaging. - Page 15 INSTALLATION 1. Power Switch (audible warning reset) The power switch simply switches the mains power to the pump on and off. When the pump detects an audible warning condition, this can be silenced and reset by switching the pump off and then back on again. 2.
-
Page 16: Operation
OPERATION INFLATING THE MATTRESS Switch the pump On/Off switch to On: both LEDs on the control panel will illuminate to show the pump is switched on. The low pressure / system running LED will now illuminate to indicate the mattress is being inflated. - Page 17 OPERATION AUDIBLE/ VISUAL WARNING Audible / Visual Warning conditions are indicated by a flashing red display accompanied by an audible warning. In each case the user should respond by turning the Power Unit’s switch off and investigating the cause. 1. High Pressure Warning If the system pressure exceeds 100mmHg this warning will be activated.
-
Page 18: Cleaning & Care
Eye protection, gloves and protective clothing should be worn when carrying out cleaning and disinfection procedures When disinfecting the system, Harvest Healthcare recommends the following guidelines which have been developed to comply with recognised infection control procedures. These procedures are also to be used to prevent cross infection when transferring the system between patients. - Page 19 CLEANING & CARE PUMPS For general cleaning wipe with a soft cloth dampened with a mild detergent and water solution. This may be followed by either wiping with a sodium hypochlorite solution to a dilution of 1000ppm (parts per million) or by using alcohol wipes. DO NOT USE HYPERCARBONATE, PHENOL-BASED CLEANING SOLUTIONS, ABRASIVE COMPOUNDS OR CLEANING PADS.
-
Page 20: Routine Maintenance
• The individual cells can be wiped clean with a mild antiseptic solution. • All cells are replaceable and can be sourced from Harvest Healthcare. POWER UNIT Disconnect the power unit from the electricity supply before carrying out maintenance, repairs or cleaning. - Page 21 WEEE requirements, which apply to the pump and SMPS only. SERVICING YOUR SYSTEM The Air-Tech system should be serviced every 12 months by Harvest Healthcare approved personnel using genuine Harvest Healthcare spare parts. Failure to follow the service schedule may invalidate future warranty claims (Gurantees &...
-
Page 22: Troubleshooting
T +44 (0)1709 377172 F +44 (0)1709 377173... - Page 23 E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 24 T +44 (0)1709 377172 F +44 (0)1709 377173...
- Page 25 E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
-
Page 26: Parts List
PARTS LIST APPLIED PARTS Air-Tech Mattress (only) HHAIRT001 Air-Tech U Co Base Foam HHAIRT00F 2-Section Castellated Foam within a Cell HHAIRT002 HHAIRT003 4-Section Castellated Foam within a Cell HHAIRT004 2 and 4 Section Castellated Foam within a Cell HPU4 Harvest 4 Pump (only) HHAIRT001C Air-Tech Top Cover and Base T +44 (0)1709 377172... -
Page 27: Guarantees & Warranties
GUARANTEES & WARRANTIES MATTRESS (COVER AND INTERIOR COMPONENTS) All Harvest Healthcare Ltd Mattresses are covered by warranty for a period of 12 months from date of purchase. Damage through incorrect use and penetration by sharp instruments will invalidate this warranty. -
Page 28: Declaration Of Conformity
DECLARARTION OF CONFORMITY Declaration of Conformity Annex VII EU Directive 93/42/EEC Harvest Healthcare Limited We, as company: Sheaf House Bradmarsh Way Bradmarsh Business Park Rotherham, S60 1 BW Air-Tech PRIME COMFORT ACTIVE Confirm on our own behalf that the medical product: ACTIVE MATTRESS SYSTEM Complies with all applicable requirements in Appendix I of the EU directive 93/42/EEC. - Page 29 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................ E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 30 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................ T +44 (0)1709 377172 F +44 (0)1709 377173...
- Page 31 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................ E sales@harvesthealthcare.co.uk www.harvesthealthcare.co.uk...
- Page 32 Harvest Healthcare Limited. Company No: 07210261 Our Full Terms & Conditions are available by request or can be found on our Website. Harvest Healthcare reserves the right to alter or amend this document without notice. T +44 (0)1709 377172 F +44 (0)1709 377173...
