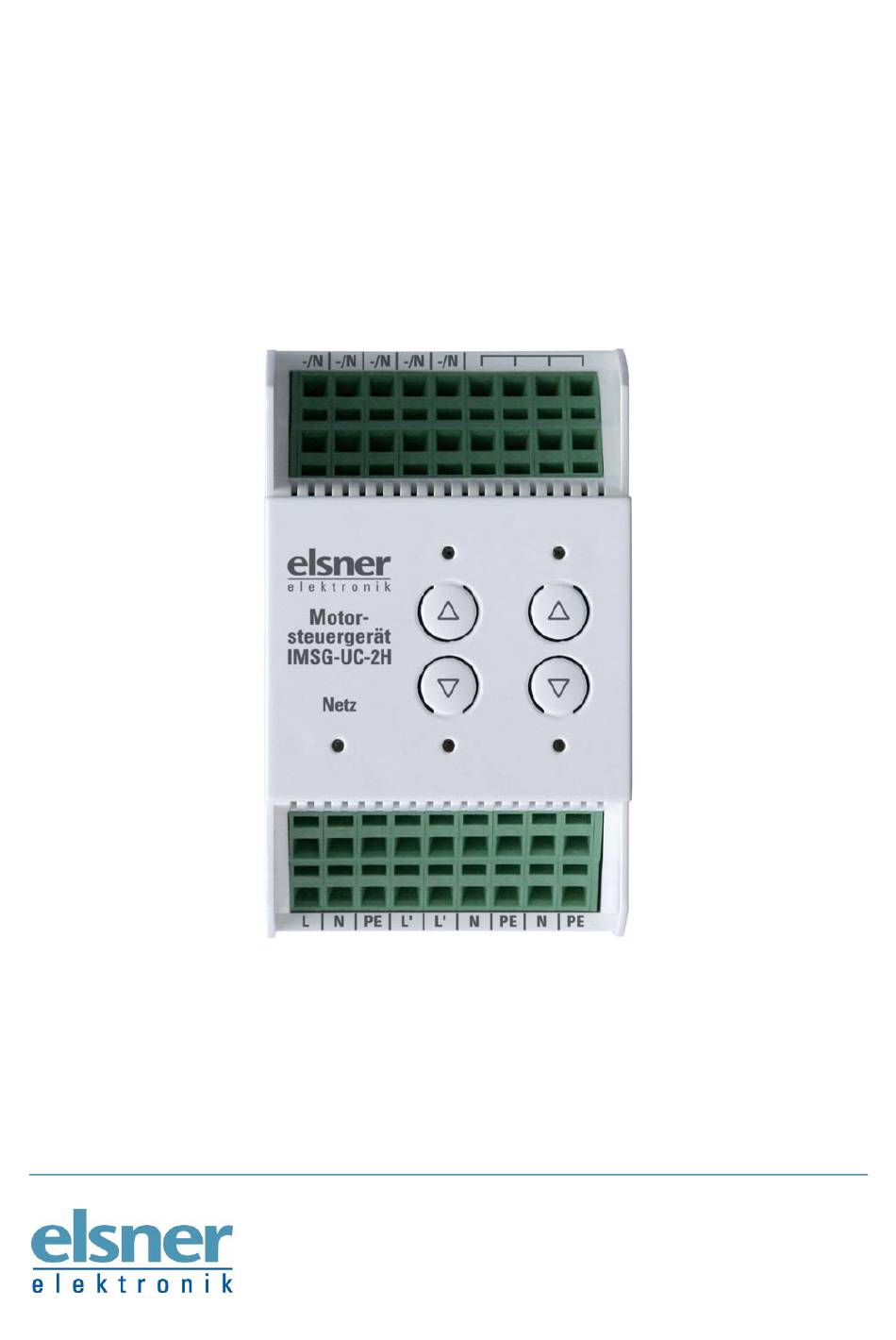

- Page 1 Motor control unit IMSG-UC-2H Technical data Elsner Elektronik GmbH Steuerungs- und Automatisierungstechnik Herdweg 7 • D-75391 Gechingen • Germany Phone: +49 (0) 70 56/93 97-0 • Fax: +49 (0) 70 56/93 97-20 info@elsner-elektronik.de • www.elsner-elektronik.de...
-
Page 2: Product Description
Product description The IMSG-UC-2H motor control unit allows two 230V drives to be controlled. The unit offers the possibility of operating the connected motors via integrated buttons or manually via up/down hand switches. Functions: • For two 230V drives (Up/Down) •... - Page 3 5 seconds and then additionally the button for longer than 1 second • To confirm the Off LED on the channel flashes 5 times Motor control unit IMSG-UC-2H • Status 02/08/2011 • Subject to technical changes. Errors excepted.
- Page 4 Series installation on mounting rails Protection rating: IP 20 Dimensions: approx. 53 x 88 x 60 (W x H x D, mm), 3 modules Weight: approx. 190 g Motor control unit IMSG-UC-2H • Status 02/08/2011 • Subject to technical changes. Errors excepted.
- Page 5 The motor control unit may only be operated as a fixed installation, meaning a built-in condition and following the completion of all installation and commissioning work, and only in the intended environment. Elsner Elektronik shall not be liable for any changes to norms or standards after the publication of these operating instructions. Installation notes Ensure that the unit does not come into contact with water: Even a few drops may damage the electronics.
-
Page 6: Connection Diagrams
Up and Down are looped through), the -/N connections must be bridged for equipotential bonding • Cable length for inputs max. 200 m Control with 12V Motor control unit IMSG-UC-2H • Status 02/08/2011 • Subject to technical changes. Errors excepted. - Page 7 Control with 230V Motor control unit IMSG-UC-2H • Status 02/08/2011 • Subject to technical changes. Errors excepted.
- Page 8 Connection example with several groups For IMSG-UC-2H and/or -4H. Motor control unit IMSG-UC-2H • Status 02/08/2011 • Subject to technical changes. Errors excepted.
