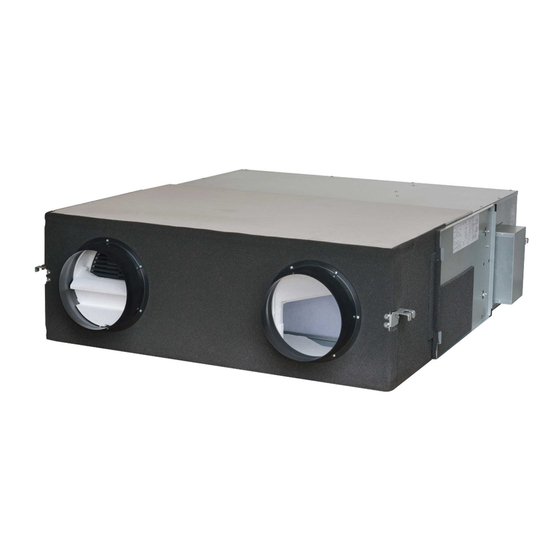

- Page 1 INSTALLATION MANUAL VENTILATION AND HEAT EXCHANGE UNIT (ENERGY RECOVERY VENTILATOR) SAF500E7 SAF150E7 SAF250E7 SAF350E7 SAF500E7 SAF800E7 SAF1000E7 PCH012D017...
- Page 3 ■If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ■This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involves.
- Page 5 Model SAF350E7 and SAF500E7 have two SAF1000E7 Heat Exchange Elements. SAF150E7 SAF800E7 SAF250E7 SAF1000E7 SAF350E7 SAF500E7 SAF800E7 SAF150E7 SAF1000E7 SAF250E7 SAF350E7 SAF500E7...
- Page 6 ■Cable for supply cord : VVF cable with Φ1.6 or Φ2. Cable for connecting main unit and remote controller : 300V/500V , 60227IEC10 (hard wire). Cross-section area for each core wire is 1.5mm...
- Page 7 FY-250ZDY8 SAF150E7 FY-350ZDY8 SAF250E7 FY-500ZDY8 SAF350E7 Number Name Quantity Note SAF500E7 Frame Adapter Terminal Inspection Cover Motor Note2) Heat Exchange element Note1) Filter Damper 4-13×30 Oval hole Damper Motor ⑬ Ceiling Suspension Fixture Electrical Equipment Box Energy Recovery Ventilator Remocon Note1) Model No.SAF350E7 and SAF500E7 have two Heat Exchange Elements. SAF150E7 Note2) Model No.SAF350E7 and SAF500E7...
- Page 8 Ask a specialized electrical construction operator for advice r egardi ng wiring in accordance with "Technical Standards for Electrical Equipment"and"Interior Wiring Regulation". Connect wires/cables indicated by broken lines. SAF150E7 SAF250E7 For power supply,use a VVF cable with 1.6 or 2.
- Page 9 SAF350E7 SAF500E7 SAF800E7 10.0 SAF1000E7 10.0 Relay 4...
- Page 10 When operating multiple air-to-air heat exchange units using a single switch ,the maximum number of units able to be operated is 10. Be sure to use the appropriate power supply corresponding to each model number,Using an inappropriate power supply may cause the motor to burn out. Grounding work must be based on Class D as defined in "Technical Standards for Electrical Equipment".
- Page 12 MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS, LTD. 16-5 Konan 2-chome, Minato-ku, Tokyo, 108-8215, Japan http://www.mhi.co.jp/aircon/ MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONING EUROPE, LTD. 7 Roundwood Avenue, Stockley Park, Uxbridge, Middlesex, UB11 1AX, United Kingdom Tel: +44-20-7025-2750 Fax: +44-20-7025-2751 http://www.mhiae.com...
