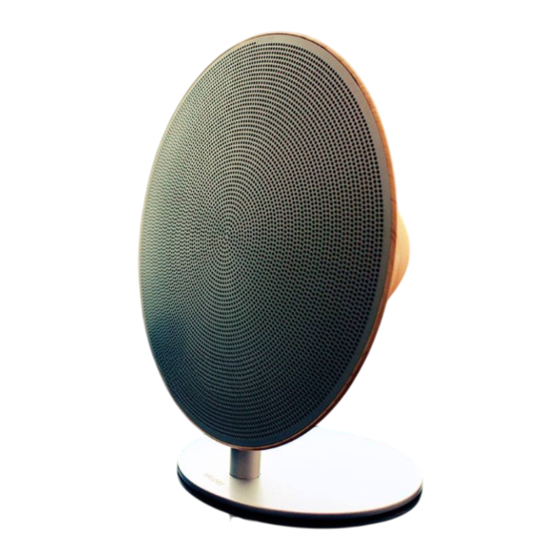

Duomo Wireless Speaker
(V-AS330T)
A statement piece with its unique design, the wireless features lets you connect conveniently
for your favourite tunes. Plus, enjoy your music directly from the dual front speakers.
Important: Please read the user manual thoroughly before using your Bluetooth Speaker.
Specifications:
• Model: V-AS330T
• Bluetooth version: 3.0
• Wireless range: Up to 10 metres
• Battery type: Lithium-ion
• Power input: DC12V/1.2A
• Playback time: 3 hours
• Charging time: 2 hours
• S/N ratio: ≥75dB
• Speaker power: 5W x 2R
• Speaker impedance: 4 Ohm
• Speaker frequency: 80Hz ~ 18kHz)
• Material(s): Aluminium + Plastic
• Dimensions (L x W x H): 200 x 220 x 115mm
• Weight: 1800g
UNDERSTANDING THE PRODUCT
①
⑤
⑥
⑦
②
③
④
Package Contents:
• Duomo wireless speaker
• Ac Adapter
• Auxiliary cable
① Speaker
② Reset (connection)/ Volume' + '
③ ON/OFF switch
④ Volume ' – '
⑤ NFC touch point
⑥ Auxiliary port
⑦ AC input port
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Valore V-AS330T
Summary of Contents for Valore V-AS330T
- Page 1 Plus, enjoy your music directly from the dual front speakers. Important: Please read the user manual thoroughly before using your Bluetooth Speaker. Specifications: Package Contents: • Model: V-AS330T • Duomo wireless speaker • Bluetooth version: 3.0 • Ac Adapter •...
- Page 2 Step 2: Activate Bluetooth function on your mobile device to begin pairing with the speaker. Step 3: Connect to the speaker by selecting ‘Valore AS330T’ under the device list. Step 4: Once connected, the speaker then produces an audible sound to indicate that the connection is successful.
- Page 3 The wireless speaker will do as follows: 1. Connect to last connected devices automatically; 2. Be listed in the screen of devices as an output channel. Select ‘Valore AS330T’ as the output channel to play music. Note: In some cases, the speaker may need to be manually selected from your operating system sound or hardware output list.
-
Page 4: On/Off Switch
9 ) Wireless speaker controls (located at the back) a) Volume • Control the volume via the wireless device; • Swipe upwards to increase the volume and downwards to decrease the volume b) Reset connection • Press and hold the ‘Reset’ button for about 3 seconds to reset the connection between the current device with the wireless speaker. -
Page 5: Troubleshooting
Solution: Fully charge the speaker (2 hours) and retry connection with your mobile device. Problem 2: Speaker not paired to your mobile device Solution: Make sure that the speaker is successfully paired upon selecting ‘Valore AS330T’ in the device list. -
Page 6: Technical Support And Warranty
All information, trademarks, logos, graphics, and images (“Materials”) provided on this user manual are copyrighted or trademarked and are the property of Valore Lifestyle Pte Ltd. Any unauthorized use of any material contained on the instruction manual may violate copyright laws, trademark laws, laws of privacy and communications statutes.
