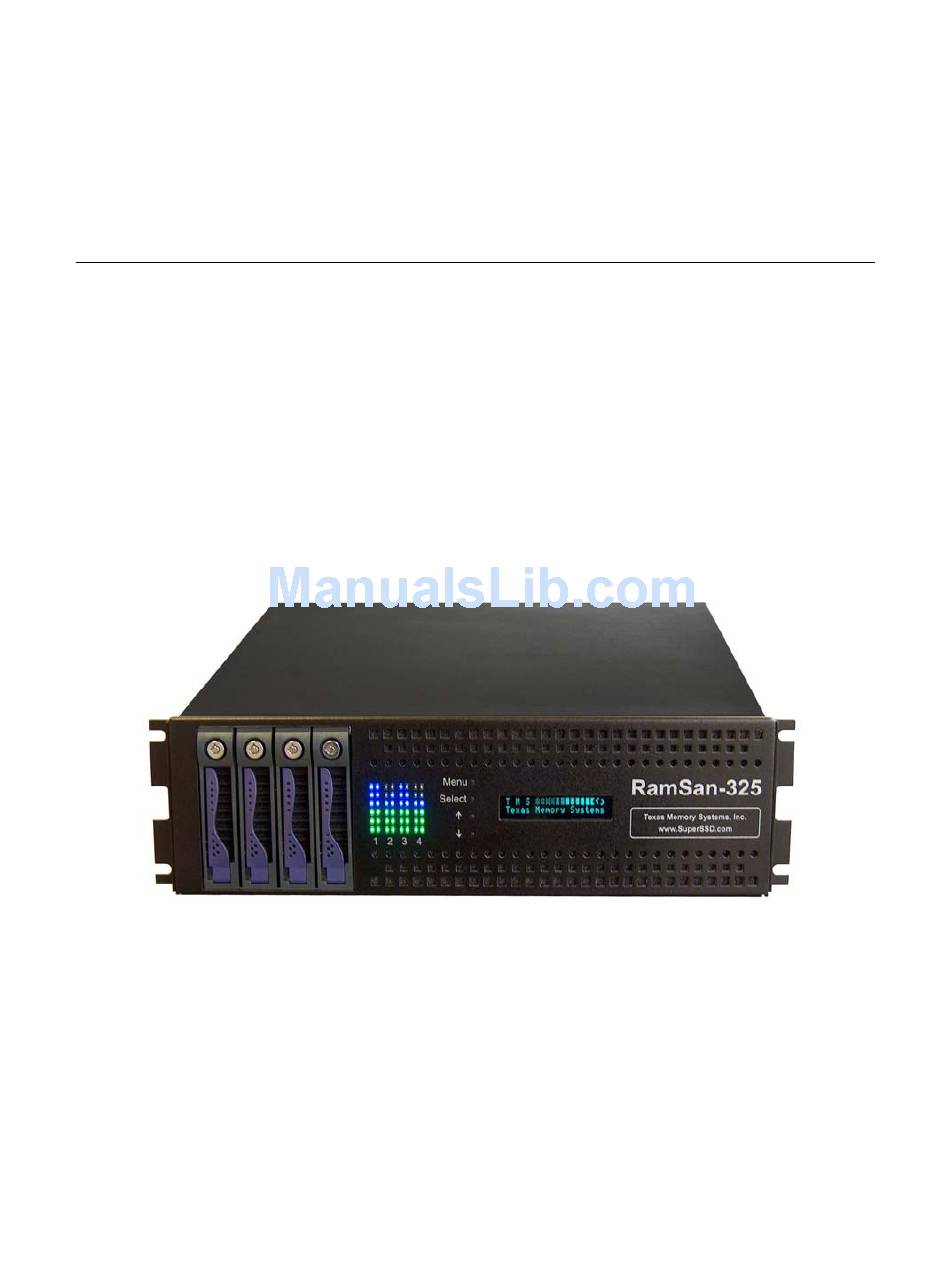

TEXAS MEMORY SYSTEMS, INC.
RamSan-325/325c
User's Manual
Version 2.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RamSan-325/325c and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Memory Systems RamSan-325/325c

Summary of Contents for Texas Memory Systems RamSan-325/325c

  • Page 1 TEXAS MEMORY SYSTEMS, INC. RamSan-325/325c User’s Manual Version 2.2...
  • Page 2 Any trademarks or registered trademarks used in this document belong to the companies that own them. Copyright © 2005, Texas Memory Systems, Inc. All rights are reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without permission of the copyright owner.

  • Page 3: Table Of Contents

    Chapter 7 Fibre Channel Controller Configuration ... 83 Changing Fibre Channel Topology and Link Speed... 83 Configuring High Availability ... 85 Resetting a Fibre Channel Controller ... 89 Clearing Fibre Channel Controller Statistics... 90 Advanced Fibre Channel Controller Options... 90 RamSan-325/325c User’s Manual - iii -...
  • Page 4 Appendix A – RamSan-325 Series Replacement Parts ... 104 Appendix B – FCC/Safety Notices... 107 Appendix C – Warranty, Maintenance, Field Service, and Repair Policy ... 108 Appendix D – Serial Port Settings ... 111 Appendix E – SNMP Trap Definitions... 112 RamSan-325/325c User’s Manual - iv -...

  • Page 5: Preface

    Preface Document Overview This document provides operating procedures for the RamSan-325/325c. It covers installation, management, and troubleshooting issues. Conventions This document uses the following textual conventions: Select Ethernet Setup lunconfig Safety Precautions PLEASE OBSERVE ALL DUE SAFETY MEASURES WHEN WORKING WITH SENSITIVE ELECTRICAL EQUIPMENT.

  • Page 6: Revision History

    Added Appendix E – SNMP Trap Definitions Added a description of SMART technology to Section Added Section 4.5 – Adding new feature licenses Updated all system screenshots Added support for RamSan-325 Merged documents for RamSan-325/325c RamSan-325/325c User’s Manual Date Firmware 08/15/2003...

  • Page 7: Chapter 1 - Introduction

    This technology enables practically instantaneous data access, which results in dramatic application performance increases. Texas Memory Systems (TMS) designed the RamSan to be highly available and fault tolerant. The system has higher availability than RAID or JBOD systems because the primary storage media is DDR RAM, which does not require moving parts.

  • Page 8: System Components

    By utilizing internal hard drives and batteries, the RamSan-325 combines the performance of DDR RAM storage with the non-volatile nature of hard disk drives. Texas Memory Systems equips the RamSan-325 with an internal backup RAID. The backup RAID can operate at about 200 MB/sec during operation.

  • Page 9: Configurable Backup

    With up to eight Fibre Channel ports in a 3U package, the RamSan-325 series delivers unparalleled bandwidth and I/O. The RamSan-325 series is capable of 250,000 IOPS (I/O operations per second) and 1,500 MB/sec of read or write performance. RamSan-325/325c User’s Manual - 5 -...

  • Page 10: Chapter 2 - Installation

    3) Inspect the interface plate for any screws that might have loosened during shipping. 4) Inspect the front panel display for damage. 5) Report any meaningful damage to Texas Memory Systems. Figure 2-1 shows an overhead view of the layout of the RamSan-325 components.
  • Page 11 Figure 2-1: RamSan-325 Layout RamSan-325/325c User’s Manual - 7 -...

  • Page 12: Rack Mounting

    Since the power supplies are redundant, you may remove line power from one without any interruption in system operation. If a RamSan-325 completely looses external power, it will shutdown after a defined amount of time. RamSan-325/325c User’s Manual FC 2 FC 1 Gbit Ethernet...
  • Page 13 A hard-shutdown will cause data loss and should only be used when the user is unable to perform a manual shutdown and all the data has been backed up to external storage. RamSan-325/325c User’s Manual Figure 2-3 RamSan Power Supply “Power”...

  • Page 14: Turning On The System

    TMS logo. The front panel displays the memory size. Soon after that, you will see “Booting…” and then the system displays the IP address. RamSan-325/325c User’s Manual TMS | | | | | ||||||() Texas Memory Systems TMS | | | | | ||||||() Memory Size: 128GB Booting ...
  • Page 15 The top bars represent the port A and the bottom bars represent port B. The system is now ready for normal operation. RamSan-325/325c User’s Manual Restoring Data ... 73.8% Restoring Data ... 73.8% Est.

  • Page 16: Chapter 3 - Management Tool Overview

    The “↑” button scrolls up through the menu. The “↑” button is also used cancel certain commands, as indicated on the display. If the menu is not selected, this button is disabled. RamSan-325/325c User’s Manual Figure 3-1: RamSan-325 Front Panel - 12 -...
  • Page 17 Manual Shutdown LED Display Set LED Mode Display Bandwidth Display IOPS Performance Demo LED Test Pattern Disable LEDs Exit Menu Set LED Brightness LED Brightness [Level] Exit Menu Display logo Exit Menu RamSan-325/325c User’s Manual Subnet Mask Gateway - 13 -...

  • Page 18: Text Management Interface

    [ENTER] key. For a detailed description of each menu item, arrow down to the item and press the [H] key to display help text. RamSan-325/325c User’s Manual - 14 -...
  • Page 19 Once satisfied with the changes made on a menu, the user must select “S” to save all of the changes. Pressing “ESC” or selecting “Q” disregards any changes and returns to the previous menu. RamSan-325/325c User’s Manual - 15 -...
  • Page 20 • Enter ‘R’ to immediately refresh the data on the screen • Enter [SPACE] to view additional information To exit the Text management interface, enter ‘Q’ from the Main Menu. RamSan-325/325c User’s Manual Figure 3-5: Scrolling Sub-Menus - 16 -...

  • Page 21: Web Management Interface

    Enter your system login and password to access the web management interface. 3.3.1 General interface layout and instructions Texas Memory Systems designed the web management interface as a metaphor for the actual system components. For detailed information, the user simply clicks on the component. Clicking on the management port also displays additional information about the system’s actions.

  • Page 22: Snmp

    Managers can access statistical information from the RamSan through its management information base (MIB). In addition, the RamSan can issue up to thirteen traps. For more information about configuring SNMP settings, see Chapter 8 – SNMP Configuration. RamSan-325/325c User’s Manual - 18 -...

  • Page 23: Chapter 4 - Administration Functions

    The default password for the “admin” account is “ssd” Logging in directly through the serial console automatically bypasses the password feature, which allows a system administrator access to the RamSan if the password is forgotten or lost. RamSan-325/325c User’s Manual - 19 -...
  • Page 24 • Enter your new password • Confirm the new password • Click the “Change” button The system immediately changes the administrator password. Figure 4-1: Password Change via Web Management Interface RamSan-325/325c User’s Manual - 20 -...
  • Page 25 Telnet. Note: The RamSan does not allow you to disable access to the console. This provides a method to re-enable the Telnet, Web, and SNMP. RamSan-325/325c User’s Manual Figure 4-2: Password Change - 21 -...
  • Page 26 Click on the “Network” tab To enable Telnet, check the “Allow Telnet” checkbox and press the “Save” button. To disable Telnet, uncheck the “Allow Telnet” checkbox and press the “Save” button. RamSan-325/325c User’s Manual Figure 4-3: Enable/Disable Telnet - 22 -...
  • Page 27 Select “Save changes and exit” to save the changes. The menu displays the current Telnet status above the menu options, as shown in Figure 4-4: Telnet Setup. Users currently connected through Telnet remain connected until their session ends. RamSan-325/325c User’s Manual Figure 4-4: Telnet Setup - 23 -...
  • Page 28 Press the “ ” key or [ENTER] to toggle between the sections • Select “Save changes and exit” to save the changes. The menu displays the current SNMP Access status above the menu options. RamSan-325/325c User’s Manual - 24 -...

  • Page 29: Configuring System Date And Time

    Enter the date and time under the “New time/date” field. • Click the “Save” button The system immediately changes the date and time. The new time appears next to “Current time/date.” Figure 4-5: Date/Time Change via Web Management Interface RamSan-325/325c User’s Manual - 25 -...

  • Page 30: Configuring Ethernet Settings

    “Ethernet Setup.” Use the Select button to choose this option and continue with the configuration. You may now use the arrow buttons to scroll through the following menu options: RamSan-325/325c User’s Manual Figure 4-6: Password Change - 26 -...
  • Page 31 Sets the IP configuration to DHCP • Disables Ethernet • Returns to the Main Menu without making any changes RamSan-325/325c User’s Manual Show Current Config Set IP Config Restart Network Exit Menu Static DHCP None No change - 27 -...
  • Page 32 “0.0.0.0” to tell the RamSan to ignore this entry. After entering all three values, the display prompts you to confirm the command with the “↓” button. RamSan-325/325c User’s Manual Ethernet IP Subnet Mask Gateway Address - 28 -...
  • Page 33 If the system successfully saved the IP configuration, you may simply select the “Restart Network” option from the “Ethernet Setup” menu instead of re- selecting the same IP configuration. RamSan-325/325c User’s Manual Shutting Down Network... Saving IP Config... Restarting network...
  • Page 34 • Click the “Management Control Processor” graphic • Click the “Network” tab • Configure the Ethernet settings using the fields under “Configure Network” • Click the “Save” button. Figure 4-7: Web Management Ethernet Configuration RamSan-325/325c User’s Manual - 30 -...
  • Page 35 If the administrator sets the IP assignment mode to ‘Static’, the ‘Change IP address’, ‘Change subnet mask’, and ‘Change gateway’ options appear, as shown in Figure 4-9: Static IP Settings: RamSan-325/325c User’s Manual Figure 4-8: Ethernet Setup Figure 4-9: Static IP Settings...

  • Page 36: Power Down Settings

    “Power Off System.” To cancel the shutdown, use the “↑” button to return to the main menu. To proceed with the shutdown, use the “↓” button to confirm the system power off. RamSan-325/325c User’s Manual Manual Shutdown Power Off System - 32 -...
  • Page 37 4.4.2 Automatic shutdown In the event that the system senses a high system temperature, power out of specs, or AC power is lost, the system will automatically initiate the shutdown procedure. RamSan-325/325c User’s Manual *** Powering Off *** - 33 -...

  • Page 38: Installing New Feature Licenses

    “Invalid key.” You must close and then re-open your web browser before you can configure any LUNs using the new feature. Figure 4-10: Adding licenses via the Web Interface RamSan-325/325c User’s Manual - 34 -...

  • Page 39: Saving And Uploading Configuration Options

    Important: Configuration options are specific to a particular version of RamSan firmware. You must save your configuration options each time you update your firmware. RamSan-325/325c User’s Manual - 35 -...
  • Page 40 Click on the “General Config” tab • Click the “Download Settings” button The web interface will generate the configuration file, and you will be asked where you would like to save the file. RamSan-325/325c User’s Manual Figure 4-12: Configuration Settings - 36 -...
  • Page 41 To complete the file upload, enter your password to shutdown the system and click the “Shutdown” button. The changes will not take effect until you have completed a shutdown cycle. Figure 4-13: Upload Configuration Settings Step One RamSan-325/325c User’s Manual - 37 -...

  • Page 42: Chapter 5 - Monitoring Functions

    If the system is rebuilding the disk array, the system displays “Array Rebuilding.” If the system is rebuilding a single disk, the front panel displays “Disk # Rebuild” indicating the disk number. RamSan-325/325c User’s Manual Restoring Data ... 73.0% - 38 -...
  • Page 43 More than one disk removed or failed. In the case of either system warnings or failures, the front panel display alternates between displaying status information and warning or failure messages every 10 seconds. RamSan-325/325c User’s Manual System Status: GOOD System Status: WARNING...
  • Page 44 B. The system stays in Active Monitor Mode for 10 minutes or until the user selects “Deactivate Monitor” from the front panel main menu. RamSan-325/325c User’s Manual Active Monitor Mode 1==- 2=-- 4=== - 40 -...
  • Page 45 Once you select one of the above options, the display will ask you to “Enable Autoblink.” If you enable autoblink, the top LED will blink (even with constant bandwidth or IOPS). RamSan-325/325c User’s Manual LED Display Display Bandwidth - 41 -...
  • Page 46 The RamSan front panel will begin to blink. To make the front panel stop blinking, press any button on the front panel or click the “Identify Device” button again. RamSan-325/325c User’s Manual Figure 5-1: Identify Device button - 42 -...
  • Page 47 To view the system uptime via web interface: • Click on the “Management Control Processor” graphic • Click on the “General Info” tab The “General Info” screen displays the “Uptime” below “Firmware version.” RamSan-325/325c User’s Manual Figure 5-2: System Uptime Status - 43 -...
  • Page 48 The system displays the current system uptime in days, hours, minutes and seconds at the top of the “Health and Status” screen, as shown in Figure 5-3: Health and Status: Figure 5-3: Health and Status RamSan-325/325c User’s Manual - 44 -...
  • Page 49 Information concerning the disks, batteries, power supplies, and fans are in separate locations through the Web interface. Disks • Click on the “Disks” graphic • Click on the “General Info” tab RamSan-325/325c User’s Manual Figure 5-4: Disk Status via Web interface - 45 -...
  • Page 50 Batteries • Click on the “Batteries” graphic • Click on the “General Info” tab RamSan-325/325c User’s Manual Figure 5-5: Battery Status via Web interface - 46 -...
  • Page 51 Management Control Processor To view the MCP status via web interface: • Click on the “Management Control Processor” graphic • Click on the “General Info” tab RamSan-325/325c User’s Manual Figure 5-6: MCP General Info Tab for Status - 47 -...
  • Page 52 Power Supplies • Click on the “Power Supply” graphic • Click on the “General Info” tab Figure 5-7: Power Supply Status via Web Interface RamSan-325/325c User’s Manual - 48 -...
  • Page 53 Fans • Click on the “Fans” graphic • Click on the “General Info” tab RamSan-325/325c User’s Manual Figure 5-8: Fans Status via Web interface - 49 -...
  • Page 54 This states that everything is functioning under normal operating conditions. “Warn” This indicates a potential problem to look into, but the problem is not an immediate threat to system stability. “Error” This indicates that the component should be investigated immediately. RamSan-325/325c User’s Manual - 50 -...
  • Page 55 Figure 5-10: Text Management Interface System Health Details By pressing the “V” key while on the System Health Status screen, the system will display the System Health Details screen. Press the “Q” key to return to the System Health Status screen. RamSan-325/325c User’s Manual - 51 -...
  • Page 56 • Click on one of the “Fibre Channel” graphics • Click on the “General Info” tab Figure 5-11: Fibre Channel Controller Status via Web Interface RamSan-325/325c User’s Manual - 52 -...
  • Page 57 Via Text Management • From the Telnet Main Menu, select “Health and Status” • Select “View Controller Status” Figure 5-12: Fibre Channel Controller Status via Text Management RamSan-325/325c User’s Manual Interface - 53 -...

  • Page 58: Statistics

    From the Telnet Main Menu, select “Health and Status” • Select “View statistics” • Select “IO/sec summary” The “IO/sec Summary” screen, as shown in Figure 5-14: IO/sec Summary, shows the IO read (r), write (w), and totals (t) for each RamSan-325/325c User’s Manual - 54 -...
  • Page 59 It also displays a total across all of the FCs present. Figure 5-14: IO/sec Summary RamSan-325/325c User’s Manual - 55 -...
  • Page 60 To decode the colors on the graphical display, see the legend below the check boxes. Figure 5-15: Bandwidth Performance Graph via Web Interface RamSan-325/325c User’s Manual - 56 -...
  • Page 61 (r), write (w), and totals (t) for each fibre channel controller in the system. It also displays a total across all of the fibre channel controllers present. Figure 5-16: Bandwidth Performance via Text Management RamSan-325/325c User’s Manual Interface - 57 -...
  • Page 62 In addition, this tool can display an average of each of these statistics. To decode the colors on the graphical display, see the legend below the check boxes. Figure 5-17: Transfer Size Graph via Web Interface RamSan-325/325c User’s Manual - 58 -...
  • Page 63 Select “Transfer size summary” The “Transfer Size Summary” screen displays the transfer size read (r) and write (w) for each fibre channel controller in the system. Figure 5-18: Transfer Size via Text Management Interface RamSan-325/325c User’s Manual - 59 -...
  • Page 64 To decode the colors on the graphical display, see the legend below the check boxes. Figure 5-19: Queue Depth Statistics via Web Interface RamSan-325/325c User’s Manual - 60 -...
  • Page 65 (r), write (w), and totals (t) for each fibre channel controller in the system. It also displays a total across all of the fibre channel controllers present. Figure 5-20: Queue Depth via Text Management Interface RamSan-325/325c User’s Manual - 61 -...

  • Page 66: Logs

    To view the system event log or support log via the web interface: • Click the “Management Control Processor” graphic • Click the “System Log” or “Support Log” button. RamSan-325/325c User’s Manual Figure 5-21: FC Overview Screen - 62 -...
  • Page 67 Via Text Management To clear the error log via Text Management Interface: • From the Telnet Main Menu, select “Health and status” • Select “Clear ECC Errors” RamSan-325/325c User’s Manual Figure 5-22: Error and System Event Log - 63 -...
  • Page 68 From the Telnet Main Menu, select “Log files” • Select “Set remote logging host” • Enter the remote logging host name in the text box. To disable remote host logging, leave the text box blank. RamSan-325/325c User’s Manual - 64 -...

  • Page 69: Chapter 6 - Lun Configuration

    You can change each Fibre Channel ports allocated space by using a simple configuration utility that TMS provides in the Text Management Interface and Web Interface. Important: LUN changes are not effective until the changes are saved. RamSan-325/325c User’s Manual 8 Gigabytes 8 Gigabytes LUN 0 FC Port...

  • Page 70: A Example Lun Configuration

    Link each LUN to an Fibre Channel port (see Section 6.4 ) • Add access lists (see Section 6.7 ) • Set a backup mode for each LUN in a RamSan-325 (see Section 6.9 ) RamSan-325/325c User’s Manual Gigabytes Gigabytes Gigabytes LUN 0...

  • Page 71: Adding Luns

    Assign LUN masks (see Section 6.7 – Managing Access Lists) • Set backup mode (see Section 6.9 – Setting Backup Mode) • Click the “OK” button • The system adds the specified LUN. Figure 6-3: Adding LUNs via the Web Interface RamSan-325/325c User’s Manual - 67 -...
  • Page 72 The system adds the specified number of LUNs. If space was not available, the system displays an error message. When adding new LUNs, the configuration utility automatically makes the LUNs of equal size. RamSan-325/325c User’s Manual Figure 6-4: Adding LUN(s) Menu - 68 -...

  • Page 73: Viewing Lun Status / Lun Map

    To view the LUNs for the entire system: • Click on the “Management Control Processor” graphic. • Click on the “LUN Config” tab. • This screen displays the configuration of all LUNs. Figure 6-5: Viewing System LUNs via Web Interface RamSan-325/325c User’s Manual - 69 -...
  • Page 74 Click on the “Fibre Channel Controller” graphic. • Click on the “Available LUNs” tab. • This screen displays the available LUNs for the selected Fibre Channel Controller. Figure 6-6: Viewing LUNs Assigned to FC ports via Web Interface RamSan-325/325c User’s Manual - 70 -...

  • Page 75: Linking Luns To/From Fibre Channel Controllers

    Select the LUN to edit by clicking on the LUN graphic. • Click the “Modify LUN” button. • Select the links for the LUN by clicking the “Channel links” checkboxes. • Click the “OK” button. RamSan-325/325c User’s Manual Figure 6-7: LUN Map Screen - 71 -...
  • Page 76 To save the changes once you have completed all LUN configuration, select “Save changes and exit” To ensure that your changes were successful, see Section 6.3 - Viewing LUN Status / LUN Map. RamSan-325/325c User’s Manual Figure 6-8: Link LUNs Screen - 72 -...
  • Page 77 To unlink a LUN or all linked LUNs, select the LUN and press [ENTER]. • Select “Exit to the LUN configuration menu” • To save the changes once you have completed all LUN configuration, select “Save changes and exit” RamSan-325/325c User’s Manual Figure 6-9: Unlink LUNs Option - 73 -...

  • Page 78: Changing Lun Numbers

    To save the changes once you have completed all LUN configuration, select “Save changes and exit” You may number the LUNs between 0 and 63, minus those LUN numbers already assigned to devices. Figure 6-10: Assigning Different LUN Numbers RamSan-325/325c User’s Manual - 74 -...

  • Page 79: Resizing Luns

    “Save changes and exit” The system does not allow entering a LUN size greater than the remaining available space. If you attempt this, the system displays an error message and does not save your changes. RamSan-325/325c User’s Manual - 75 -...

  • Page 80: Managing Access Lists

    Select LUN (See instructions in Section 6.5 ) • Select “Print detailed WWN mask list for LUN” • The system displays the WWN mask list. • Press any key to return to the Modify LUN(s) menu. RamSan-325/325c User’s Manual Figure 6-11: Current Access Lists - 76 -...
  • Page 81 Masks” removes all masks. • Select “Exit to the LUN configuration menu” • To save the changes once you have completed all LUN configuration, select “Save changes and exit” RamSan-325/325c User’s Manual Figure 6-12 Deleting Access Lists - 77 -...
  • Page 82 Enter a unique device identifier from 1 to 255 and press [ENTER]. • Select “Exit to the LUN configuration menu” • To save the changes once you have completed all LUN configuration, select “Save changes and exit” RamSan-325/325c User’s Manual Figure 6-13: Setting SCSI Device Identifier - 78 -...

  • Page 83: Deleting Luns

    Click on the “Management Control Processor” graphic. • Click on the “LUN Config” tab. • Select to LUN to delete by clicking on the LUN graphic. • Click the “Delete LUN” button. RamSan-325/325c User’s Manual Figure 6-14: Deleting LUNs via Web Interface - 79 -...

  • Page 84: Setting Backup Mode

    6.9 Setting Backup Mode The RamSan-325 allows the administrator to set backup modes for each LUN individually. Warning: TMS does not recommend changing backup modes while the system is actively transferring data. RamSan-325/325c User’s Manual Figure 6-15: Deleting LUNs - 80 -...
  • Page 85 This operational mode disables the backup functionality for the LUN making it completely volatile. In the case of system shutdown or failure, all data stored in the selected LUN will be lost intentionally. RamSan-325/325c User’s Manual mode (optional) - 81 -...

  • Page 86: Initializing Luns

    Select LUN (See instructions in Section 6.5 ) • Select “Initialize LUN” • Select “Exit to the LUN configuration menu” To save the changes once you have completed all LUN configuration, select “Save changes and exit” RamSan-325/325c User’s Manual - 82 -...

  • Page 87: Chapter 7 - Fibre Channel Controller Configuration

    Click on the “Fibre Channel Controller” graphic. • Click on the “Controller Setup” tab. • Select from the “Topology” and “Link Speed” settings. • Click the “Save” button. Figure 7-1: Controller Setup via Web Interface RamSan-325/325c User’s Manual - 83 -...
  • Page 88 If the Controller Setup screen displays these settings as “Unkn” (See Figure 7-3: Auto-Detect Error) once you have saved the changes, you must configure the link speed and topology manually. RamSan-325/325c User’s Manual - 84 -...

  • Page 89: Configuring High Availability

    FC controllers. The administrator can modify any controller setting from this state, and the effect will be local to this controller. This controller’s links are enabled and can be used to transmit and receive data. RamSan-325/325c User’s Manual - 85 -...
  • Page 90 In this state, the primary controller backs up this secondary controller. Changing this secondary controller to “Primary (Active)” state resets this controller and the primary controller. RamSan-325/325c User’s Manual - 86 -...
  • Page 91 Click on the “Fibre Channel Controller” graphic. • Click on the “Controller Setup” tab. • Select from the “Select failover mode” settings. • Click the “Save” button. RamSan-325/325c User’s Manual Figure 7-4: Failover Setup via Web Interface - 87 -...
  • Page 92 Next to the controller number, the display indicates the controller’s states. In Figure 7-5, the selected controller is “2” and the display indicates that the controller’s state is “Primary (Active, Secondary is 3).” RamSan-325/325c User’s Manual - 88 -...

  • Page 93: Resetting A Fibre Channel Controller

    To change reset a fibre channel controller via the Web Interface: • Click on the “Fibre Channel Controller” graphic. • Click on the “Controller Setup” tab. • Click the “Hard Reset” button. RamSan-325/325c User’s Manual Figure 7-6: FC hard reset via Web Interface - 89 -...

  • Page 94: Clearing Fibre Channel Controller Statistics

    The RamSan Text Management Interface contains several advanced options that help to diagnose potential issues and configure the fibre channel controllers for non-standard environments. These features are typically used in coordination with a Texas Memory Systems technical support contact. 7.5.1 View Fibre Channel Console The fibre channel console provides detailed logging for the fibre channel controllers.
  • Page 95 To disable the extra fibre channel logging through the Text Management Interface: • From the Telnet Main Menu, select “Health and status” • Select “Advanced FC options” • Select “Disable extra FC logging” RamSan-325/325c User’s Manual - 91 -...

  • Page 96: Chapter 8 - Snmp Configuration

    The RamSan ships from the factory with a read-only community string of "read.” It is standard practice for network managers to change all the community strings so that outsiders cannot see information about the internal network. RamSan-325/325c User’s Manual - 92 -...
  • Page 97 Enter the read community name and press [ENTER] To change the read/write community name: • Select “Change read/write community name” • Enter the read/write community name and press [ENTER] RamSan-325/325c User’s Manual Default Setting: Read: Read/Write: System Location: System Contact:...
  • Page 98 To update community information via the Web Management Interface: • Click on the “Management Control Processor” graphic. • Click on the “SNMP” tab. • Enter the appropriate community values. • Click the “Save” button. RamSan-325/325c User’s Manual Figure 8-2: SNMP configuration screen - 94 -...
  • Page 99 The top of this menu displays the current SNMP settings. To add a trap receiver to the list of Trap IPs: • Select “Add IP address to the trap list” • Enter the IP address of the trap receiver and press [ENTER] RamSan-325/325c User’s Manual - 95 -...
  • Page 100 RamSan. Via Web Management To download the RamSan’s MIB file via the Web Management Interface: Click on the “Management Control Processor” graphic. Click on the “SNMP” tab. Click the “Get MIB file” button. RamSan-325/325c User’s Manual - 96 -...

  • Page 101: Chapter 9 - System Maintenance

    Chapter 9 – System Maintenance Texas Memory Systems designed the RamSan to be easily maintainable. You can update firmware from the web interface and easily maintain the system components. One of the main features of the RamSan is the ability to hot swap many of the system components.
  • Page 102 Figure 9-2: Uploading Patch File via Web Interface The system will ask you to confirm your password: • Enter the system password into the text field • Click the “Patch” button. Figure 9-3: Confirming Password for Updating Firmware RamSan-325/325c User’s Manual - 98 -...

  • Page 103: Hot Swapping Power Supplies

    9.2 Hot Swapping Power Supplies The RamSan-325 series includes two power supplies. The system only requires one functioning power supply to run. Texas Memory Systems has taken special care to enclose the RamSan power supplies in a protective case to minimize the electrical risks for users; however, it is critical for...

  • Page 104: Hot Swapping Disk Drives

    TMS does not advise removing functional hard disks. While the action should be perfectly safe, it may affect system performance or downtime, depending on the system mode, as the system synchronizes the new disk drive. RamSan-325/325c User’s Manual , read operations continue - 100 -...

  • Page 105: Batteries

    The RamSan reports periodic battery test failures in the System Event Log and in all of the management utilities, including the front panel display. If a failure occurs, contact Texas Memory Systems for a replacement battery immediately.

  • Page 106: Chapter 10 - Troubleshooting

    10.2 Support Log The support log provides a snapshot of all current configuration settings. Before contacting Texas Memory Systems, please have a copy of this log available. 10.3 System Diagnostics The Text Management Interface includes a set of menus with system diagnostics.

  • Page 107: Chapter 11 - Specifications

    Max relative humidity: (non-condensing) Power consumption: 11.3 Non-operating Environment Temperature: Relative Humidity: (non-condensing) RamSan-325/325c User’s Manual 3U (5.25”) x 26” deep up to 90 lbs. 90 ~ 264 VAC Front to back airflow 32-85 °F (0-30 °C) 350 W 32-150 °F (0-65 °C)

  • Page 108: Appendix A - Ramsan-325 Series Replacement Parts

    Appendix A – RamSan-325 Series Replacement Parts Figure A-1 MCP-65 Management Control Processor Figure B-2 FC-65 Dual Channel 2-Gigabit Fibre Channel Controller RamSan-325/325c User’s Manual - 104 -...
  • Page 109 Figure B-3 Power Supply Module Figure A-5 Memory Blade RamSan-325/325c User’s Manual - 105 -...
  • Page 110 Figure A-6 120 Gigabyte Replacement Hard Drive RamSan-325/325c User’s Manual - 106 -...

  • Page 111: Appendix B - Fcc/Safety Notices

    3030113 Conforms to UL STD 60950 Certified to CAN/CSA STD C22.2 NO. 60950-00 Electrical Ratings: 100-240V~ 3.5A 50-60 Hz Made in U.S.A. RamSan-325/325c User’s Manual - 107 -...

  • Page 112: Appendix C - Warranty, Maintenance, Field Service, And Repair Policy

    Maintenance, Field Service, and Repair Policy BRONZE WARRANTY Equipment purchased from Texas Memory Systems, Inc. (TMS) is warranted for 1 year from the date of shipment. The warranty includes return-to-factory service for equipment that does not meet its published specification during normal operation.
  • Page 113 (30) days, or else the RMA will be cancelled. SILVER WARRANTY - Advanced Parts Replacement Texas Memory Systems Silver Warranty may be purchased which provides all of the features of the Bronze plan. In addition, for one to three years (customer option),...
  • Page 114 Houston, Texas area, daily rates and normal travel expenses for field service personnel will be charged, including air fares, hotel accommodation, per- diem meal allowance and other out-of-pocket expenses related to travel or attendance at the customer site. RamSan-325/325c User’s Manual - 110 -...

  • Page 115: Appendix D - Serial Port Settings

    Use the following default account information to access the RamSan through the serial port: ssd Login: admin Pin Out The RamSan serial port has the following pin out settings: Figure D-0-1: Serial Port Pin Out RamSan-325/325c User’s Manual - 111 -...

  • Page 116: Appendix E - Snmp Trap Definitions

    MIB file, which can be obtained through the web monitor. Name power-on-notif Description System has turned on Includes Message System Type Name power-off-notif Description A shutdown sequence has been initiated Includes Message RamSan-325/325c User’s Manual - 112 -...
  • Page 117 RamSan-325/325c User’s Manual This indicates there may be an SNMP reporting problem The temperature has dropped below acceptable levels and should be moved to a warmer environment. The temperature is within specification. The temperature level has risen above acceptable bounds.
  • Page 118 RamSan-325/325c User’s Manual This indicates there may be an SNMP reporting problem Voltage levels are dangerously low; the system may be powered off. Voltage and/or current levels are below specification. Voltage and current levels are within specification.
  • Page 119 RamSan-325/325c User’s Manual This indicates there may be an SNMP reporting problem The battery has failed a periodic battery test and may need to be serviced, or one or more of the batteries have voltages that threaten the system’s ability to backup data in the event of a power loss.
  • Page 120 RamSan-325/325c User’s Manual This indicates there may be an SNMP reporting problem One or more fan channels have stopped; temperature warnings that will cause the system to shutdown are imminent. Single fans in one or more fan channels have stopped or are running slowly.
  • Page 121 Description A system message Includes Message RamSan-325/325c User’s Manual This indicates there may be an SNMP reporting problem The FC controller is working properly. The FC controller has detected some type of error; possibilities include: RX errors, CRC errors, and corrected ECC errors.
