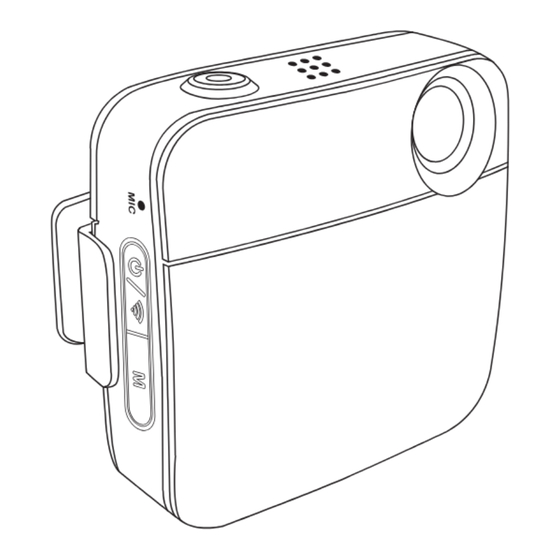

- Page 1 VT-50 & VT-50-XLR QUICKSTART GUIDE ED-006-007-24...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION HOW TO CHARGE YOUR VT-50 / VT-50-XLR HOW TO USE YOUR VT-50 / VT-50-XLR HOW TO POWER UP YOUR VT-50 / VT-50-XLR IF YOUR VT-50 / VT-50-XLR IS CONFIGURED TO LIVESTREAM IF YOUR VT-50 / VT-50-XLR IS NOT CONFIGURED TO LIVESTREAM RECORDING WITH EXTERNAL POWER PACK (VT-50-XLR ONLY) HOW TO STOP RECORDING WEARING YOUR VT-50 / VT-50-XLR... -
Page 3: Introduction
INTRODUCTION Thank you for choosing the VideoTag VT-50 / VT-50-XLR. This simple guide will lead you through the set up and use of your VT-50 / VT-50-XLR. In order to use your VT-50 / VT-50-XLR, you must have access to our VideoManager Software. This can be purchased as a per camera licence, or you can subscribe to your Cloud Service. -
Page 4: How To Charge Your Vt-50 / Vt-50-Xlr
HOW TO CHARGE YOUR VT-50 / VT-50-XLR To charge, you will need either the USB charging cable (supplied in this kit), or the VT-50 / VT-50-XLR variant of the 14 Slot Dock (VT-50-DOCK14). USB Charging Cable VT-50 Variant - 14 Slot Dock (VT-50-DOCK14) VT-50 &... - Page 5 If the VT-50 / VT-50-XLR is not configured to connect to Wi-Fi while docking, the LED will pulse green while charging, and go out once fully charged. If your VT-50 / VT-50-XLR has not already been configured by your system administrator, please see the Edesix Admin Guide for instructions on how to configure your device. Charging Fully Charged...
-
Page 6: How To Use Your Vt-50 / Vt-50-Xlr
HOW TO USE YOUR VT-50 / VT-50-XLR HOW TO POWER UP YOUR VT-50 / VT-50-XLR The VT-50 / VT-50-XLR starts recording (and live streaming, if it has been configured to do so), as soon as it is powered up. To power up your device, press and hold the record button for two seconds. The record button will glow a solid red to indicate that the device is on, configured and recording. -
Page 7: If Your Vt-50 / Vt-50-Xlr Is Configured To Livestream
IF YOUR VT-50 / VT-50-XLR IS CONFIGURED TO LIVESTREAM The recording LED should now shine solid red with a slow blinking blue at the same time - about once a second - indicating that it is looking for Wi-Fi to connect to. A faster blinking blue light, over the solid red recording light, indicates that the VT-50 / VT-50-XLR has connected to the Wi-Fi and is looking for VideoManager. -
Page 8: Recording With External Power Pack (Vt-50-Xlr Only)
RECORDING WITH EXTERNAL POWER PACK (VT-50-XLR ONLY) Your VT-50-XLR can record while connected to an external power pack. This mode must be configured by your system administrator. Connect your VT-50-XLR to the external power pack using either the supplied USB charging cable, or an alternative cable of a different length. -
Page 9: How To Stop Recording
HOW TO STOP RECORDING To stop recording (and streaming), press and hold the record button for one second. If your VT-50 / VT-50-XLR is configured to livestream, the record button will change from a solid red and blue light to blue light, indicating that the device is still connected to the Wi-Fi, but no footage is being recorded. -
Page 10: Wearing Your Vt-50 / Vt-50-Xlr
WEARING YOUR VT-50 / VT-50-XLR The VT-50 / VT-50-XLR can be attached to most uniforms and items of clothing using the robust clip which accompanies the camera. ROTATABLE CLIPS VT-50 & VT-50-XLR - Quickstart Guide - ED-006-007-24... -
Page 11: Lanyards
LANYARDS For added security, you can optionally use an Edesix lanyard (AC-LANYARD-05) as a secondary attachment. The lanyard is a long piece of sturdy polyester ribbon, with a split ring at each end and a phone strap attached to each split ring. -
Page 12: Weather Resistant Sleeve
WEATHER RESISTANT SLEEVE A weather resistant Silicone sleeve (VT-50-SLEEVE) can be purchased for your VT-50 / VT-50-XLR for use in adverse weather conditions. Please ask your Edesix sales representative for further details. Insert VT-50/VT-50-XLR into sleeve Pull sleeve over VT-50/VT-50-XLR... -
Page 13: Care For Your Videotag Product
CARE FOR YOUR VIDEOTAG PRODUCT The VideoTag VT-50 / VT-50-XLR is designed to be stored off the charger once charged. The battery will retain charge for several months and still record for up to two hours when used, if stored in this manner. -
Page 14: Regulatory Information
When Wi-Fi is enabled, the VT-50 & VT-50-XLR transmits in the frequency band 2.412 GHz to 2.462 GHz with a transmit power of no more than 38.6mW. Radio Equipment Directive Hereby Edesix declares that the radio equipment type VT-50 & VT-50-XLR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.edesix.com/videotag-vt-50-declaration-of-conformity Edesix Ltd, 16 Forth Street, Edinburgh, EH1 3LH, UK. - Page 15 +44 131 510 0232 sales@edesix.com www.edesix.com Reg: SC235672 | VAT: GB 803 904 251...
