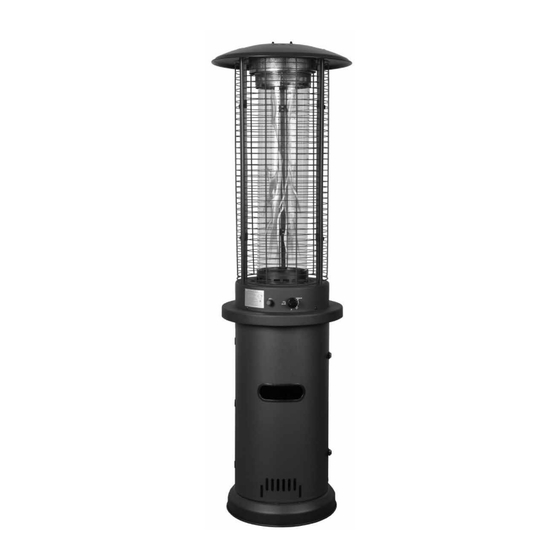

– Area HEATER –
Assembly, Safety & Operating Instructions
DÉCOFIRE
FOR OUTDOOR USE ONLY
READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
OR USE. KEEP INSTRUCTIONS IN A SAFE PLACE
FOR FUTURE REFERENCE. THIS APPLIANCE IS NOT
DESIGNED FOR COMMERCIAL USE
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame or ignition source
3. If odour continues, keep away from the appliance and
immediately call your local fire department
WARNING
Do not store or use any flammable liquids or gases in the
vicinity of this appliance. An LP gas cylinder not connected
for use must not be stored in the vicinity of this appliance.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
Read the owner's manual thoroughly before installing or
servicing this equipment. If the information in this manual is
not followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
WARNING
The glass flame tube may break if it is wet while in use;
never use the appliance while it's raining or wet conditions
are present. Do not splash any liquid on the appliance while
it is operating or hot.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide, which has no
odour. Using it in an enclosed space can kill you. Never use
this appliance in an enclosed space such as a tent, car or
basement. Do not bring this appliance indoors.
Page 1
Advertisement
Table of Contents
Related Manuals for Decofire DF102043
Summary of Contents for Decofire DF102043
- Page 1 DÉCOFIRE – Area HEATER – Assembly, Safety & Operating Instructions FOR OUTDOOR USE ONLY READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY OR USE. KEEP INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. THIS APPLIANCE IS NOT DESIGNED FOR COMMERCIAL USE DANGER If you smell gas: 1.
- Page 2 Specifications & Dimensions Décofire (XXXXXX) Series Outdoor Heater Specification DF102043 Gas type LPG / Propane Gas consumption 48 MJ/Hr Operating Pressure 2.75kPa Injector Size 2.15mm 535mm 1860mm 40mm 490mm 850mm 80mm 450mm Mayo Hardware PTY LTD 4 Secombe Place, Moorebank...
-
Page 3: Important Safety Warnings
IMPORTANT SAFETY WARNINGS • THIS APPLIANCE IS DESIGNED AND INTENDED FOR OUTDOOR USE ONLY! • This appliance shall be used outdoors, in a ventilated space and shall not be used in any enclosed area. • This appliance shall not be installed or used indoors, inside buildings, sheds or garages or any other enclosed area. •... -
Page 4: Unpacking Your Appliance
OPERATING SAFETY WARNINGS • Always follow lighting instructions carefully. • This appliance is not intended for cooking. • Appliance may be hot while in use, do not attempt to move it while in use. • Always observe any local or state fire warnings. •... -
Page 5: Minimum Clearances To Combustibles
WHERE TO PLACE YOUR APPLIANCE 610 MM Minimum Clearances To Combustibles Combustible materials are materials such as wood, paper plant fibres some plastics. e.g. any material that is capable of being ignited. Above this appliance: Minimum of 610mm to combustible materials. NOTE: DO NOT use this appliance under any awning or pergola if there is a risk of the structure or materials igniting or being damaged by the heat. -
Page 6: Appliance Features
APPLIANCE FEATURES Reflector Protective Cover Glass Flame Guard Tube Burner Starter Flame Control Button Latches Cylinder Compartment Wheels Anchoring Arms / Stabilisers Anchoring Spikes Page 6... -
Page 7: Components And Hardware
COMPONENTS AND HARDWARE Upper Protective Safety Reflector x 1 Cover Guard x 3 Glass Tube x 1 Glass Tube Ring x 1 Cylinder Housing Support x1 Burner x 1 Cylinder Support Strap Cylinder Enclosure Upper Frame Support x 3 Wheel Assembly Anchoring Anchoring... - Page 8 Step 1. Step 2. Flip the cylinder housing (D) upside down and attach Attach the anchoring arms (FF) onto the base of the the wheel assembly (J) to the base of the cylinder cylinder housing (D) using 6 M6 x 12 screws (BB) and 6 housing (D) using 2 M8 x 16 screws (CC).
- Page 9 Step 5. Step 6. Align the holes at the bottom of the burner (C) to the Remove the 3 preassembled screws from the top of the top of the cylinder housing (D) - position to have the burner (C). Attach the glass tube ring (B) to the top of the control panel on the burner (C) aligned burner (C) using the 3 screws removed at the beginning of this step.
- Page 10 Step 9. Step 10. Attach the 3 mesh guards (F) onto the hooks at Use the anchoring spikes (EE) to fasten the the top of the upper supporters (I). product into the ground (Optional). Cylinder Valve Turn anti-clockwise to connect Regulator Step 11.
-
Page 11: Operation
OPERATION Pre-Start Checks Prior to using the appliance at any time - including first time and subsequent uses - it is advisable to inspect the appliance, the hose and regulator and the gas cylinder for leaks or damage. Appliance, Gas Controls and Burner Inspect all major components on the appliance: •... - Page 12 Operation WARNING: If the lighting instructions are not followed directly a fire or explosion may occur resulting in property damage, personal injury or death. • The glass flame tube may break if it is wet while in use; never use the appliance while it’s raining or wet conditions are present.
- Page 13 IN THE EVENT OF FAULT Most problems can be easily solved by using the trouble shooting guide below to determine the cause and solution before calling our customer service team. Problem Cause Solution Burner will not light Igniter electrode pin and / or burner Dry off with a soft cloth.
-
Page 14: Care And Cleaning
CARE AND CLEANING CLEANING, MAINTENANCE & SERVICING SCHEDULE • Never clean this appliance when it is hot - always allow the appliance to cool completely before cleaning or Service Item Recommended maintenance. Interval • Before performing any maintenance always shut off all gas Major appliance 2 years controls and valves and disconnect the gas cylinder from... -
Page 15: Warranty
WARRANTY Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. - Page 16 Made in China exclusively for Mayo Hardware PTY LTD 4 Secombe Place, Moorebank NSW 2170 Australia Customer Service: 1300 360 211 Web: decofireheating.com.au © Copyright 2018 Mayo Hardware Pty Ltd. All rights reserved. All material within this document is protected under copyright. No part of this document shall be reproduced for any purpose without the express written consent of Mayo Hardware.
