BoarBuster Color HD Installation Instructions

1. Remove and unfold Tripod Tower then fully extend all legs and lock in place. The Tripod
Tower should be located approximately 15' to 20' from the edge of the trap, and the
Winch Stand must be the closest spot on the trap to the Tripod Tower.
2. Slide Small Solar Power Bracket on to Tripod Tower with the bolt holes facing down at a
45-degree angle on the Tripod Tower.
3. Slide Camera Bracket on to Tripod Tower and use provided pin to lock in place.
4. Mount Camera Antenna to the top of the Tripod Tower, then tighten with provided "U"
bolt with a small wrench. Make sure to not overtighten "U" bolt.
5. Use (3) three of the provided Stakes to secure Tripod Tower in place to the ground
6. Attach Solar Panel to the Solar Power Bracket on the Tripod Tower using the provided
bolts making sure the bolt heads are on the panel side of the frame. Ideally the solar
panel should be facing as much to the south as possible to allow it to absorb as much
sunshine as possible.

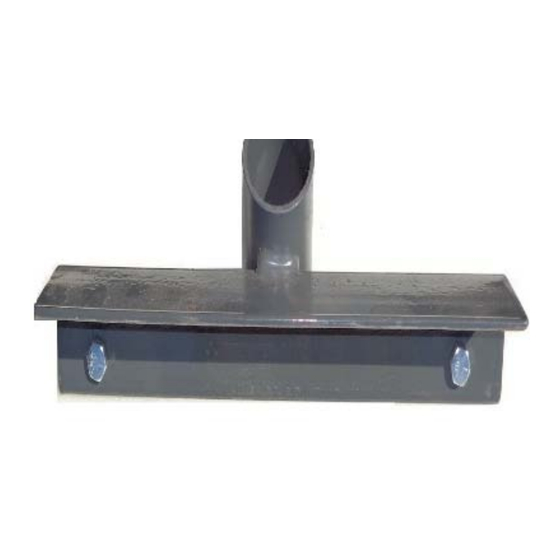

7. Place the Large Solar Panel Bracket at the bottom of the Solar Panel for maximum
support. Secure the Large Solar Panel Bracket using supplied bolts and wing nuts. Then
use (2) of the provided Stakes to secure to the ground.
8. Mount Camera Plate to the back of the camera making sure that the welded portion is
facing toward the top of the Camera. PLEASE DO NOT OVER TIGHTEN.
