KingShield TH90 Installation Instructions

Model Number:
For the correct working and safety reasons these thermostats
must be installed and used according to the instructions.
The thermostats are mainly suitable for heating and air
conditioning installations. The thermostats have been tested in
compliance with the european standards for safety.
Important: This product should be installed by a competent person
and in accordance with the current IEE Wiring Regulations. If in
doubt consult a qualified electrician.

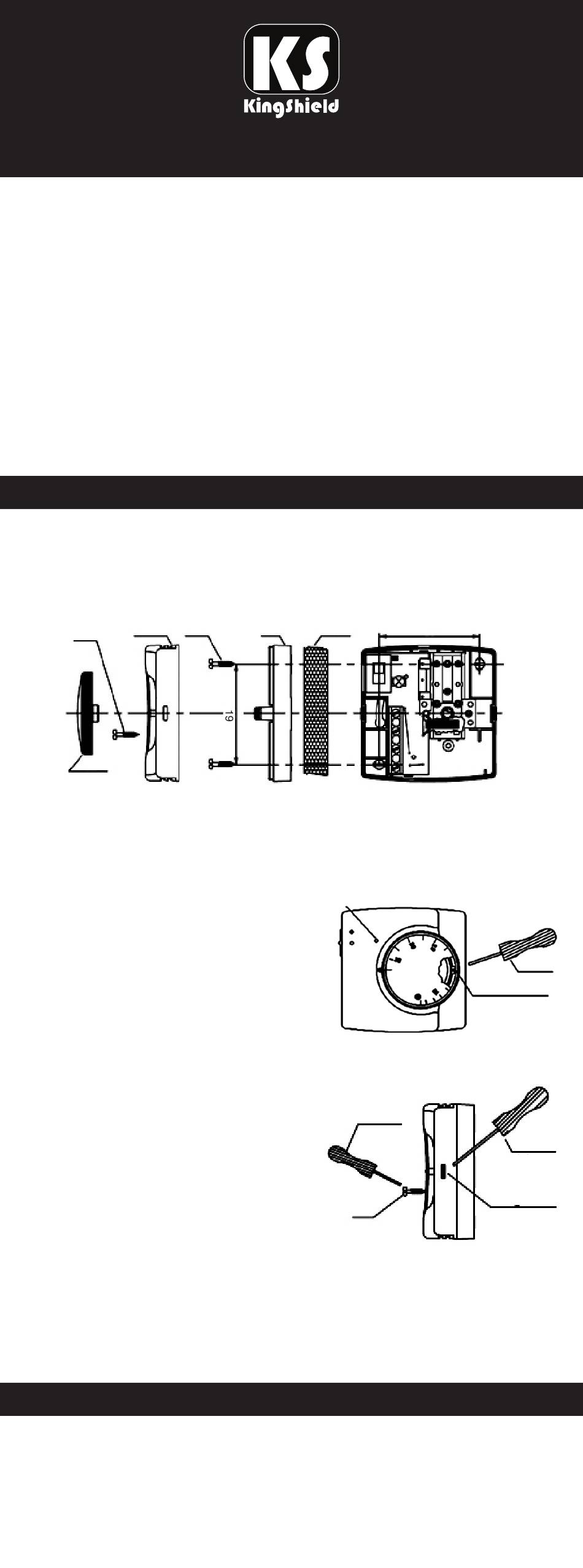

The room thermostats can be installed directly on the wall by
means of screws securing the holes of the thermostats base after
the removing the knob and the cover (see Dia 1.).
Top Cover
Screw
Dia 1.
To remove the knob.
Turn the knob to the maximum
position. Insert a blade of a
screwdriver in the fissure between
the knob and the top cover. Use the
screwdriver as a lever to remove the
knob see Dia 2.
To remove the top cover.
Remove the screw on the top
cover. Press slightly with a
screwdriver blade on the fixing
hook. See Dia 3.
We recommend to install the room thermostat at the height of
approx 1.5m from the ground. away from any heat sources and
avoiding humid and polluted environments.
Before proceeding with electrical connection disconnect mains.
The electrical connection is ensured by the means of screw
terminals. Max cable diameter 2.5mm
Installation Instructions for
Room Thermostats
TH90, TH90F & TH90C

INSTALLATION

Base
Screws

CONNECTION

Wall 61
Pilot Lamp
Dia 2.
Screwdriver
Screw
Dia 3.
2.
Screwdriver
Fissure for
screwdriver
Screwdriver
Fixing Hook
