Hakki Pilke HakkiFeed 472 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
Log table
– Operating and maintenance instructions
– EC Declaration of Conformity
– Safety instructions
– Guarantee terms
- List of spare parts
The operator must read and understand these
instructions before operating the machine!

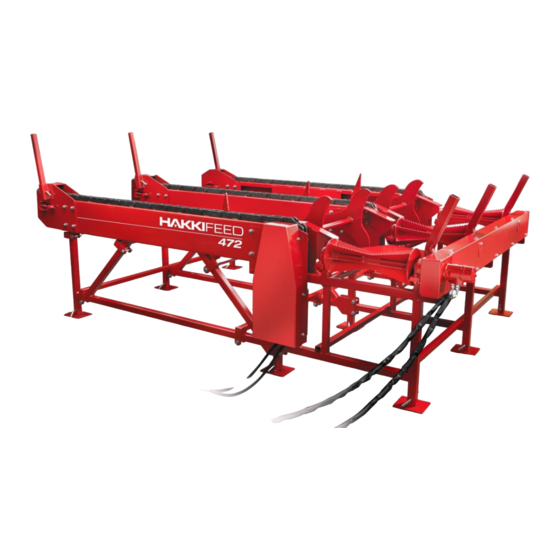

Hakki Feed 472
HakkiFeed
472
MAASELÄN KONE OY
Valimotie 1, FI-85800 Haapajärvi, Finland
Tel. +358 (0)8 772 7300
info@hakkipilke.fi
www.hakkipilke.fi
1 / 14
Translation
Version 1

Advertisement

Table of Contents
loading

Related Manuals for Hakki Pilke HakkiFeed 472

Summary of Contents for Hakki Pilke HakkiFeed 472

  • Page 1 ENGLISH 1 / 14 HakkiFeed Log table – Operating and maintenance instructions – EC Declaration of Conformity – Safety instructions – Guarantee terms - List of spare parts The operator must read and understand these instructions before operating the machine! MAASELÄN KONE OY Valimotie 1, FI-85800 Haapajärvi, Finland Tel.

  • Page 2: Table Of Contents

    2 / 14 Table of contents General information ........................3 1.1. Introduction .............................. 3 1.2. Purpose of use ............................3 1.3. Machine models and basic information ....................3 1.4. Operating conditions ..........................3 1.5. Safety instructions ............................ 3 Receipt and assembly........................4 2.1.

  • Page 3: General Information

    Purpose of use The Hakki Feed 472 log table is intended for moving pruned wood or logs onto a Hakki Pilke firewood processor. The firewood processor must not be used to process any treated wood, such as is found in construction waste.

  • Page 4: Receipt And Assembly

     The machine may not be operated unless the operator has familiarised themselves with this instruction manual.  The machine is only intended for transferring logs to the Hakki Pilke firewood processor.  The operator is not permitted to modify the structure or operation of the machine or remove protective equipment.

  • Page 5: Main Components Of The Machine

    5 / 14 2.4. Main components of the machine Hakki Feed 472 is a hydraulically controlled accessory for the Hakki Pilke firewood processor. It is controlled hydraulically with the operating levers of the Hakki Pilke firewood processor’s control unit. A. In-feed conveyor B.

  • Page 6: Connecting The Hydraulics

    6 / 14 3.1.1. Connecting the hydraulics Use the operator’s manual of the relevant Hakki Pilke firewood processor for the connections! Use of the table requires two separate control valves: Example Figure 3. In-feed conveyor A (Figure 2) Connected in series to the Hakki Pilke firewood processor’s in-feed...

  • Page 7: Operating The Machine

    7 / 14 4. Operating the machine 4.1. Performing a test run on the machine The machine may not be used before a test run has been performed and all the functions of the machine have been tested. Both the test run and testing can only be performed by a person who has studied the machine’s manual.

  • Page 8: Machine Maintenance

    8 / 14 5. Machine maintenance The machine must be disconnected from its power source before any maintenance, adjustment, replacement or cleaning measures. Only use spare parts that are supplied by the manufacturer or your retailer. If the guards of the machine have to be removed for maintenance, they must always be reattached before the machine is activated.

  • Page 9: Lubrication

    9 / 14 Figure 5 (tightening the motor chain) 5.2. Lubrication The machine has 21 lubrication points in total, presented in the figures below. 1. Chain conveyor (A) chains 3 pcs, dispenser stoppers (A) 3 pcs, Figure 6: A, B (every 50 hours) 2.

  • Page 10: Washing And Cleaning

    10 / 14 Washing and cleaning Loose debris and sawdust can be cleaned from the machine with pressurised air, for example. The machine can also be washed with a high-pressure washer as long as the water jet is not aimed directly at the bearings. Always ensure that the machine and the working area are sufficiently clean during operation.

  • Page 11: Spare Part Images

    11 / 14 9. Spare part images 9.1. Main assembly figure Hakki Feed 472 Translation Version 1...

  • Page 12: Main Assembly Parts List

    12 / 14 9.2. Main assembly parts list Number Name 48001 Cross conveyor 48002 Conveyor frame, left 48100 Conveyor frame, right 48028 Intermediate support 48009 Roller attachment rear, left 48014 Roller attachment rear, right 48044 Rear stop pipe 48015 Height adjustment pipe 96208 Hitch pin 48033...

  • Page 13: Guarantee Terms

    13 / 14 Guarantee terms The guarantee is valid for the original buyer for 12 months, starting from the date of purchase, but for no more than 1,000 operating hours. In guarantee matters, always contact the machine’s seller before undertaking any procedures. A guarantee claim must be issued to the seller in writing immediately upon discovery of a defect.

  • Page 14: Declaration Of Incorporation For Partly Completed Machinery

    Address: Valimotie 1, FI-85800 Haapajärvi The aforementioned person assures that Hakki Feed 472 log table (Hakki Pilke firewood processor accessory) Serial number: …………………………  is compliant with the applicable regulations of the Machinery Directive (2006/42/EC). This partly completed device may only be connected to a compatible Hakki Pilke firewood processor.
