INSTALLATION
READ THESE INSTRUCTIONS BEFORE YOU BEGIN INSTALLATION.
Ground yourself before touching board. Some components are static sensitive.
MOUNTING:
Circuit board may be mounted in any position. If circuit board slides out of snap track, a
non-conductive "stop" may be required.
Use only fingers to remove board from snap track. Slide out of snap track or push against side
of snap track and lift that side of the circuit board to remove. Do not flex board or use tools.
POWER CONNECTIONS:
1) 24 VAC - with power off, connect 24 VAC transformer to the board. Check the wiring
configuration of any other loads that may be connected to this transformer. Any field device
connected to this transformer must use the same common. If you are not sure of other field
device configuration, use separate transformers.
ADVANCED CONTROL TECHNOLOGIES, INC.
Indianapolis, Indiana 46278
(800) 886-2281

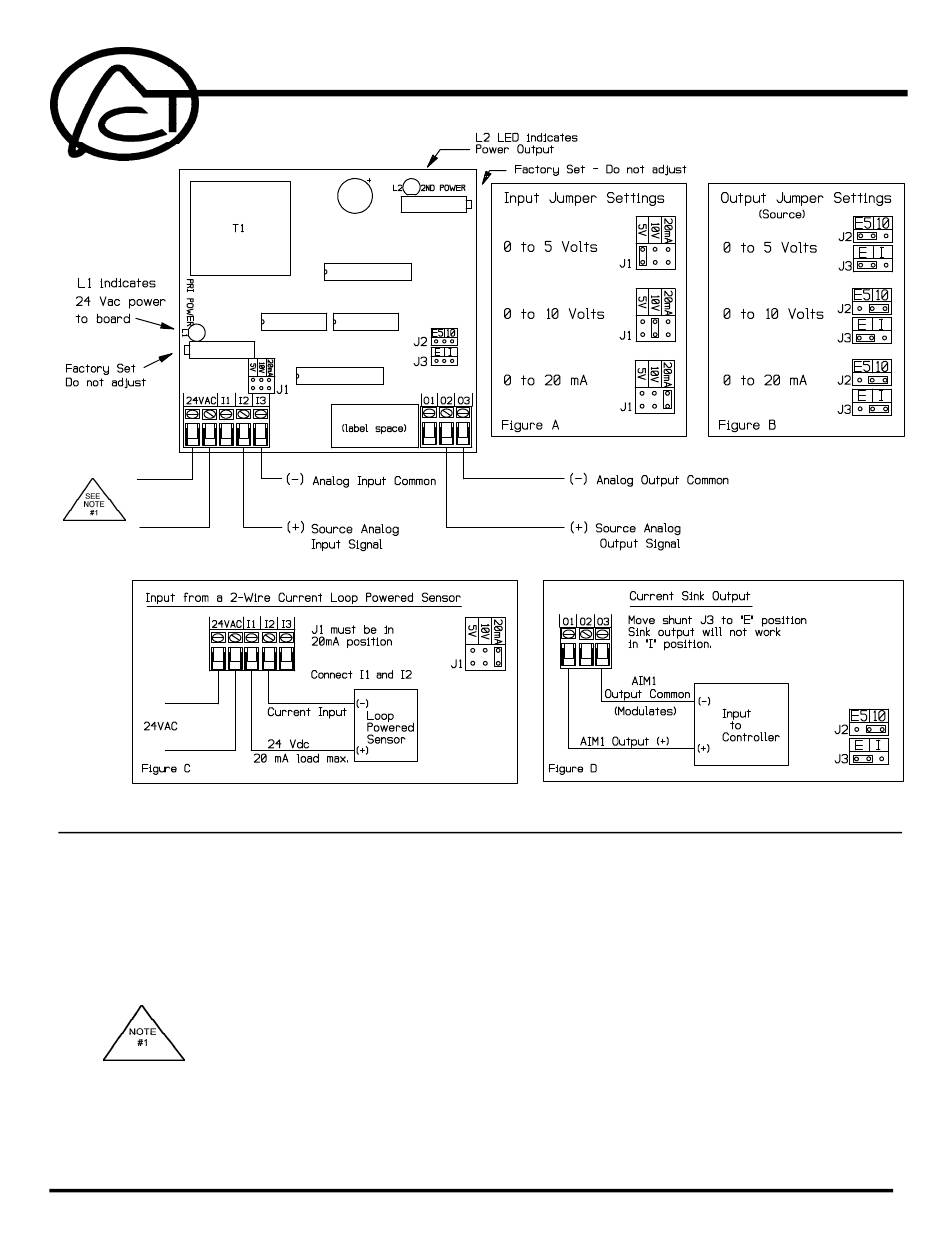

1 to 1 Analog Isolation Module
1
AIM1
AIM1 Installation Instructions
P/D 071897 Rev. A
