56621
Hex Cap Nuts
(10 per package)
Installation Instructions, Cap Nuts
Both Cap Nuts function the same.
Hex Cap Nuts are standard on many products.
Dome Cap Nuts are standard on hinges, but
are suitable for use in place of Hex Cap Nuts
for decorative applications.

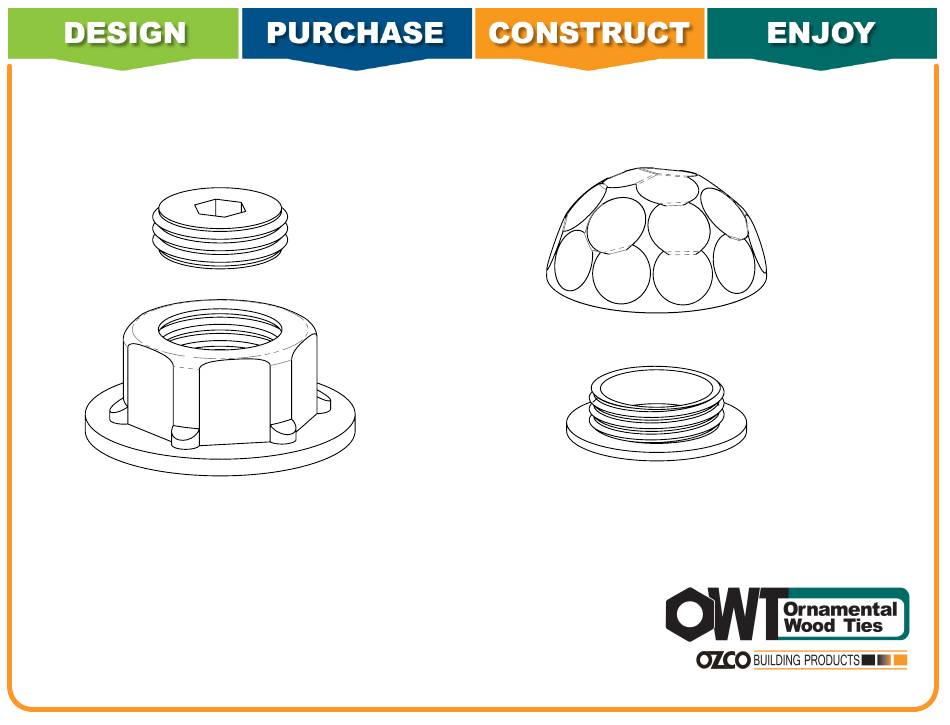

Both shown in exploded view
V1.00 - Installation Instructions effective May 1, 2015 and reflects information that available as of April 10, 2014. This information is
updated periodically and should not be relied upon after May 1, 2015. Please visit www.OZCOBP.com to get current information
Installation Instructions
Hex Cap Nuts (56621) & Dome Cap Nuts (56622)
56622
Dome Cap Nuts
(10 per package)
1
Advertisement
Table of Contents
Related Manuals for OZCO 56621
Summary of Contents for OZCO 56621
- Page 1 Installation Instructions Hex Cap Nuts (56621) & Dome Cap Nuts (56622) 56621 56622 Hex Cap Nuts Dome Cap Nuts (10 per package) (10 per package) Both Cap Nuts function the same. Hex Cap Nuts are standard on many products. Dome Cap Nuts are standard on hinges, but are suitable for use in place of Hex Cap Nuts for decorative applications.
- Page 2 Suggested Tools (others may be required) Installation Instructions, Cap Nuts V1.00 - Installation Instructions effective May 1, 2015 and reflects information that available as of April 10, 2014. This information is updated periodically and should not be relied upon after May 1, 2015. Please visit www.OZCOBP.com to get current information...
- Page 3 use this end on finger power driver tight use this end on Timber Screw 3/8" driver (not included) step 1 securing Timber Screw (not included) do not use wrench on nut step 2 securing Hex Cap Nut Installation Installation Instructions, Cap Nuts V1.00 - Installation Instructions effective May 1, 2015 and reflects information that available as of April 10, 2014.
- Page 4 use this end on Timber Screw 3/8" driver (not included) screw Cap on base finger tight ONLY Dome Cap Nut shown with Timber Screw (not included) step 2 securing Dome Cap Dome Cap Nut Installation Installation Instructions, Cap Nuts V1.00 - Installation Instructions effective May 1, 2015 and reflects information that available as of April 10, 2014. This information is updated periodically and should not be relied upon after May 1, 2015.
- Page 5 Hex Cap Nuts Apply lubricant, then remove with 3/8" driver Dome Cap Nuts Lightly tap with RUBBER Mallet, then remove with fingers Disassembly if Cap/Dome is hard to remove Installation Instructions, Cap Nuts V1.00 - Installation Instructions effective May 1, 2015 and reflects information that available as of April 10, 2014. This information is updated periodically and should not be relied upon after May 1, 2015.
