Summary of Contents for Pyle Pro PMXU48BT

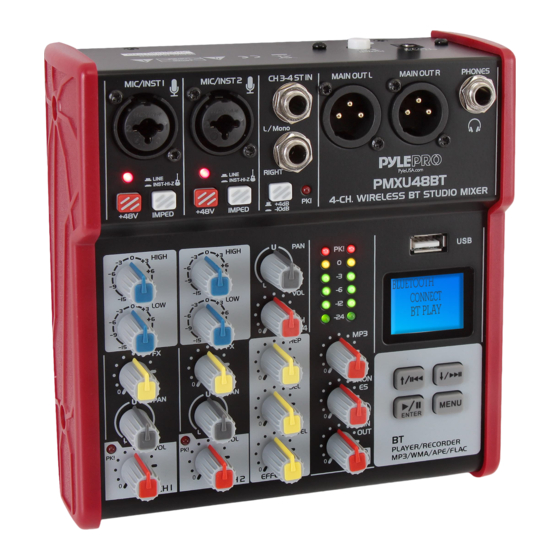

- Page 1 PMXU48BT - PMXU68BT Wireless BT Studio Mixer Pro Audio Digital DJ Audio Mixer Console (+48V Phantom Power)
- Page 2 One Year Warranty Period If there is reason to believe that condensation might have occurred, leave the device for several hours without turning on the power until the condensation This product is guaranteed for no material or workmanship defects within one year's period from the purchase date of the original buyer.
- Page 3 Front panel function Front panel function 1. Mike/Line/Guitar input jacks of MIC channel: The jacks are used to connect microphones or other audio devices in support of cannon plugs and 6.35 plugs. 2. +48V phantom switch/LED: When this switch is turned on, the +48V LED lights and DC +48 V phantom power is supplied to the XLR plug on MIC input jack.
- Page 4 8. Digital e ect processor adjusts the knob: The list is as follows: REP: adjust how many times the echo repeats; A. Backlight time: After there is not any operation, the backlight will turn o DEL: adjust the time interval between each echo. automatically after some certain time.This selection item is for you to choose LEVEL: adjust the volume of the e ect processor.
- Page 5 System Block Diagram PMXU48BT - PMXU68BT Wireless BT Studio Mixer Pro Audio Digital DJ Audio Mixer Console (+48V Phantom Power) PMXU48BT • (2) XLR/14’’ Combo Audio LINE/Microphone Inputs • +48V Phantom Power, Independent Mic Channel • Audio Mixer Type: 4-Channel •...
- Page 6 (Smartphones, Tablets, Laptops, Computers, etc.) • Bluetooth Network Name: ‘PYLEPRO MIXER’ • Bluetooth Version: 2.1 • Wireless Range: Up to 33’+ ft. PMXU48BT Technical Specs: • CH 1/2 MIC/LINE: Gain: -14+40 dB; • 2 Band Graphic EQ: 80Hz/12KHz, +15dB •...
