HIGH POWER STEREO SPEAKER SELECTOR
MODEL : PSS4 / PSS6
www.pyleaudio.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSS4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyle Pro PSS4

Summary of Contents for Pyle Pro PSS4

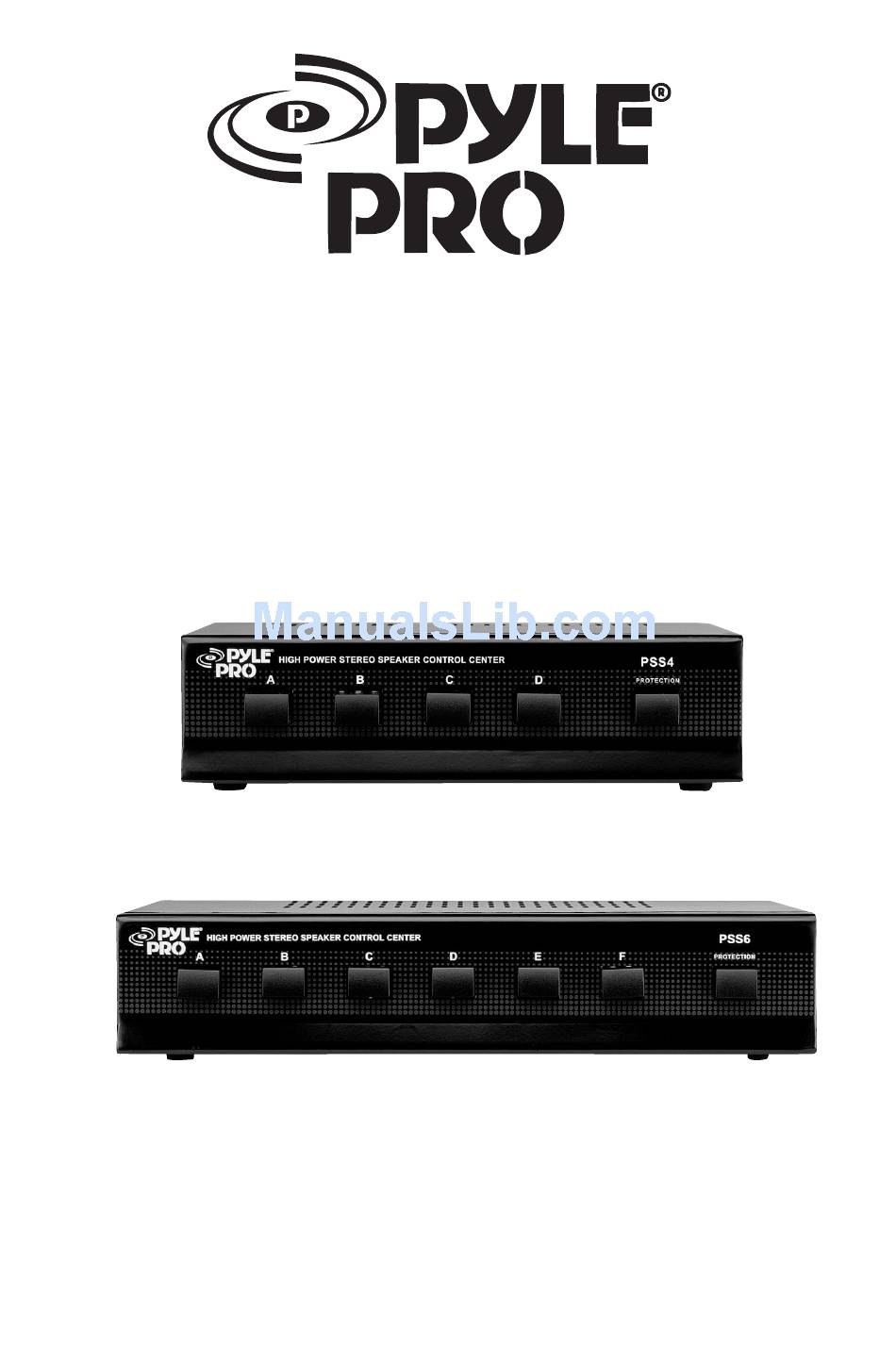

  • Page 1 HIGH POWER STEREO SPEAKER SELECTOR MODEL : PSS4 / PSS6 www.pyleaudio.com...
  • Page 2 The control center lets you use one to four (PSS4) or six (PSS6) sets of speakers at a time, and is designed to operate with a stereo receiver/amplifier that has a maximum of 100 watts per channel, and with speaker systems that have a minimum impedance of 8 ohms (see “Impedance Chart”...

  • Page 3: Making The Connections

    • Use the PYLE PRO Speaker Selectors only with amplifiers rated at 100 watts per channel or less. • Your PYLE PRO Speaker Selector is designed to accept any size cable up to 14 gauge non-terminated speaker wire. If you’re using non-terminated speaker wire, do not use any speaker wire that is larger than 14 gauge.
  • Page 4 Press open the desired SPK terminals on the control center. Insert the speakers’ positive (+) wires in the positive (red) terminals, and negative (-) wires into the nagative (black) terminals, according to the respective L (left) and R (right) terminals. Then press the tabs to close them.

  • Page 5: Operation

    Notes: • If your receiver/amplifier has more than one set of speaker terminal (A and B), connect only one or the other to the control center. • For the best results, we recommend 14-gauge, two conductor speaker wire (not supplied) for most connections. If you plan to located the speakers further than 80 feet from the control center, use a heavier gauge of wire.
  • Page 6 The chart below shows the impedance for all possible combinations of 8-ohm speakers. PSS4 Speaker Sets On Impedance (Ω)

  • Page 7: Specifications

    Frequency Response Channel Separation Crosstalk between channels Speaker terminal wire size requirements Dimensions (WxHxD) Weight 50W (R.M.S.)/ch, 100W (Max)/ch 20 Hz to 20KHz 80 dB 50 dB 14-22 awg 190x50x120 mm (PSS4) 250x50x150 mm (PSS6) 0.81kgs (1.79lbs) (PSS4) 1.15kgs (2.54lbs) (PSS6)

This manual is also suitable for:

Pss6Pss6
