Keene P180 Quick Start Manual

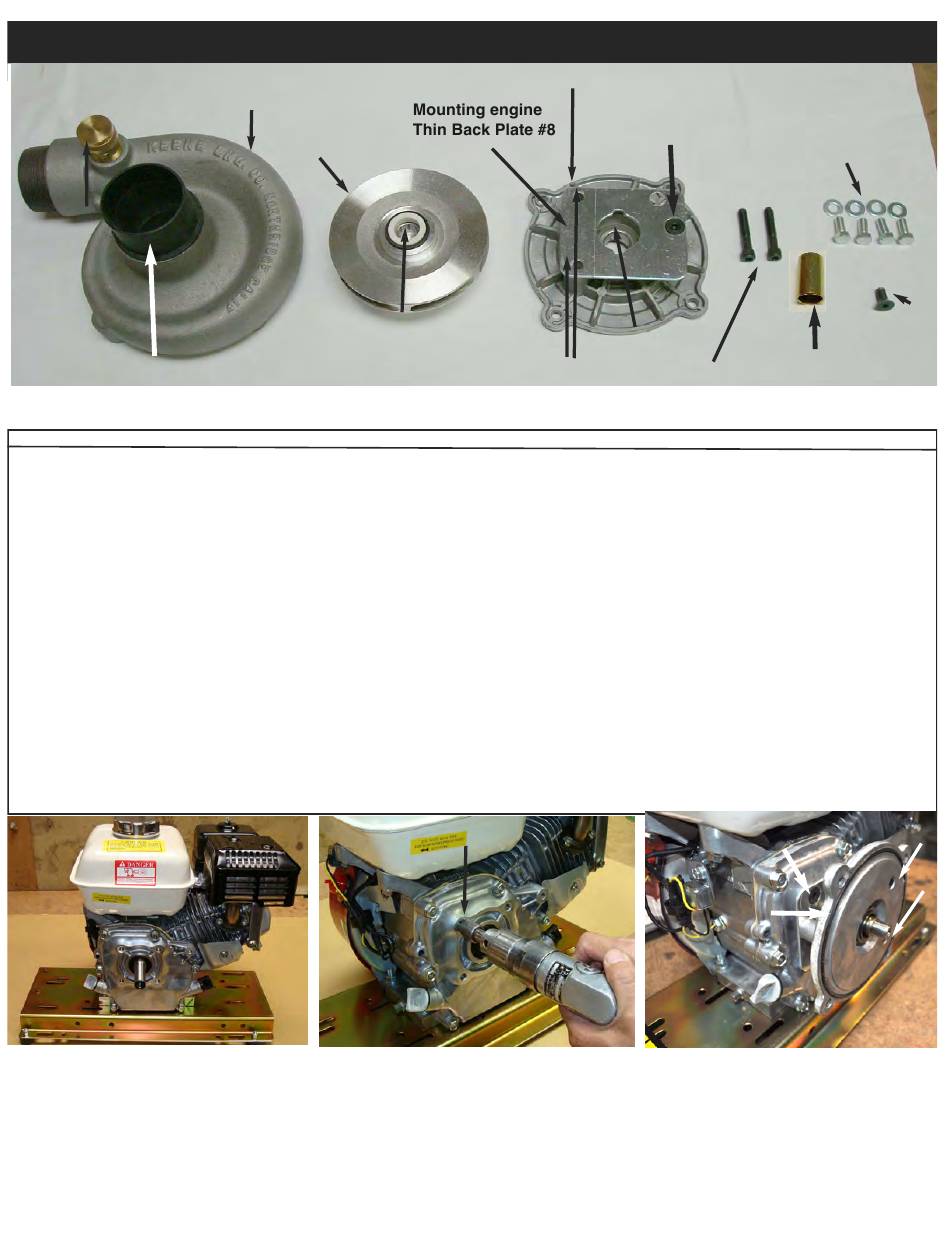

P 180 T H R E A DE D SHAFT PUMP ASSEMBLY
Pump Housing #2
Flusher
Adapter
#16 & 17
Hose Adapter #1
TOOLS REQUIRED: Short Shank &Standard Allen wrench 3/16ths. Standard 1/4 "Allen wrench, a 82 Degree x
1/2 inch to 3/4 " diameter counter sink tool and a 1/2" combo wrench. A small tube of silicone adhesive.
ITEM #
1 Hose adapter
2 Pump Housing
3 Impeller
4 Ceramic Seal
5 Pump Seal (Pump Back plate)
6 Mounting back plate bolts (5/16 x 1 1/2 Inch Flat head
Allen Head Bolt)
7 Mounting back plate bolt counter sink (1" x 5/16
Flat head Allen Bolt 82 Degrees)
8 Engine Thin Mounting back plate
9 Pump Mounting back plate
10 Pump Housing Mounting bolts
11 Pump Housing Mounting washers
12 Pump Housing "O" Ring Gasket
13 Impeller Shaft Bushing
14 Comrpessor Pulley (with shaft bushing pressed in)
15 Compressor V Belt (T80 BeltA24)
16 Flusher Adapter Cap
17 Flusher Adapter
Figure
#1
MOUNT BACK PLATE
1. (Fig #2) First counter sink only one bolt hole on the engine (located at the 10 oclock position) About 1/8"
deep to accomodate (item #7) the short Mounting plate bolt. Using a standard 82 Degree x 1/2 inch to 3/4 "
diameter counter sink tool.
Impellar #3
Ceramic Seal Impellar #4
Mounting Pump Back Plate Bolts Long #6
DESCRIPTION
Counter sink hole
Pump Back Plate #9
Mounting engine Back
Plate Short Bolt #7
Pump seal#5
QUANTITY
(KAC BeltA27)
Figure
Pump
Housing
#2
O Ring
Gasket
(Not
Shown
in above
diagram)
Pump Housing
Bolts & Washers
#10 & #11
Mounting
Engine
Back Plate
shaft
Bolt Short #7
Bushing #13
PART NUMBER
1 HA25
1 181
1 182
1 WPS2
1 WPS2
2 MB
1 MBS
1 105E
1 105
4 HB
4 HW
1 104
1 ISB
1 PU25WSB
1
1 FAC
1 FA
7
#
Figure 3
#6
#6
