Keene P180 Quick Start Manual

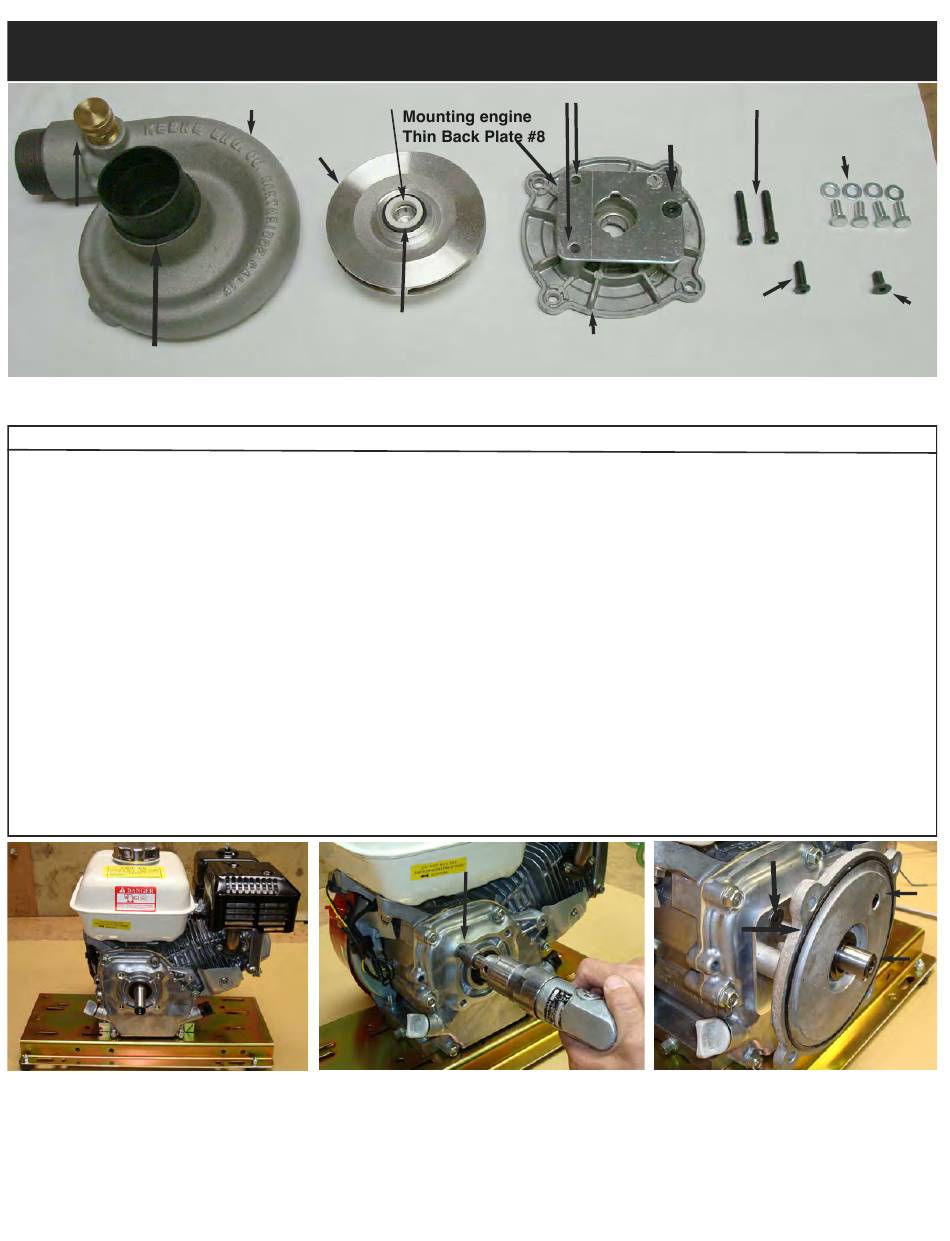

P18 0 K E Y WAY PUMP ASSEMBLY
Pump Housing #2
Flusher
Adapter
#14 & 15
Hose Adapter #1
TOOLS REQUIRED: Short Shank &Standard Allen wrench 3/16ths. Standard 1/4 "Allen wrench, a 82 Degree x
1/2 inch to 3/4 " diameter counter sink tool and a 1/2" combo wrench. A small tube of silicone adhesive.
ITEM #
1 Hose adapter
2 Pump Housing
3 Impeller
4 Pump Seal (Impeller seal complete containes 2 parts 4 & 5)1
5 Pump Seal (Back plate)
6 Mounting back plate bolts (5/16 x 1 1/2 Inch Flat head
Allen Head Bolt)
7 Mounting back plate bolt counter sink (1" x 5/16
Flat head Allen Bolt 82 Degrees)
8 Engine Thin Mounting back plate
9 Mounting back plate
10 Pump Housing Mounting bolts
11 Pump Housing Mounting washers
12 Pump Housing "O" Ring Gasket
13 Impeller allen button head Bolt
14 Impeller Key
15 Impeller Attaching Bolt (Allen Head 5/16 x 1" Button head)
16 Flusher Adapter Cap
16 Flusher Adapter
17 Compressor pulley (Not shown)
18 Compressor V Belt (Not shown)(T80 BeltA24) (KAC BeltA27) 1
Figure 1
MOUNT BACK PLATE
1. (Fig #2) First counter sink only one bolt hole on the engine (located at the 10 oclock position) About 1/8"
deep to accomodate (item #7) the short Mounting plate bolt. Using a standard 82 Degree x 1/2 inch to 3/4 "
diameter counter sink tool.
Impellar Key #12
Impellar #3
Pump Seal Impellar #4
DESCRIPTION
Counter sink hole
Mounting Back Plate Bolts Long #6
Mounting Back Plate
Bolt Short #7
Mounting Back Plate #5
QUANTITY
Pump
Housing
O Ring
Figure
Gasket
#2
(Not
Shown
in above
diagram)
Pump Housing
Bolts & Washers
#10 & #11
Impeller
Mounting Back
allen head
Plate Bolt Short
Button
#7
Bolt #13
PART NUMBER
1 HA25
1 181
1 182
WPS2
1 WPS2
2 MB
1 MBS
1 105E
1 105
4 HB
4 HW
1 104
1 ABH
1 IK
1 IAB
1 FAC
1 FA
1 PU25WSB
#7
Figure 3
#6
#6
