Equitel E411 Installation Manual

Equitel Network Audio

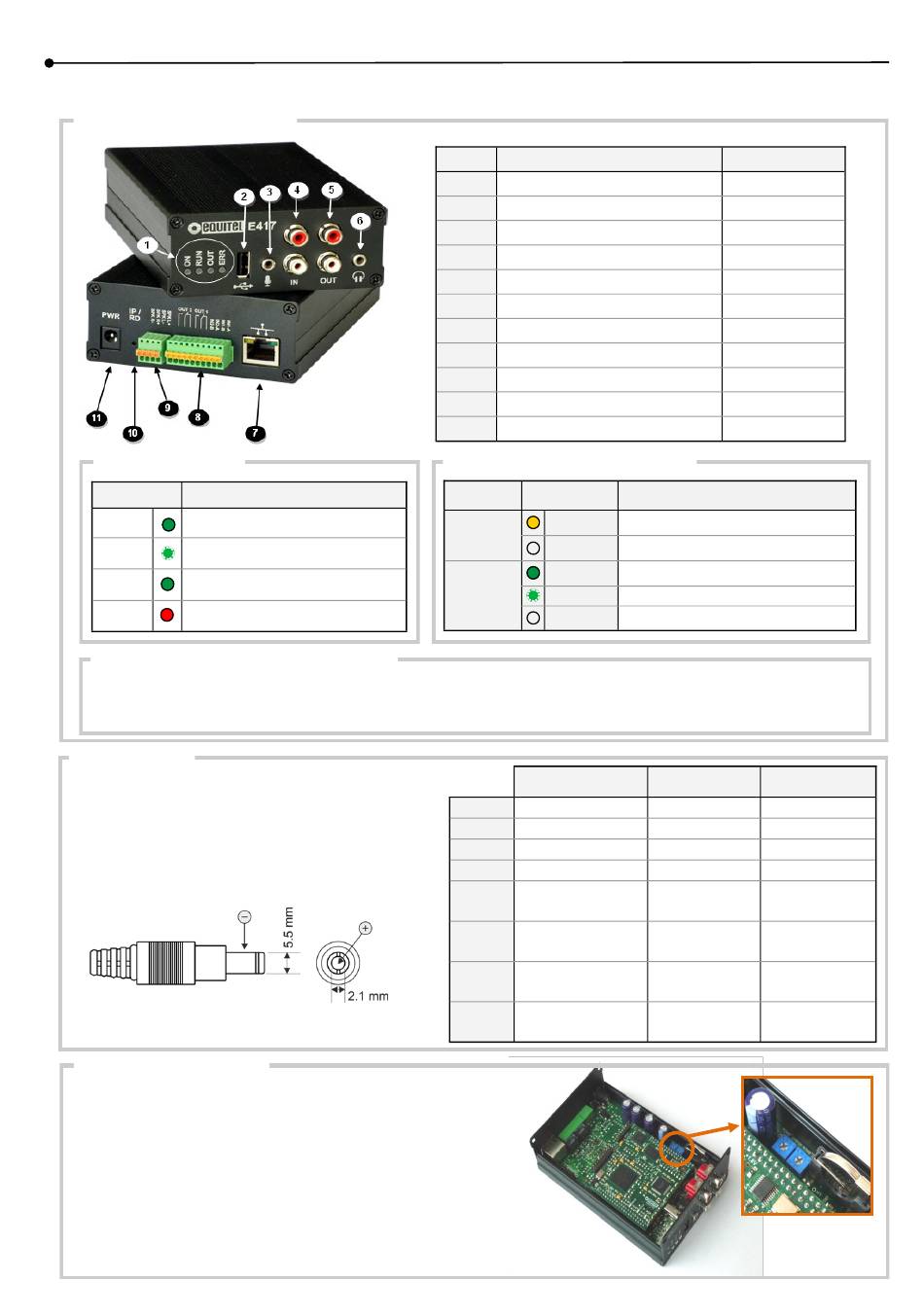

Installation guide

Connectors and indicators:

LED's indicators:
LED
ON Device is powered
RUN Device is working properly
OUT Active audio output
ERR Indicates some kind of error

IP recovery and reset default button:

The "IP/RD" button has two funtions:
Indicate IP address: When pressed momentarily (1 second), the IP adress is set via the audio outputs.
Reset to default settings: When pressed for more than 6 seconds, the default settings are restored. Network configuration is included.

Power supply:

The external power supply connector needed is 5.5x2.1mm,
with the polarity shown in the figure.
The minimum power requirements depend on the device and
the usage, as shown in the table.

Amplified audio output:

There are two internal potentiometers in the device to limit the maximum
output power sent to the speakers.
Devices are shipped with potentiometers sent to maximum value.
If the uses speakers power is smaller than the maximum output of the
device, the potentiometers must be adjusted in order to prevent the
speakers destruction.
For more information, consult the user manual available in www.equitel.es
Element Description
Meaning
Audio over IP decoders/mixers E411, E413,
E415, E417
1 LED's Indicators
2 USB Connector
3 Microphone Input
4 Audio line input
5 Audio line out
6 Headphone out
7 Ethernet
8 Terminal for I/O contacts
9 Amplified audio output terminals
10 IP recovery and reset default button
11 Power supply connector
LED's indicators Ethernet port:
LED Status
ON
SPEED
OFF
ON
LINK/ACT
Blinking
OFF
Amplifier not used
E411
12V / 1A
E413 12V / 1A
E415
12V / 1A
E417 12V / 1A
12V / 1A or
E411-P
PoE (802.3af)
12V / 1A or
E413-P
PoE (802.3af)
12V / 1A or
E415-P
PoE (802.3af)
12V / 1A or
E417-P
PoE (802.3af)
Applies to
All models
E417
E417
E417
All models
All models
All models
E413, E415, E417
E415, E417
All models
All models
Meaning
Link is established at 100Mb/s
Link is established at 10Mb/s
Link in the port
Activity in the port
No link in the port
Amplifier up to Amplifier up to
7w + 7w 12w + 12w
--- ---
--- ---
12V / 2A 24V / 2A
12V / 2A 24V / 2A
--- ---
--- ---
12V / 2A or
24V / 2A
PoE+ (802.3at)
12V / 2A or
24V / 2A
PoE+ (802.3at)
