Summary of Contents for Shott SF60 SIDE

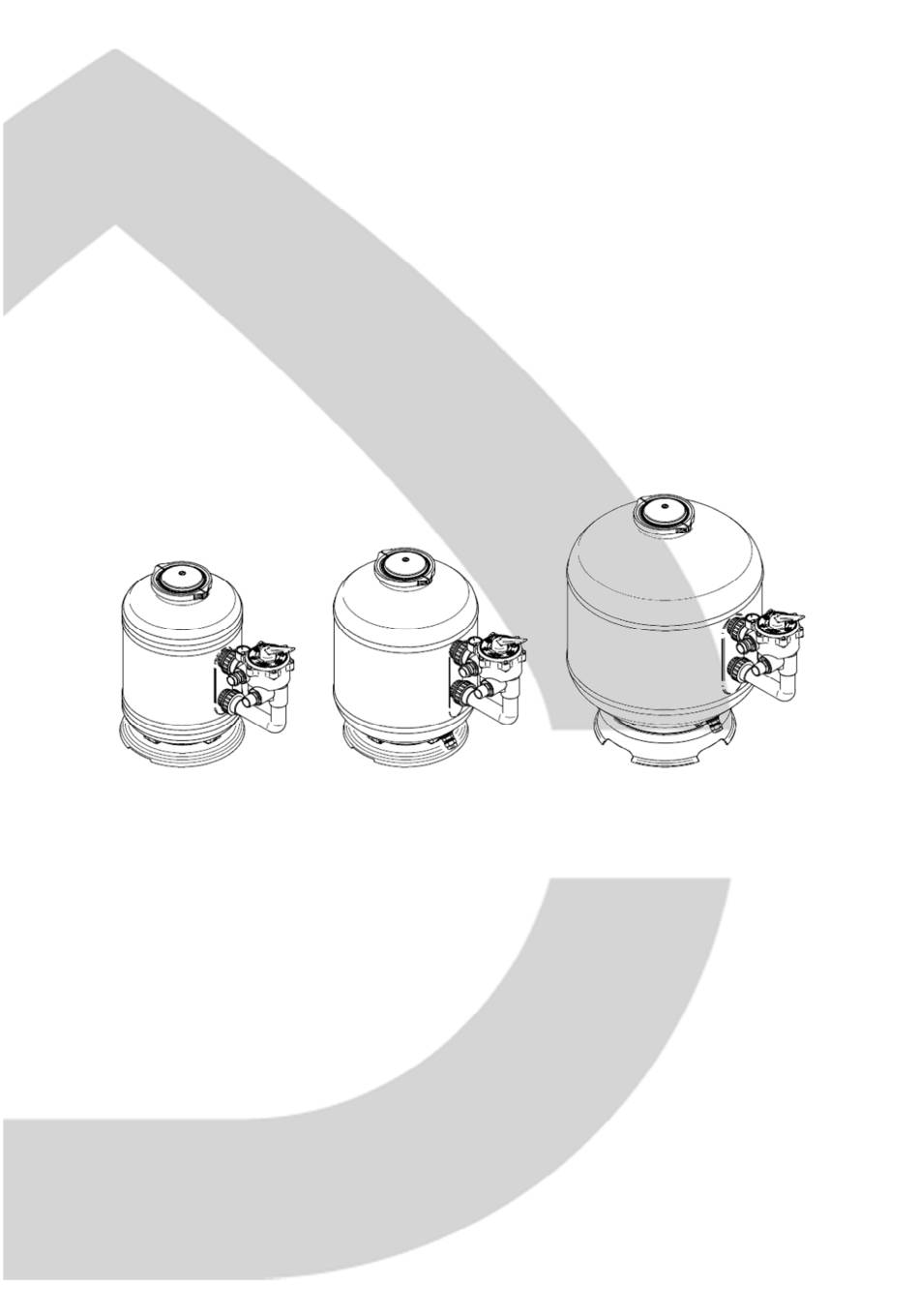

Page 1 SF60/PPF60 SIDE SF85/PPF85 SIDE SF200/PPF200 SIDE (EN) USTOMER MANUAL...
Page 2 Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 2-28...
Page 3: Table Of Contents
I N D E X Content organisation and consultation methods..................4 General warnings and user information....................6 Product presentation..........................8 Technical specifications and features....................9 Installation............................10 Operations and use..........................17 User instructions..........................18 Routine, scheduled and extraordinary maintenance................20 Troubleshooting...........................
Page 4: Content Organisation And Consultation Methods
Content organisation and consultation methods. 1.1 Symbols. Indicates hazardous situations and warnings. Carefully read the parts of the user manual marked with this symbol. Indicates that work must not be performed on live electrical devices. This work may only begin after all suitable safety measures required by current international and/or national regulations are taken.
Page 5 13. Skimmer: a filter that keeps the swimming pool surface clean. 14. Power plug: mechanical connector that can be inserted in a complementary electrical socket (power outlet). 15. Maximum working pressure: maximum pressure the product is able to sustain during operations. 16.
Page 6: General Warnings And User Information
2.2.1 General warnings. SHOTT International srl continuously strives to improve its products. We trust the user will understand the technical modifications SHOTT International srl reserves the right. SHOTT International srl is not liable for any damages due to improper product use.
Page 7 2.3 Contacts and useful addresses. Information at: • Shott International srl +39 049 9401150. • www.shott.it. Increase in body temperature over physiological limits, maximum limit 37 [°C]. Decrease in body temperature over physiological limits, minimum limit 35 [°C].
Page 8: Product Presentation
Product presentation. 3.1 Product scope. These filters (product) are the most reliable nowadays in the market for the cleaning and the maintenance of your domestic swimming pool. They find their application from children to professional’s aboveground pools. Each model is provided of a multifunctional multifunctional valve that allows the application of the product in many different ways.
Page 9: Technical Specifications And Features
Technical specifications and features. See Tab. 2. SF60 SF85 SF200 PPF60 PPF85 PPF200 [mm] [mm] 0.12 0.17 0.32 Ø 0.4 – 0.8 [mm] 40-50 75-80 150-160 <1.75 >=45 [µm] (>300) (45-55) (60-70) (80-100) [m³] 6000 12000 18000 [l/h] (0.2-0.4) filter (0.7-1.1) backwash [bar]...
Page 10: Installation
Installation. 5.1 Necessary tools. See Fig. 8. Fig. 8 5.2 Storage features and conditions. The product must be stored in a dry place, protected from weather. 5.3 Transport. Handle the product with care to avoid damages. 5.4 Handling. Be really careful when moving the product (full of filter media, sand) because it is very heavy. 5.5 Positioning.
Page 11 Tap Body. Closing Ring. Tap’s O-Ring couple. One is to be applied Lid’s O-Ring. internally and the other one externally. Lid. Fig. 11 5.6.2 Filter assembling. 1. Install the multifunctional valve (Fig. 12, # 1) on the filter (Fig. 13). Fig.
Page 12 Fig. 16 3. Clean really carefully the tank’s neck (Fig. 17), place the cover (Fig. 12, # 9, 2). Fig. 17 4. Now fix the cover (Fig. 12, # 3) to the tank through the supplied flange (Fig. 18). Work with a screwdriver to tight the screws.
Page 13 Fig. 20 Position the O-rings on the hosetail (Fig. 21). Fig. 21 Proceed as follows: 1. Screw the two hosetail (Fig. 22). Fig. 22 2. Insert onto the hose: ring nut, split ring (Fig. 23) Fig. 23 3. Insert the hose all the way in until it goes no further (Fig. 24) Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev.
Page 14 Fig. 24 4. Move all the components forward. 5. Tighten the nut (Fig. 25). Fig. 25 5.6.4 Connection to the skimmer and to the pump. Apply some supplied teflon around the hose connector (hydraulic parts) to guarantee a safe sealing. Position the O-rings on the hosetail (Fig.
Page 15 Fig. 28 2. Skimmer tube (Fig. 30, # 2): join the skimmer connection to the frontal connection of the filter pump (inlet Fig. 29, IN). Fig. 29 3. Return-tube (Fig. 30, # 3): join the connection on the multifunctional valve marked with RETURN/POOL to the entrance mouth connection of the swimming pool.
Page 16 WASTE Fig. 31 2. Start the pump and make a BACKWASH of about 2÷3 minutes. 3. Right after this stop the pump and change the multifunctional valve lever position on RINSE. 4. Re-start the pump and rinse for about 30 seconds. 5.
Page 17: Operations And Use
Operations and use. Do not use glues, sealers or other chemical products on threads or other parts of the product. 6.1 Description of operation. The product you have purchased carries out the mechanical purification of the water that, passing through the filter media (sand), is cleaned of all undissolved substances held back by the filter media.
Page 18: User Instructions
User instructions. 7.1 Foreseen use and adjustments. We suggest to start the filter twice a day for 4 or 5 hours. Regularly check if backwash is necessary, please see Tab. 2. 7.1.1 Use and functioning of the multifunctional valve. Always switch off the pump when operating on the multifunctional valve’s lever. It is recommended to install valves in the inlet and outlet pipelines (hydraulic parts).
Page 19 WASTE Fig. 33 Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 19-28...
Page 20: Routine, Scheduled And Extraordinary Maintenance
Routine, scheduled and extraordinary maintenance. Before proceeding with any maintenance activity, remember to disconnect the power plug from the power outlet, and not to put your hands in the water if the product (pump) is turned on. Do not lubricate and/or use detergents and/or chemical products to clean the product. Replace damaged components and/or deteriorated as quickly as possible, use only original spare parts.
Page 21 Fig. 34 Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 21-28...
Page 22: Troubleshooting
Troubleshooting. ROBLEM AUSE OLUTION OLUTION The product is dirty Clean the product. hydraulic parts Please consult a Fix the hydraulic parts. 1. Low flowrate obstructed or bent. skilled from outlet technician. The pump has not been primed Prime the pump. correctly.
Page 23: Retail And Spare Parts And Relevant Documentation
10 Retail and spare parts and relevant documentation. See Tab. 5 refer to Fig. 35, Fig. 36, Fig. 37, Fig. 38, Fig. 39. Replace any damaged and/or worn components as quickly as possible; use only original spare parts. SF60/PPF60 SF85/PPF85 SF200PPF200 1140068 XR900I38...
Page 24 Fig. 38 Fig. 39 Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 24-28...
Page 25 Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 25-28...
Page 26 Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 26-28...
Page 27 Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 27-28...
Page 28 HOTT NTERNATIONAL , 35 IA DELLE EZZE 35013 C (PD) - I ITTADELLA TALY . +39 049-9401150 . +39 049-9409140 info@shott.it MAIL www.shott.it Nome file: 7540029EN - CUSTOMER MANUAL SF60_200 TOP EN Rev. 0 23/12/2015 File name: 28-28...
