Helvar's data driven Service Kit enables sending of data from a lighting system to a cloud platform where authorised
users can access it through a REST API or a web browser interface.
The package also provides an encrypted VPN connection for remote Designer assistance to ensure optimal lighting
system performance with very little downtime.

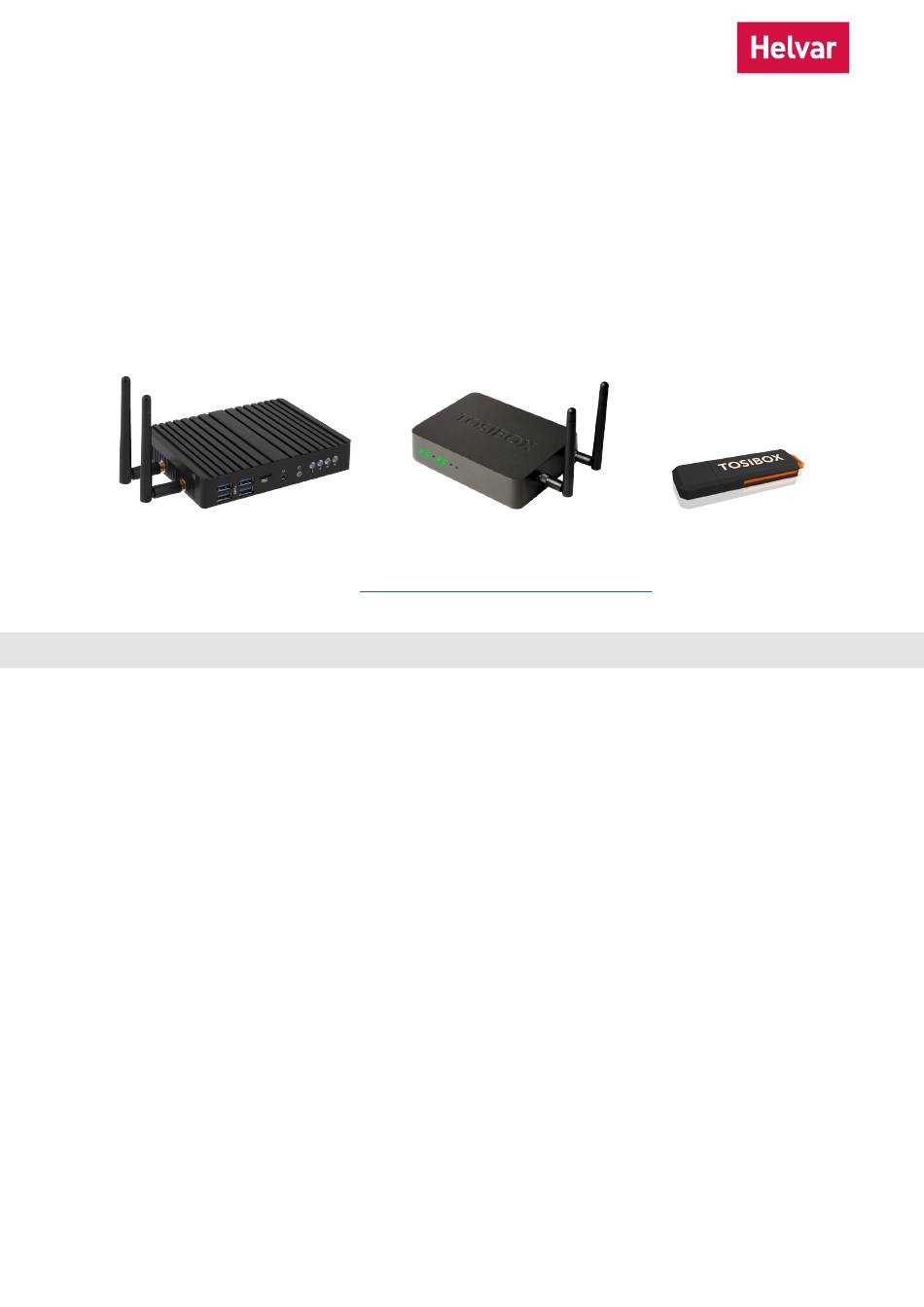

Helvar's Service Kit consists of the following products:
1. Helvar Cloud Gateway (HCG), a small-form-factor computer that uploads the data from the lighting system to
Helvar's Cloud Platform via Ethernet or Wi-Fi.
2. TOSIBOX
Lock 100, a small-form-factor computer that provides an encrypted VPN connection to a lighting site's
®
router systems for remote Designer assistance.
3. TOSIBOX
Key 200, the cryptoprocessing device that establishes the VPN connection between the PC running
®
Designer and the TOSIBOX
Helvar Cloud Gateway
Contents
Section
1.
2.
3.
4.
5.
6.
7.
8.
9.
®
13.3. TOSIBOX
®
Helvar | Data is subject to change without notice.
Service Kit
Installation and Set-Up Guide
Lock 100.
®
Online FAQs:
https://helvarsupport.zendesk.com/hc/en-us
®
®
®
®
®
TOSIBOX
Lock 100
®
Page
®
TOSIBOX
Key 200
®
2
2
2
3
3
6
7
8
8
9
9
9
10
10
10
12
13
15
16
17
17
18
18
19
www.helvar.com
1
Advertisement
Table of Contents
Related Manuals for HELVAR PSU 12 V 30 W HCG
Summary of Contents for HELVAR PSU 12 V 30 W HCG
-
Page 1: Table Of Contents
Service Kit Installation and Set-Up Guide Helvar’s data driven Service Kit enables sending of data from a lighting system to a cloud platform where authorised users can access it through a REST API or a web browser interface. The package also provides an encrypted VPN connection for remote Designer assistance to ensure optimal lighting system performance with very little downtime. -
Page 2: Overview
1. Overview Follow these steps to install and set up Helvar’s Service Kit package: 1. Install the Helvar Cloud Gateway. For details, see section 3 on page 2. 2. Configure the router network and the workgroup. For details, see section 4 on page 7. -
Page 3: Mount The Psu On The Din Rail
Follow these steps to mount the Helvar Cloud Gateway on a standard DIN rail: 1. Mount the PSU on the DIN rail. For details, see section 3.1. 2. Mount the Helvar Cloud Gateway on the DIN rail. For details, see section 3.2. - Page 4 1. Determine the mounting position of the HCG and identify in the following table the mounting plate holes that you need to use. To mount the HCG Use these holes Length of mounting DIN-Rail spacing in this position… in the mounting plate clip latch Helvar Service Kit: Installation and Set-Up Guide...
- Page 5 Slide the latch upwards or downwards to the length that is appropriate for your mounting orientation. For details, refer to the table on page 4. d. Push the latch backwards to lock it. CLICK! Helvar | Data is subject to change without notice. www.helvar.com...
-
Page 6: Connect The Psu, The Ethernet Cable For The Router Network, And The Ethernet Internet Cable And/Or Wi-Fi Antennas
If required, connect the Wi-Fi antenna to the magnetic base of the antenna extension. b. Set up your Helvar Cloud Gateway as close as possible to the centre of the area for which you want to provide wireless networking. -
Page 7: Configure The Router Network And The Workgroup
Note 2: The static IP address for the connection to the router network must be a unique IP address that does not conflict with any other devices on the network. Helvar | Data is subject to change without notice. www.helvar.com... -
Page 8: Connect To Helvar Cloud Platform
1. Open Google Chrome, and navigate to https://service.helvar.io 2. Click Sign Up, and then complete the process as directed. Once you are signed up, Helvar service will grant you access to your site(s) within two working days. Note: Before access is granted, an error may be shown on the web interface. -
Page 9: Mount The Psu On The Din Rail
Lock 100 on the DIN rail, refer to Tosibox Inc.’s documentation available ® at www.tosibox.com. 6.3. If required, connect the Wi-Fi antennas For recommendations on how to connect the Wi-Fi antennas, refer to section 3.1 on page 3. Wi-Fi antennas Helvar | Data is subject to change without notice. www.helvar.com... -
Page 10: Connect The Psu
To set up the IP address of the VPN adapter, follow these steps: 1. Connect a PC to the Service port of the TOSIBOX Lock 100 via an Ethernet cable. ® Service to PC Helvar Service Kit: Installation and Set-Up Guide... - Page 11 ® TOSIBOX Lock 100. ® 4. Click SETTINGS > Lock name, type an appropriate name for the TOSIBOX Lock 100 in the Lock Name text box, and ® then click Save. Helvar | Data is subject to change without notice. www.helvar.com...
-
Page 12: Set Up The Ip Address Of The Tosibox ® Lock 100
Lock 100 home page, click SETTINGS > NETWORK > LAN DHCP server to display the LAN DHCP ® server page. 2. Clear the DHCP server for LAN interface check-box, and then click Save. Helvar Service Kit: Installation and Set-Up Guide... -
Page 13: Connect The Tosibox ® Lock 100 To The Internet
Note: You should still be connected to the service port, and your browser should still be open to http://172.17.17.17. But if you are not, repeat steps 1–2 in section 8. Helvar | Data is subject to change without notice. www.helvar.com... - Page 14 The Enable button toggles to Disable. e. In the General Setup tab, type the name of the wireless network in the Network Name (ESSID) text box, and then select Client from the Mode drop-down list. Helvar Service Kit: Installation and Set-Up Guide...
-
Page 15: Connect The Lighting Router Network To The Tosibox ® Key 200
11. Connect the lighting router network to the TOSIBOX Key 200 ® Connect the lighting router network to the LAN 1 port of the TOSIBOX Lock 100 using an Ethernet cable. ® LAN 1 to router network Helvar | Data is subject to change without notice. www.helvar.com... -
Page 16: Test The Vpn Connection
Key 200 to establish connection to the TOSIBOX Lock 100. ® ® 7. Run Designer and check that the remote routers appear in the Devices tree. 8. Connect to the workgroup and use Designer normally. Helvar Service Kit: Installation and Set-Up Guide... -
Page 17: Technical Data
4 × USB 3.0 Not used Not used 2 × HDMI-out LAN 2 for router network Wi-Fi antenna connectors Rear panel Left panel DC input LAN 1 for internet (DHCP) Not used Helvar | Data is subject to change without notice. www.helvar.com... -
Page 18: Tosibox ® Lock 100
DC input VLAN antenna VLAN antenna USB 2.0 LAN 1 LAN 3 Not used 13.3. TOSIBOX Key 200 ® Dimensions (mm) For technical data, refer to Tosibox Inc.’s documentation available at www.tosibox.com. 21.5 Helvar Service Kit: Installation and Set-Up Guide... -
Page 19: System Diagram
14. System diagram LAN2 port LAN1 port Ethernet Internet LAN1, LAN2 WAN port or LAN3 port Helvar | Data is subject to change without notice. Doc. 7860396 issue 1, 2018-09-10...
