- Page 1 Voice Communication Microphone Online user guide for Shure Version: 4 (2019-I)
- Page 2 Shure Incorporated Table of Contents Audio Connections 522Voice Communication Microphone Unbalanced high-impedance operation: Balanced-line low-impedance operation: General Description Features Specifications Press-To-Talk Switch Operation Accessories Replacement Parts Impedance Selection Certifications Logic Connections...
-
Page 3: General Description

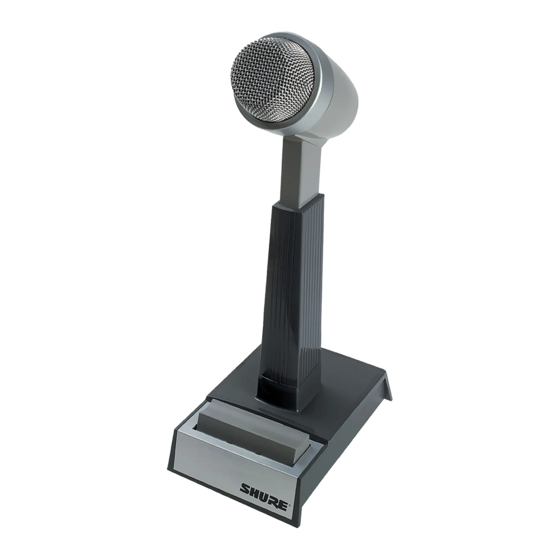

Voice Communication Microphone General Description The Model 522 is a dynamic base-station microphone for radio communications, paging, and dispatching systems. Its cardioid (unidirectional) pickup pattern suppresses unwanted background noise from nearby dispatchers, ventilating equipment, or of fice machines. It also can reduce feedback in public address paging applications. -
Page 4: Audio Connections
Use the switch located under the microphone base, near the cable entry, to select high (HI) or low (LO) impedance. Use the low-impedance position for long cable lengths under conditions of severe hum disturbance. Use Shure Model A95 Series Line Matching Transformers when using a low-impedance microphone line with a high-impedance amplifier input. -
Page 5: Specifications
Shure Incorporated Specifications Type Dynamic (moving coil) Frequency Response 60 to 11,000 Hz Polar Pattern Cardioid Output Impedance Dual. "Low" is 260 ohms for connection to microphone inputs rated at 19 to 300 ohms and "High" for con nection to high-impedance microphone inputs. - Page 6 Shure Incorporated Impedance Selection provides either high- or low-impedance operation. Switch Cartridge Shock Mount Internal rubber vibration isolator Cable 2.1 m (7 ft) four-conductor, two conductors shielded non-detachable Housing Two-tone gray ARMO-DUR, with dull-chrome-plated steel screen Weight 736 g (1 lb 10 oz.)
-
Page 7: Replacement Parts
K141S Certifications This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East & Africa Department: EMEA Approval Jakob-Dieffenbacher-Str.
