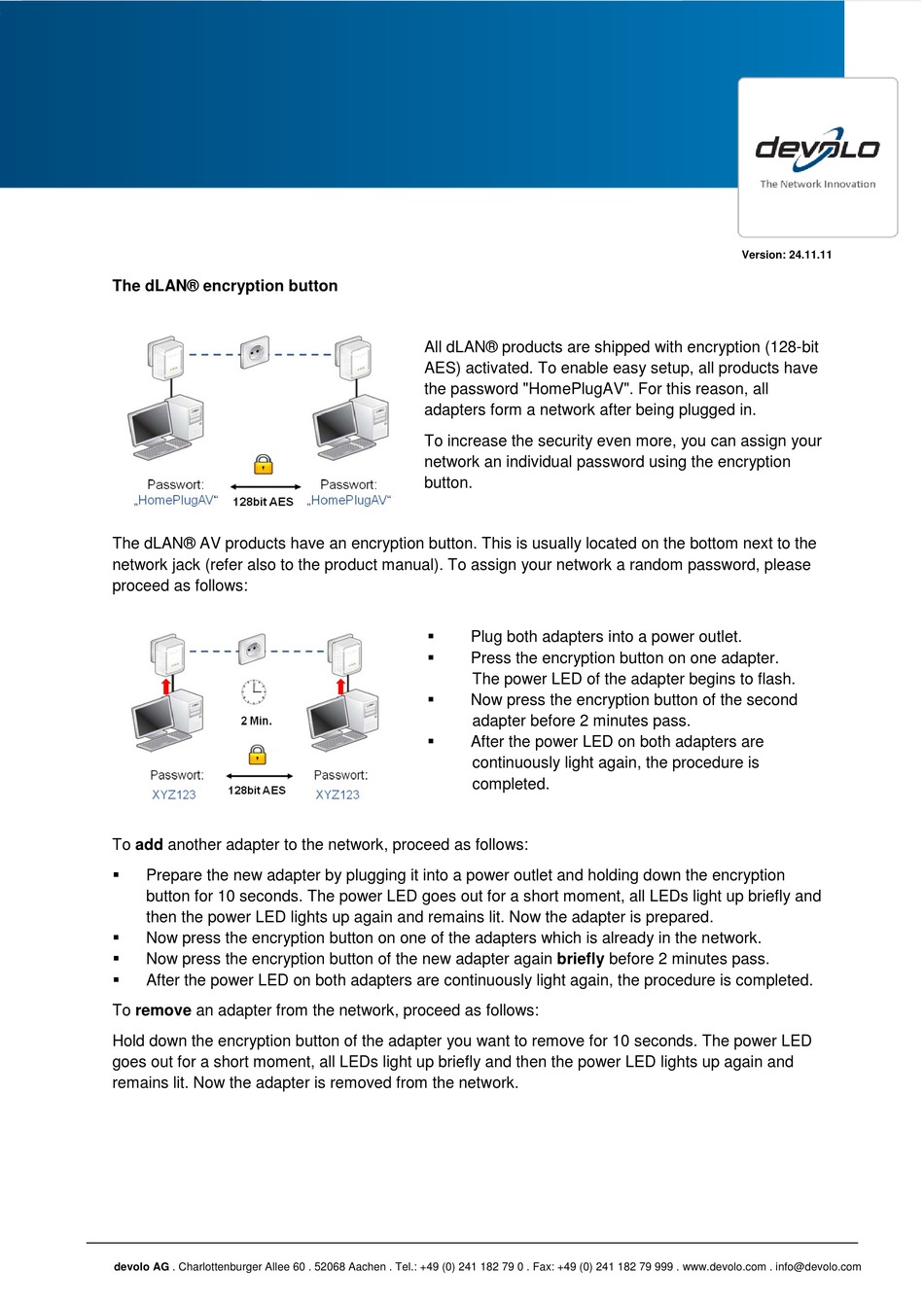

Devolo dLAN Quick Start Manual

The dLAN® encryption button
The dLAN® AV products have an encryption button. This is usually located on the bottom next to the
network jack (refer also to the product manual). To assign your network a random password, please
proceed as follows:
To add another adapter to the network, proceed as follows:

Prepare the new adapter by plugging it into a power outlet and holding down the encryption
button for 10 seconds. The power LED goes out for a short moment, all LEDs light up briefly and
then the power LED lights up again and remains lit. Now the adapter is prepared.

Now press the encryption button on one of the adapters which is already in the network.

Now press the encryption button of the new adapter again briefly before 2 minutes pass.

After the power LED on both adapters are continuously light again, the procedure is completed.
To remove an adapter from the network, proceed as follows:
Hold down the encryption button of the adapter you want to remove for 10 seconds. The power LED
goes out for a short moment, all LEDs light up briefly and then the power LED lights up again and
remains lit. Now the adapter is removed from the network.
devolo AG . Charlottenburger Allee 60 . 52068 Aachen . Tel.: +49 (0) 241 182 79 0 . Fax: +49 (0) 241 182 79 999 . www.devolo.com . info@devolo.com
All dLAN® products are shipped with encryption (128-bit
AES) activated. To enable easy setup, all products have
the password "HomePlugAV". For this reason, all
adapters form a network after being plugged in.
To increase the security even more, you can assign your
network an individual password using the encryption
button.

Plug both adapters into a power outlet.

Press the encryption button on one adapter.
The power LED of the adapter begins to flash.

Now press the encryption button of the second
adapter before 2 minutes pass.

After the power LED on both adapters are
continuously light again, the procedure is
completed.
Version: 24.11.11
