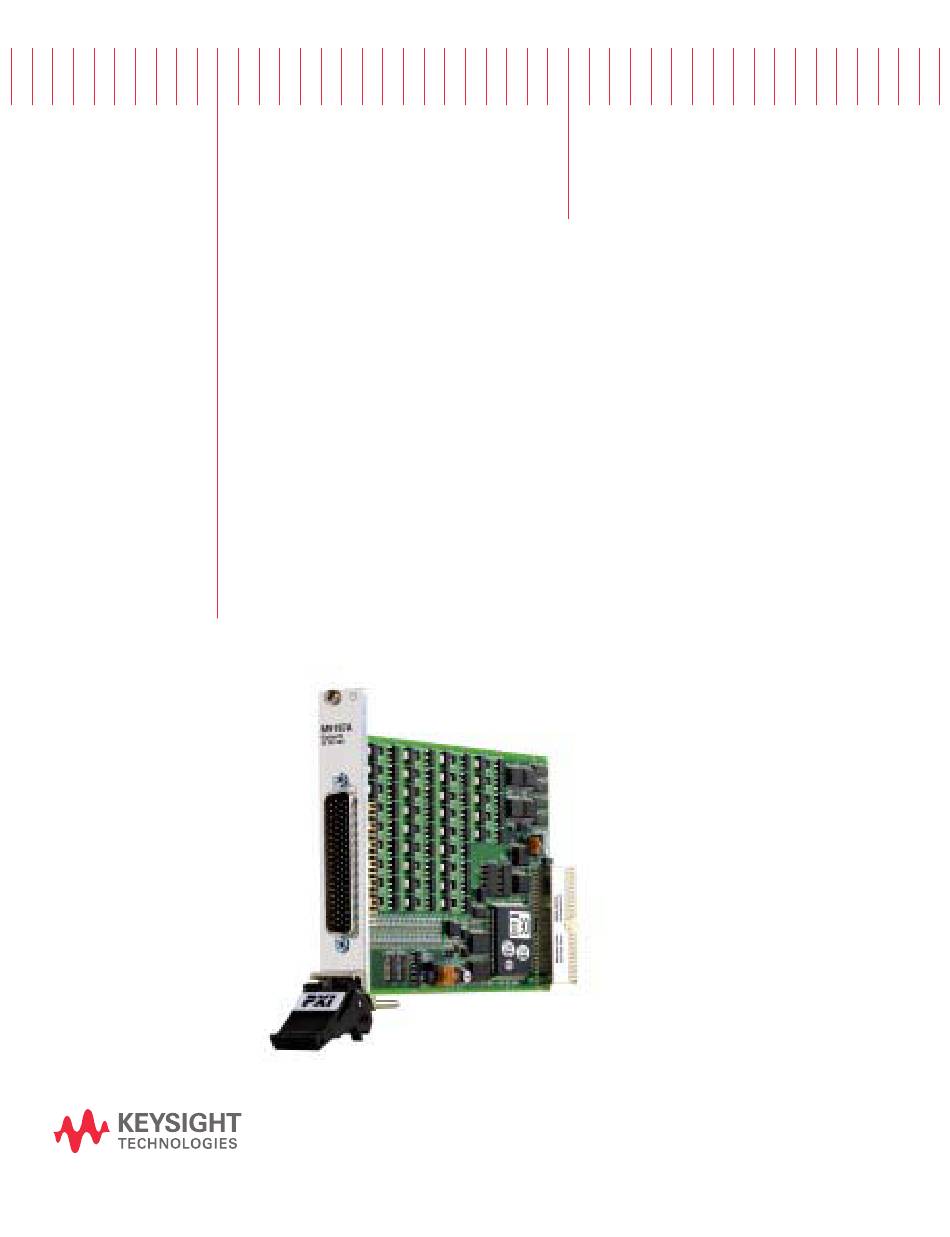

    Startup Guide Keysight PXI Digital IO Module Introduction The Keysight M9187A PXI Digital IO Module provides 32 high output voltage and current channels along with 32 dual variable threshold input channels. - Each of the output channels can drive the output either high (sourcing up to 0.4A) or low (sinking up to 0.5A), or three-stated (off).

  • Page 10: Step 1: Unpack And Inspect The Module

    Step 1: Unpack and Inspect the Module Step 1: Unpack and Inspect the Module Keysight’s PXI Modules are shipped in materials that prevent static electricity damage. The modules should only be removed from the packaging in an anti-static area ensuring that correct anti-static precautions are taken.

  • Page 11: Inspect For Damage

    To avoid damage when handling a module; do not touch exposed connector pins. Return the module for service Should it become necessary to return a Keysight module for repair or service, follow the steps below: 1 Review the warranty information shipped with your product.

  • Page 12: Step 2: Verify Shipment Contents

    Step 2: Verify Shipment Contents Your shipment should have included the following: - The Keysight PXI M9187A Digital IO module that you ordered. - This document (Keysight PXI M9187A Module Startup Guide). - A Digital IO Module Software and Product Information CD. This CD contains software, drivers and all product printed documentation in PDF format for the PXI Digital IO Module.

  • Page 13: System Requirements

    Step 3: Install the Software on the Host Computer System requirements The following table lists the minimum system requirements for Keysight IO Libraries Suite 16. In general, any x86 or x64 (except Itanium) should work but there may be a significant decrease in performance.

  • Page 14: Power The Controller

    4 Choose the default option for any “Found Hardware” dialogs Install Keysight IO Libraries Suite Keysight IO Libraries Suite 16.0 (or later) is required for the PXI modules. It includes the Keysight Connection Expert, the IVI Shared Components, and the VISA Shared Components.

  • Page 15: Install Instrument Drivers

    C++, C#, Visual Basic), Keysight VEE, MATLAB, or National Instruments Labview. Accept the license terms and click Next. – Keysight Software License Agreement for drivers for use with LabVIEW Software. The LAbVIEW driver provides access to the functionality of the module through LabVIEW VIs.

  • Page 16: Step 4. Connect The Controller To The Pxi Chassis

    - If you are using a desktop or rack mount PC, install the M9047A PCIe Desktop Adapter in the PC. With a Keysight Y1202A cable, connect the adapter to the System Interface module. - If you are using a laptop PC, install the M9045A PCIe ExpressCard Adapter in the laptop.

  • Page 17: Step 5: Install The Module In The Pxi Chassis

    - PXI hard ware does not support “hot-swap” capabilities (changing modules while power is applied to the chassis). - Before installing Keysight PXI Modules into the chassis, the chassis must be powered off to prevent damage to the PXI mod ule. Remove all cables/terminal blocks from the module prior to installing or removing the mod ule.
  • Page 18 If you are using a remote controller linked to the M9021A Cable Interface, you must Shut Down the PC BEFORE you power down the chassis. When you restore power, you must power up the chassis BEFORE you power up the PC. Keysight M9187A PXI Digital IO Startup Guide...

  • Page 19: Step 6. Verify Operation Of The Module

    Select the module in the center pane (Instrument I/O on this PC). The right-hand Pane shows the instrument properties. Select the Installed Drivers tab then click the Start SFP button. You can use the M9187A Soft Front Panel (SFP) software to set the outputs read the inputs, and verify operation of the module.

  • Page 20: Verify Operation

    If you have another application, either your own program or another instance of the SFP interface, that has initialized the M9187A module, then the SFP enters it’s “monitor” mode. In this mode, you must check the “Allow Control” check box (upper left corner) before you can actually set the digital output channels.

  • Page 21: Characteristics

    Module Functional Description The Keysight PXI M9187A Digital IO module conforms to the single slot, 3U form factor (100mm by 160mm / 3.94 in. by 6.3 in.) Eurocard standard. These modules meet PXI Specification 2.2. Local bus, trigger bus, and star trigger are not included.

  • Page 22: Module Programming

    Refer to the Soft Front Panel Help file for detailed operation of the module. For programming information, refer to the IVI C and LabVIEW driver help files. These help files are located on the Digital IO Module Software and Product Information Keysight M9187A PXI Digital IO Startup Guide...

  • Page 23: Module Front Panel, Connector And Pin Out

    (channel number). Figure 2 M9187A Front Panel Figure 3 shows the M9187A front panel connector (as viewed from the module front panel) and the connector pinout. Table 1 on page 25 lists the connector by signal (channel) number.
  • Page 24 Input 17 Input 24 Input 23 Input 22 Input 21 Input 28 Input 27 Input 26 Input 25 Input 32 Input 31 Input 30 Input 29 Figure 3 M9187A Front Panel Connector and Pinout Keysight M9187A PXI Digital IO Startup Guide...

  • Page 25: M9187A Module Accessories

    Output 27 Output 28 Output 29 9 Output 30 Output 31 Output 32 Table 1 M9187A Signal (Channel) Number to Connector Pin Out M9187A Module Accessories Model Description Y1181A PXI Connector Block: 78 pin, shielded, female D Sub Y1187A PXI Connector Cable: 78 pin, male to female, 1Meter...

  • Page 26: Y1181A 78 Pin Shielded Connector Block

    Y1181A 78 Pin Shielded Connector Block This shielded connector block provides a simple method of connecting wires to Keysight M9187A PXI Digital IO module with a 78 pin D-Type front panel connector. The connector block has a simple bar clamp for strain relief. The screw terminals accept wires up to 20AWG;...

  • Page 27: Y1187A, Y1188A 78 Pin Male To Female Connector Cable

    These cable assemblies are used to extend the front panel connections of the M9187A PXI Digital IO module. The cable is PFA copper/tin, 26AWG with a 3A current rating. Nominal resistance is 0.2/M. The Y1187A is 1m long and the Y1188A is 2m long.

  • Page 28: Disassembling The Connector Block Clam Shells

    Use only sufficient tension to secure the cable in place. 5 To reassemble the clamshell, make certain the screw locks are in place. Place the calm shell halves together. Tighten the two clam shell screws. Keysight M9187A PXI Digital IO Startup Guide...

  • Page 29: Electrical Operating Conditions

    Refer to the data sheet for maximum voltage, current, and power dissipation ratings for each module. For the latest specifications, check the Keysight web site at: www.keysight.com/find/pxi-dio. Keysight M9187A PXI Digital IO Startup Guide...
  • Page 30 Electrical Operating Conditions Keysight M9187A PXI Digital IO Startup Guide...
  • Page 31 For other unlisted Countries: www.keysight.com/find/contactus LAN eXtensions for instruments puts the power of Ethernet and the Web inside your test systems. Keysight is a founding member of the LXI consortium. www.pxisa.org PCI eXtensions for Instrumentation (PXI) modular instrumentation delivers a rugged PC-based high-performance measurement and automation platform.
  • Page 32 This information is subject to change without notice. © Keysight Technologies, 2014 Edition 3 December 2014 *M9187-90001* M9187-90001 www.keysight.com...
