Pulsed charge current
-
configurable mode of operation; charger or
-
Charger that can "listen" to the chemistry of the battery
-
Fast, smooth and battery friendly charging
-
Battery determines charging current by itself under supervision of Intelligent
-
microprocessor pulse charging system
4 charging programs, UNI (universal), AGM, GEL, CaCaWET starter battery
-
There is no warming up effect, which reduces battery life at overcharge
-
4 charging phase: bulk charge, absorption, equalization, float charge
-
Regenerate cells majorly, when they were charged improperly - Battery
-
desulfatization effect
Pulse-charging prolong the battery life.
-
Safe against short-circuit
-
Precise full charge indicator (green LED)
-
Working temperature range from 0º to +35ºC
-
START HELP button for completely discharged battery
-
Charging is independent of oscillations in the supply voltage (PWM
-
technology)
Console for mounting (option)
-

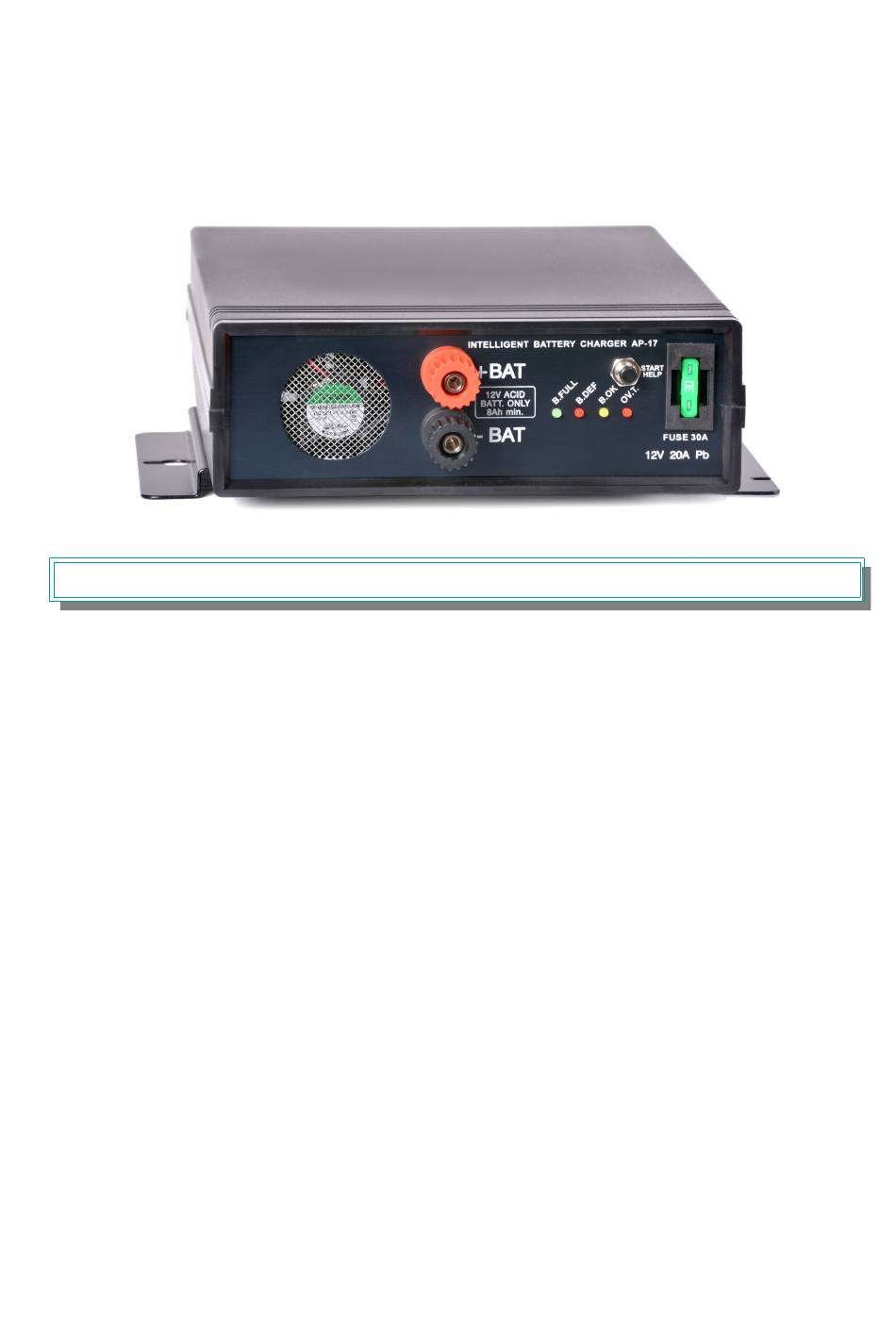

Intelligent pulse battery charger AP-17
INSTRUCTIONS FOR USE
Pulse battery charger AP–17
12V 20A, 24V 10A, 36V 6,5A, 48V 5A
CHARGER CHARACTERISTICS
buffer
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP–17 and is the answer not in the manual?

Questions and answers

Related Manuals for Eyra AP–17

Summary of Contents for Eyra AP–17

  • Page 1 Intelligent pulse battery charger AP-17 INSTRUCTIONS FOR USE Pulse battery charger AP–17 12V 20A, 24V 10A, 36V 6,5A, 48V 5A CHARGER CHARACTERISTICS Pulsed charge current configurable mode of operation; charger or buffer Charger that can "listen" to the chemistry of the battery Fast, smooth and battery friendly charging Battery determines charging current by itself under supervision of Intelligent microprocessor pulse charging system...

  • Page 2: Charger Overview

    Intelligent pulse battery charger AP-17 CHARGER OVERVIEW CONTROL PANEL OF CHARGER LEGEND OF LED SIGNALS WHILE CHARGING THE BATTERY battery charge activity Charge phase level short blink all LEDs charger is ready RED, YELLOW, GREEN YELLOW blinks bulk charge (Bulk) <...
  • Page 3 Intelligent pulse battery charger AP-17 INSTRUCTIONS FOR CONNECTING THE CHARGER WITH BATTERY lead (Pb) Battery charger AP-17 is suitable for charging only batteries from all together capacity of min. 10Ah (at 12V charger). Maximum capacity of charged battery is not limited. Battery charger AP-17 is for (we recommend that the charging time is not too long) battery systems up to 400Ah total capacity.

  • Page 4: Charging Programs

    Intelligent pulse battery charger AP-17 CHARGING PROGRAMS There are 3 jumpers inside the device, which are used to set charging programme. To do that, we first unplug device from socket. On bottom of the case, we unscrew 4 bolts and remove cover. There are 3 jumpers on the smaller power circuit board, which we use for setting charging programme and device operation mode.
  • Page 5 We can say that pulse charging technology works as transformer between battery chemistry and signals that commands the charge. Each battery is treated individually. Your info@eyra-elektronika.si experience with this charging method please send to CHARGING DIAGRAM...
  • Page 6 Intelligent pulse battery charger AP-17 HOW AND WHEN TO USE THE BURST CHARGING When charging an over-discharged battery which has a voltage below 6V (at 12V charger), the system does not start charging, even though the charger is properly connected. In this case, press START HELP button to activate forced charging .

  • Page 7: Troubleshooting

    Intelligent pulse battery charger AP-17 TROUBLESHOOTING Error Cause Solution The charger is connected to the mains, - there is no mains voltage 230Vac - ensure supply voltage power switch is ON. 230Vac LED signals not blinks. Battery is connected but the charger is - to low voltage on the battery (over- - use START HELP not charging, all LED blinking.

  • Page 8: Service And Guarantee

    Intelligent pulse battery charger AP-17 SERVICE AND GUARANTEE Eyra elektronika d.o.o. Gabrje pri Stični 45 SI-1295 Ivančna Gorica Slovenia Tel.++386 (0)1 7869-037 Fax++386 (0)1 7869-038 e-mail: info@eyra-elektronika.si http://www.eyra-elektronika.si GUARANTEE STATEMENT Guarantee conditions: The guarantee is valid for 24 months from the date of sale.
