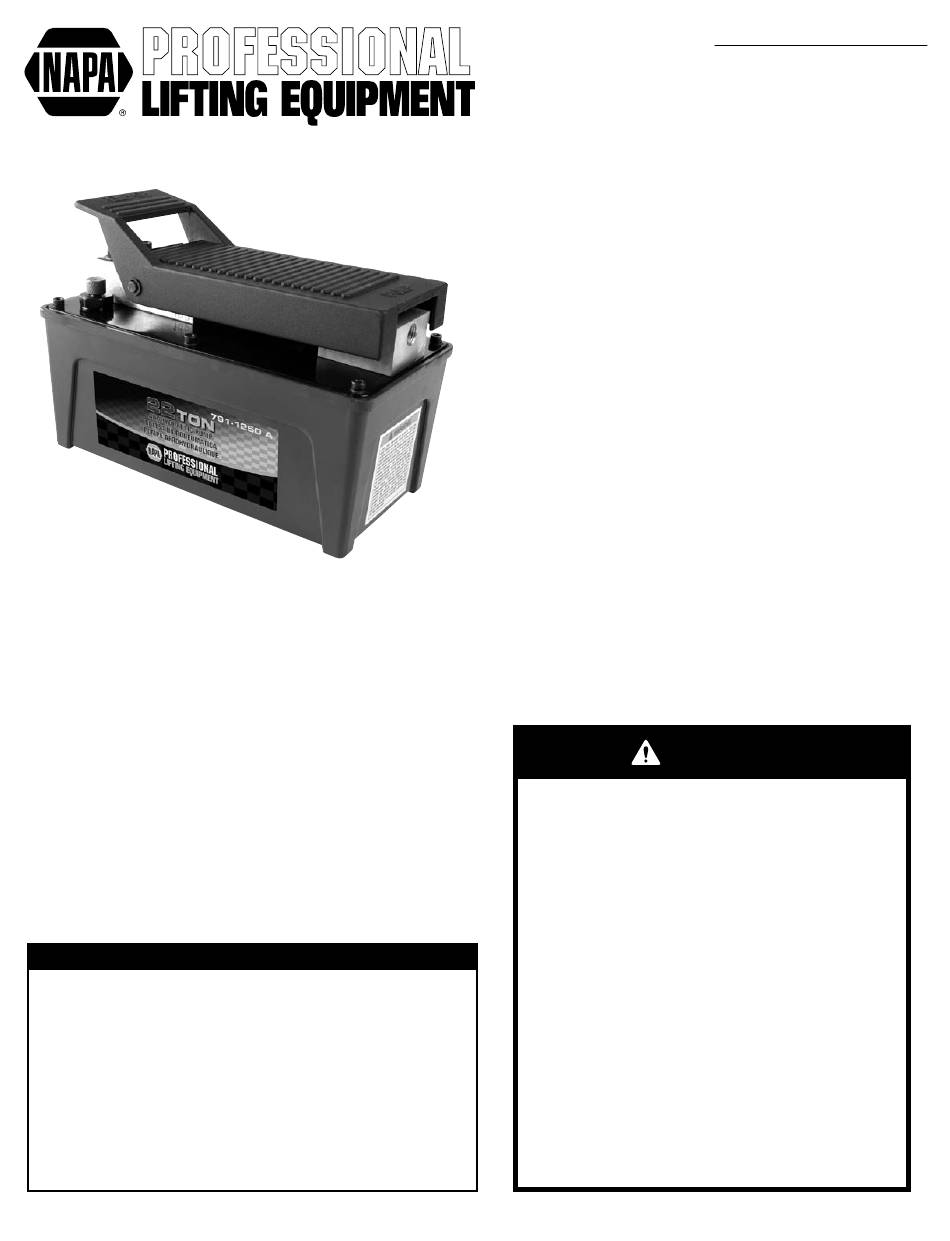

Napa 791-1250 A Operating Manual & Parts List

Air-hydraulic pump
Table of Contents

Advertisement

Available languages

Available languages

BEFORE USING THIS DEVICE, READ THIS
MANUAL COMPLETELY AND THOROUGHLY,
UNDERSTAND ITS OPERATING
PROCEDURES, SAFETY WARNINGS AND
MAINTENANCE REQUIREMENTS.
It is the responsibility of the device owner to make sure all personnel
read this manual prior to using the device. It is also the responsibility
of the device owner to keep this manual intact and in a convenient
location for all to see and read. If the manual or product labels are lost
or not legible, contact NAPA for replacements. If the operator is not
fluent in English, the product and safety instructions shall be read to
and discussed with the operator in the operator's native language by
the purchaser/owner or his designee, making sure that the operator
comprehends its contents.
SPECIFICATIONS
Max Output Pressure ................................................................ 10,000 PSI
Air Input Range ..................................................................... 90 to 175 psi
Usable Oil Capacity ..................................................................... 98 cu. in.
Flow Rate, No Load .............................................................. 42 cu. in/min.
Flow Rate, With Load .......................................................... 8.5 cu. in/min.
Air Thread Connection .................................................................1/4" NPT
Hydraulic Thread Connection.........................................................3/8 NPT
Valve Function ........................................................ Advance/Hold/Retract
Length . ..........................................................................................10.312"
Width . . ............................................................................................5.312"
Height . ............................................................................................7.312"
Net Weight ......................................................................................19 Lbs.
791-1250 A
• Read, study, understand and follow all instructions before
operating this device. • Wear eye protection that meets
ANSI Z87.1 and OSHA standards. • Do not use hoses in
systems exceeding 10,000 psi (700 bar). • The system
operating pressure must not exceed the pressure rating of
the lowest rated component in the system. • Avoid sharp
bends and kinks when routing hydraulic hoses. • Do not
drop heavy objects on hose. • Do not use the hydraulic
hose to carry a hydraulic component. • Keep hydraulic
equipment away from flames and heat. • Keep hose away
from sharp objects and eliminate abrasion. • Do not modify
or alter this device. • Inspect the system before each use.
• Replace questionable components immediately. • Use
only compatible fluids. • Make sure quick disconnect
fittings are correctly and completely fastened together.
Quick disconnect couplers should be hand tightened
only. Never use tools to tighten quick disconnect fittings.
• Never attempt to disconnect couplers while under system
pressure. • Be sure pressure system and setup are stable
before using. • This product contains chemicals known to
the State of California to cause cancer and birth defects
or other reproductive harm. Wash hands thoroughly after
handling. • Failure to heed these warnings may result in
serious or fatal personal injury and/or property damage.
1
Model # 791-1250 A
AIR-HYDRAULIC
WARNING
PUMP
11/11/11

Advertisement

Table of Contents
loading

Summary of Contents for Napa 791-1250 A

  • Page 1 If the manual or product labels are lost systems exceeding 10,000 psi (700 bar). • The system or not legible, contact NAPA for replacements. If the operator is not operating pressure must not exceed the pressure rating of fluent in English, the product and safety instructions shall be read to the lowest rated component in the system.
  • Page 2: Warning Information

    If the manual or product labels are lost or not legible, contact NAPA for replacements. If the operator is not fluent in English, the product and safety instructions shall be read to and discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator comprehends its contents.
  • Page 3 OPERATING MANUAL & PARTS LIST FOR 791-1250 A SETUP 1. Remove the plug fittings in the air and hydraulic access holes. The threaded air inlet hole is at the end of the pump where the word "pump" is on the foot pedal. The threaded hydraulic hole is at the opposite end of the pump. Remove any remnants of teflon tape or thread sealer from the holes before installing hoses or air disconnect fittings.
  • Page 4: Preventative Maintenance

    Refer to step #5 of the SETUP section of this manual for full details. 4. Check to see that all hydraulic and air components in the setup, including quick disconnect components, are properly and fully connected. WARRANTY Please contact your local NAPA Auto Parts Store for details on warranty. 791-1250 A 11/11/11...
  • Page 5 Model # 791-1250 A AIR-HYDRAULIC PUMP 791-1250 A 11/11/11...
  • Page 6 Model # 791-1250 A AIR-HYDRAULIC PUMP Index No. Part No. description Qty. Index No. Part No. description Qty. RS1250A01 Oil Reservoir Spring Gasket O-ring Filter Nylon gasket Oil pipe Valve Connector Steel ball Spring Valve block RS499847A Valve Assembly (incl. #47-51)
  • Page 7: Especificaciones

    Si el manual o las etiquetas del producto se han perdido o no ningún componente hidráulico. • Mantenga el equipo son legibles, comuníquese con NAPA por unos repuestos. Si el hidráulico lejos de las llamas y del calor. • Mantenga operador no domina el idioma inglés, el comprador/propietario o su...
  • Page 8: Información De Advertencia

    Si las etiquetas del manual o producto son ilegibles o no están en su lugar, deberá ponerse en contacto con NAPA para obtenerlas gratis. El comprador/ propietario o una persona designada deberá...
  • Page 9: Montaje

    MANUAL DEL FUNCIONAMIENTO Y LISTA DE PIEZAS PARA 791-1250 A MONTAJE 1. Quite los acoplamientos del tapón en los agujeros de acceso neumático e hidráulico. El agujero roscado de la entrada de aire está en un extremo de la bomba, donde se encuentre la palabra "bomba" en el pedal de pie. El agujero roscado hidráulico está en el extremo opuesto de la bomba.
  • Page 10: Diagnóstico De Averías

    4. Verifique que todos los componentes del montaje, incluyendo los componentes de desconexión rápida, estén conectados completamente y de forma adecuada. GARANTÍA: Para mayores informes sobre la garantía, comuníquese por favor con su tienda local de partes automotrices NAPA. 791-1250 A 11/11/11...
  • Page 11: Spécifications

    Si le guide ou des étiquettes du • Ne pas tirer sur le boyau hydraulique pour déplacer un produit sont perdus ou illisibles, communiquer avec NAPA pour les composant hydraulique. • Ne pas utiliser à proximité d’une remplacer.
  • Page 12 état et le ranger dans un endroit facilement accessible à tous ceux qui doivent le lire. Si le manuel ou les étiquettes de l'outil sont perdus ou illisibles, communiquer avec NAPA pour obtenir un remplacement. Si l’utilisateur ne parle pas couramment le français, les consignes de sécurité...
  • Page 13: Installation

    MANUEL DE FONCTIONNEMENT ET LISTE DE PIÈCES POUR 791-1250 A INSTALLATION 1. Retirer les bouchons des trous d’accès d’air et d’huile. Le trou fileté pour l’entrée d’air est du côté de la pompe où le mot « pump » est inscrit sur la pédale.
  • Page 14: Entretien Préventif

    4. Vérifier que tous les composants hydrauliques et pneumatiques de l’ensemble, y compris les composants à débranchement rapide, sont adéquatement et pleinement branchés. GARANTIE Pour plus de renseignements au sujet de la garantie, veuillez communiquer avec votre magasin de pièces automobiles NAPA local. 791-1250 A 11/11/11...
