Owner's Manual and Assembly Instructions
Model #: W302PJ W302PJ-OB
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
PJ MASKS SCOOTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJ MASKS SCOOTER Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rollplay PJ MASKS SCOOTER Series

Summary of Contents for Rollplay PJ MASKS SCOOTER Series

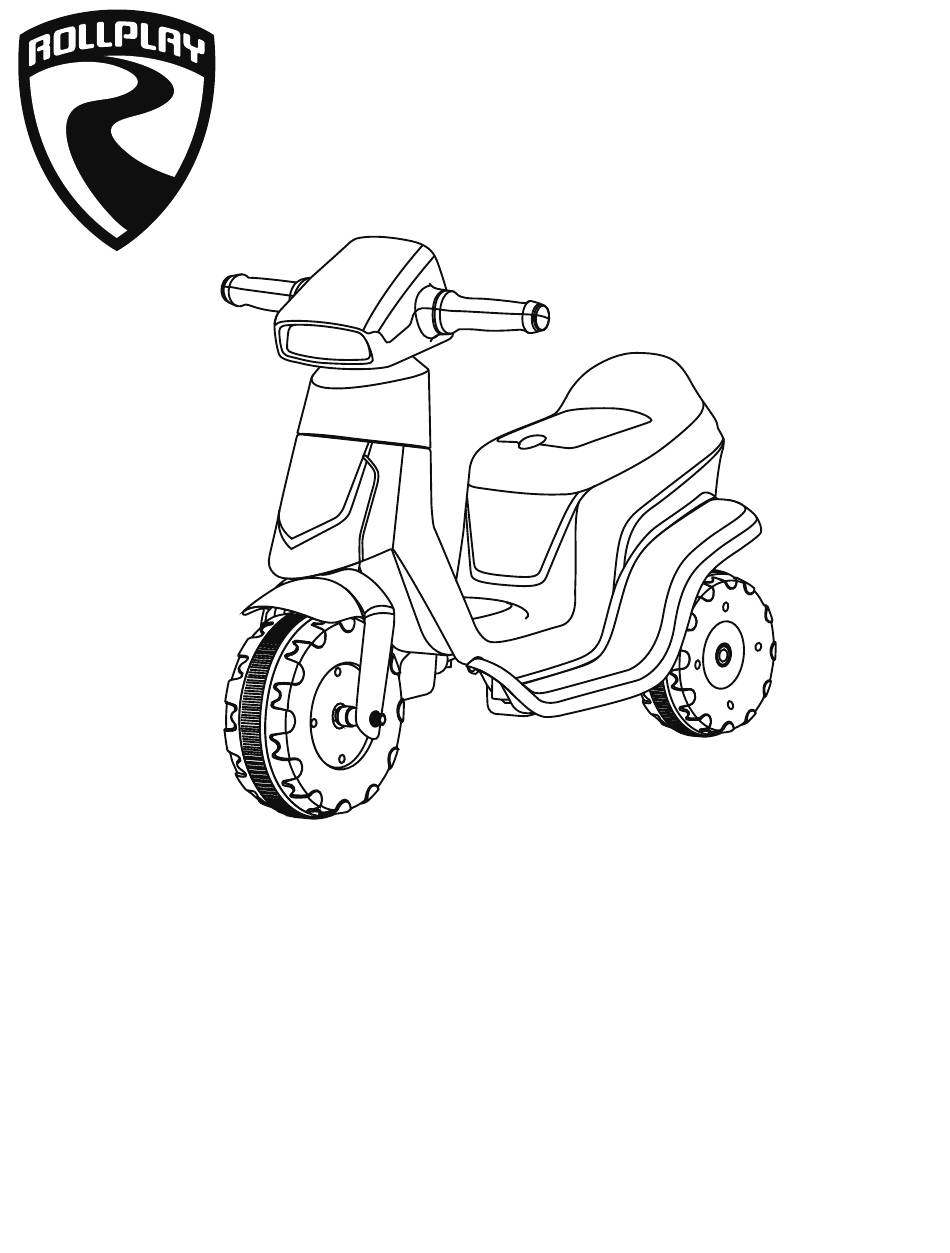

  • Page 1 ® PJ MASKS SCOOTER Owner’s Manual and Assembly Instructions Model #: W302PJ W302PJ-OB Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China. Styles and colors may vary.
  • Page 2 Introduction Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com as we may require proof of purchase. 1-888-982-9309 Read this entire manual to ensure proper assembly and safe operation of the vehicle.

  • Page 4: Table Of Contents

    Table of Contents Safety ............5 Parts ............7 Charging Instructions .......8 Attach Front Wheel ........9 Assemble the Left Rear Wheel .....10 Assemble the Right Rear Wheel ..11 .........12 Attach the Footrest Attach the Seat .........13 Connect the Battery .........14 Operation Instructions ......15 Maintenance ..........16 General Care ..........17...

  • Page 5: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 18 months old and weigh no more than 22.7 kg (50 lbs).
  • Page 6 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. •...

  • Page 7: Parts

    Parts 14.1 14.3 14.4 14.2 14.5 Body Manual Front Fork Assembly Battery13. Charger Front Cap Connector Blister pack Front Cap 14.1 Steering wheel screw Handlebars 14.2 Steering wheel nut Right footrest 14.3 Washer Left footrest 14.4 Cap nut Rear axle 14.5 Spring washer Gearbox 15.

  • Page 8: Charging Instructions

    Charging Instructions To Charge the Battery: 1. Unlock and remove the seat. 2. Unplug the battery connector (A) from the engine connector (B). 3. Connect the battery connector (A) to the battery charger connector (C) and plug the battery charger into 120V outlet.

  • Page 9: Attach Front Wheel

    Attach the Front Wheel 1. Insert the front fork assembly into the hole on the front of the scooter body. 2. Slide the Front Cap Connector onto the top of the front fork. Ensure that the holes on the cap are aligned with the holes on the front fork.

  • Page 10: Assemble The Left Rear Wheel

    Assemble the Left Rear Wheel 1. Locate the washers and rear wheels. Slide a washer onto the smooth, non-ridge side of the rear axle. 2. Slide the smooth end of the axle through slot on the back of the vehicle body. 3.

  • Page 11: Assemble The Right Rear Wheel

    Assemble the Right Rear Wheel 1. Slide the gearbox onto the right side of the rear axle. Ensure that the top cylin- der of the gearbox insert into the motor hole on the vehicle body. 2. Slide the rear wheel onto the rear axle. Ensure that the gear teeth on the wheel engage with the gear box.

  • Page 12: Attach The Footrest

    Attach the Footrest 1. Snap a foot rest onto either side of the vehicle body.

  • Page 13: Attach The Seat

    Attach the Seat 1. To release the seat, turn the seat lock to the unlock position and pull the seat up. 2. To install the seat, turn the seat lock to the unlock position. Then insert the hook on the seat into the slot on the vehicle. Press the seat into place, and turn the seat lock to the lock position.

  • Page 14: Connect The Battery

    Connect the Battery Once the battery has been charged for 24 hours before rst use, connect the battery back to the vehicle. 1. Unlock and remove the seat. 2. Connect the white engine connector to the white control wire connector. 3.

  • Page 15: Operation Instructions

    Operation Instructions Foot pedal To operate the vehicle, press the foot pedal down to drive forward. Release the foot pedal to stop. Use the handlebars to steer the scooter.

  • Page 16: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • time. • Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours.

  • Page 17: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service information on Page 21. •...

  • Page 18: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Loose wires or loose Ensure the battery connectors are connectors securely attached.

  • Page 19: Fcc Information

    FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 20: Service And Repairs

    Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.com Web: www.rollplay.com For a list of available replacement parts, please visit www.rollplay.com. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.com.

  • Page 21: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 23: Product Registration

    City: State: Zip Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Retailer Place of Purchase: Questions or comments? Contact us at www.rollplay.com or 1-888-982-9309...
