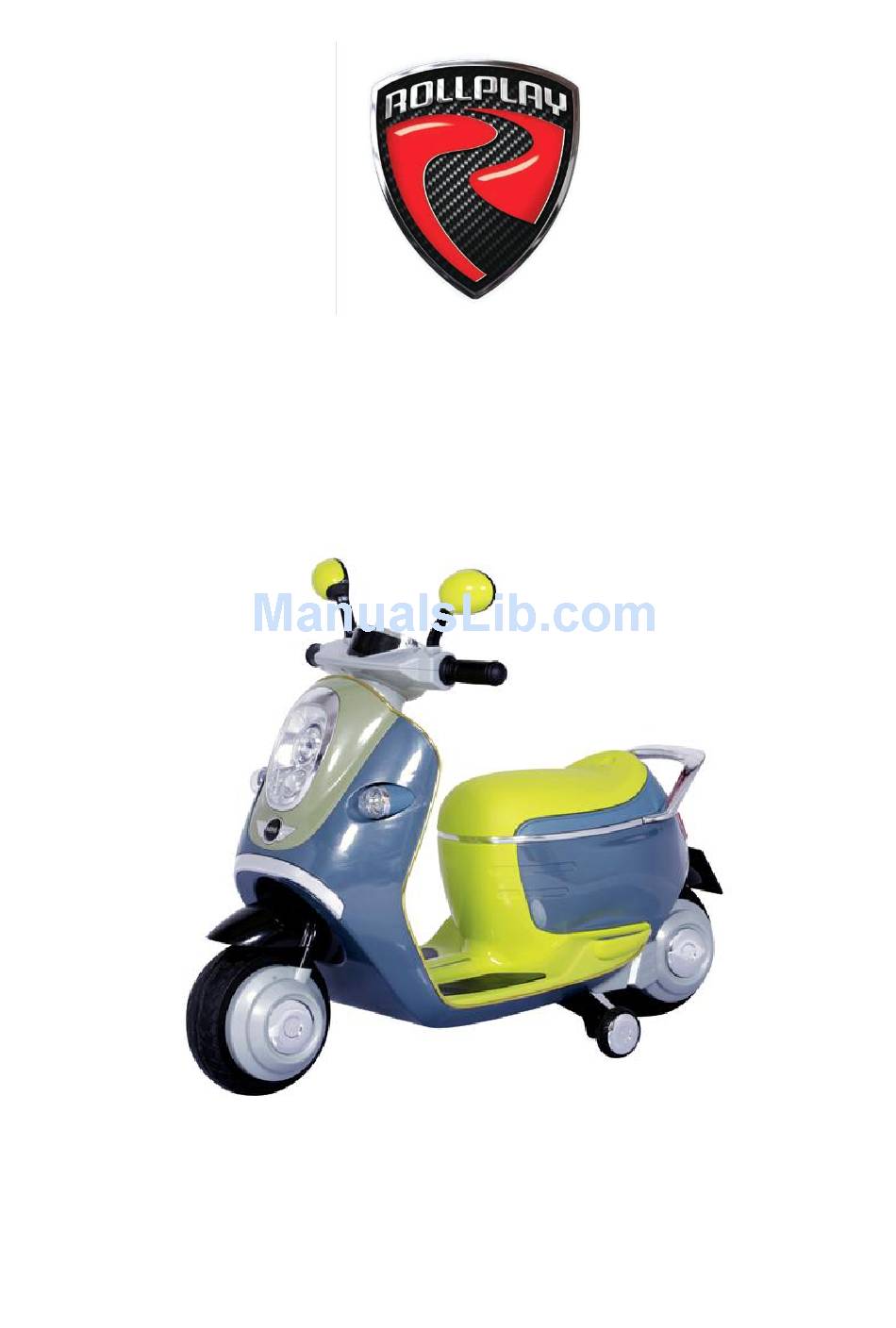

- Page 1 6V MINI e-Scooter (5F62B5D) Customer Service Guide MMXIV © Copyright ROLLPLAY...
- Page 2 Customer Service Guide Contents I) Check Battery …………………………..........3 II) Check Wiring Condition ……………………………..………………………. 6 III) Handlebar Replacement ……………………………………………..….…. 9 IV) Gearbox Replacement ……………………………………………………… 10 V) Warning Stickers ……………………………………………..…….………… 16 VI) Schematic diagram ……………..…………….…..….………..…………. 22 VII) Exploded View ………………………..…..….……….……..……..… 23 CAUTION : Disconnect the battery before proceeding with the below steps...
- Page 3 Customer Service Guide I) Check Battery Operation: Use a Flat head screwdriver, unlock and remove the seat. Locate the battery harness, unplug the connector then use a volt-meter to check the battery. Step (1) Turn and unlock this plastic knob Unlock position Step (2)
- Page 4 Customer Service Guide I) Check Battery Step (3) Unplug the battery connector underneath the seat Step (4)
- Page 5 Customer Service Guide IV) Gearbox Replacement Unscrew the gearbox cover at the right inner side then unplug the gearbox connector (white) Step (5) Keep components organized for re-assembly Step (6)
- Page 6 Customer Service Guide IV) Gearbox Replacement Use a screwdriver to push out the axle from metal frame Step (7) Pull the rear axle half way out from the other side, no need to remove it completely Step (8)
- Page 7 Customer Service Guide IV) Gearbox Replacement Step (9) Take out the rear wheel together with the gearbox Step (10) Replace the gearbox with a new/good one...
- Page 8 Customer Service Guide IV) Gearbox Replacement Step (11) Match the gears on the rear wheel and new gearbox Put the parts in place then align and slide the axle back to frame Step (12) Reverse above procedures to re-assemble the vehicle...
- Page 9 Customer Service Guide V) Warning Stickers Operation: Check and re-put the damaged warning stickers after repairing. At left inner side of front car body...
- Page 10 Customer Service Guide V) Warning Stickers At right inner side of front car body...
- Page 11 Customer Service Guide V) Warning Stickers Inside battery compartment...
- Page 12 Customer Service Guide V) Warning Stickers...
- Page 13 Customer Service Guide V) Warning Stickers Battery harness...
- Page 14 Customer Service Guide V) Warning Stickers Next to gearbox connector...
- Page 15 Customer Service Guide VI) Wiring Schematic...
- Page 16 Customer Service Guide VII) Exploded View...
